UPLED Undercabinet

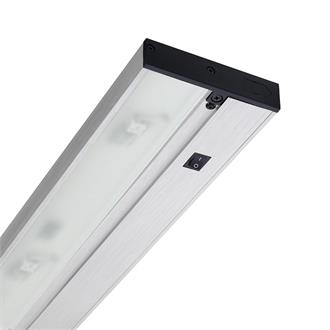

UPLED Pro-Series LED Undercabinet Discontinued
  • Overview
  • Specifications
Read More
Read Less
Size 9 IN, 14 IN, 22 IN
Shape Rectangular
Light Source LED - Static
Lumens 150 LM, 300 LM, 460 LM, 600 LM
CCT / LED Color 3000 K
CRI 80, 90
Product Type Undercabinet
Regulatory Listing cUL
Dimming Protocol Forward Phase, Reverse Phase
Color Bronze, White
Mounting Type Surface
Voltage Rating 120
Fixture Wattage 11, 3, 6, 8
Series UPLED09, UPLED14, UPLED22, UPLED30

Read More Read Less

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet UPLED.pdf (Discontinued) Pro-Series LED Undercabinet - UPLED (Discontinued) 6/3/2020 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P5945.pdf UDWMOC/UDWMOC RS Installation Instructions 11/6/2018 View
    Installation Instructions P5946.pdf Occupancy Sensor Installation Instructions 5/5/2017 View
    Installation Instructions P3217.pdf (Discontinued) UPLED Installation Instructions (Discontinued) 5/5/2017 View
    Installation Instructions P5945.pdf (Discontinued) Direct Wire Module Installation Instructions (Discontinued) 5/1/2017 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures JUN_5310_Pro-Series UC_Brochure_0520-lo.pdf PRO SERIES BROCHURE 5/27/2020 View
