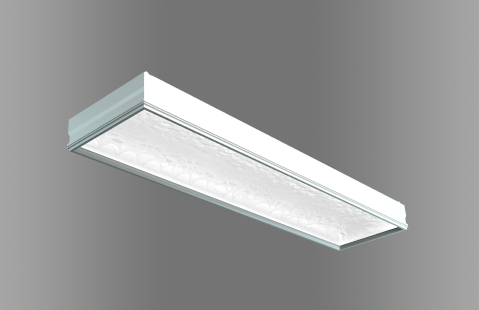

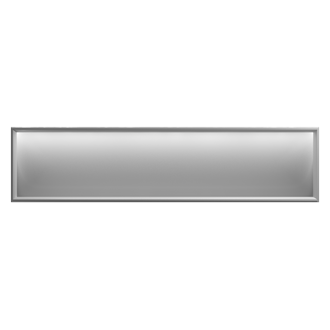

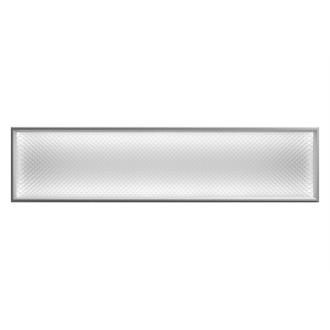

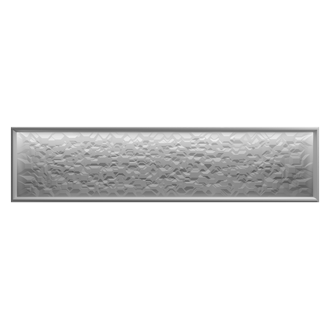

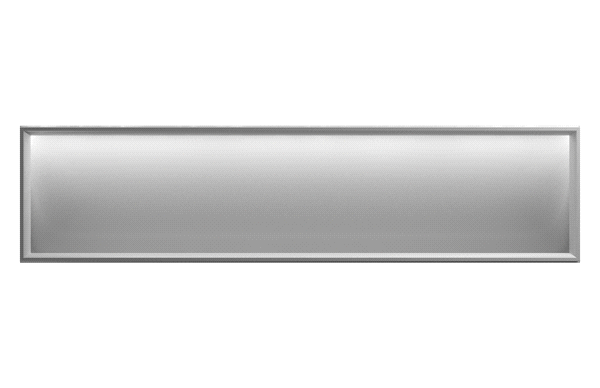

Chisel™ Recessed Luminaire 1x4

CHSL Architectural Troffer with Static White & Tunable White
    Tunable WhiteLow UGR
  • Overview
  • Specifications
Read More
Read Less
Size 1x4
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White
Lumens 500 LM, 1000 LM, 1250 LM, 1500 LM, 1750 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 5000 LM, 6000 LM, 7000 LM, 8000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Troffer
Compliance Listing Chicago Plenum, Declare, Low UGR
Environmental Listing Damp Location
Regulatory Listing UL
Dimming Protocol 0-10V, DALI, DMX
Mounting Type Recessed
Fixture Wattage 10.4, 10.7, 11.5, 12.6, 13.1, 13.2, 13.4, 14.7, 15.8, 16, 16.5, 17.1, 17.7, 18, 18.3, 18.6, 19.1, 19.4, 19.5, 20.4, 21, 21.1, 21.5, 21.6, 21.7, 21.9, 22.2, 22.9, 23.9, 24.8, 25.2, 25.3, 26.3, 26.4, 26.8, 27.3, 27.4, 27.9, 28, 29.8, 30, 30.2, 30.4, 30.6, 30.9, 31.2, 31.5, 32, 32.3, 33.5, 33.6, 34.1, 34.9, 35.4, 35.5, 36.3, 36.5, 36.8, 37.2, 37.6, 38.6, 39.1, 40.2, 40.5, 41.4, 7.4, 8.1, 8.8, 8.9, 9
Voltage Rating 120, 277, 347
Series CHSL
