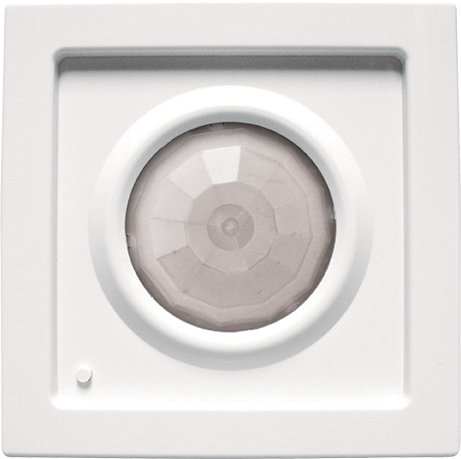

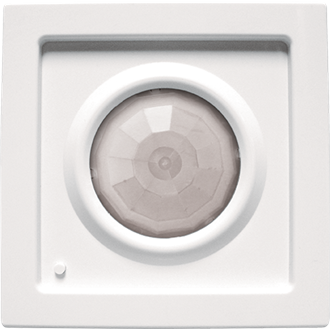

SBR Series

Fixture Embedded - Small Box Sensors
  • Overview
  • Specifications
Read More
Read Less
Control Device Type Daylight Sensor
Mounting Type Recessed
Control Protocol 0-10V
Product Type Sensor
Color Black, White
Finish Gloss
Voltage Rating 208, 347, 347-480, 480
Environmental Listing High Humidity
Regulatory Listing cUL, UL
Series SBR
Application Type Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet SBR 10 Small Box Extended Range 360 PIR 9/6/2017 View
    Spec Sheet SBR 10 2P Small Box Extended Range 360 PIR 2 Pole 9/6/2017 View
    Spec Sheet SBR 10 2P AO Small Box Extended Range 360 PIR 2 Pole Alternating Off 9/6/2017 View

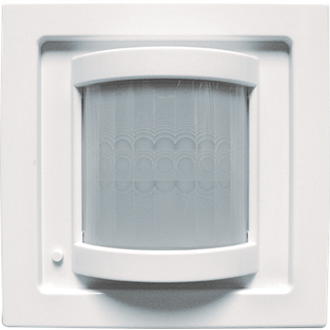

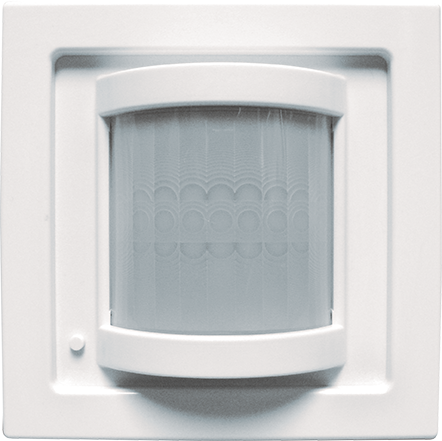

    Spec Sheet SBR 50 Small Box Aisle Way PIR 9/6/2017 View

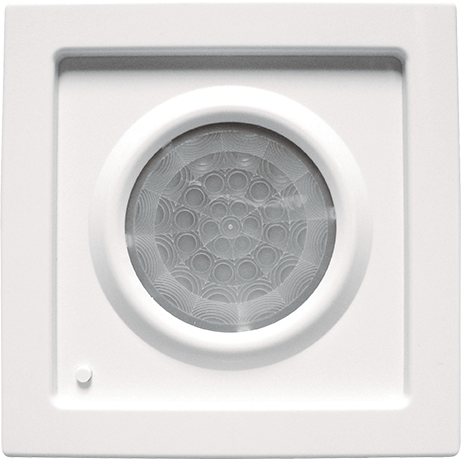

    Spec Sheet SBR 6 Small Box High Bay 360 PIR 9/6/2017 View
    Spec Sheet SBR 9 Small Box Standard Range 360 PIR 9/6/2017 View
    Spec Sheet SBR PDT 10 Small Box Extended Range 360 Dual Tech 9/6/2017 View
    Spec Sheet SBR PDT 9 Small Box Standard Range 360 Dual Tech 9/6/2017 View
    Spec Sheet SBR Series.pdf Line Voltage, Fixture/Embedded Mount Occupancy Sensors Spec Sheet 7/13/2020 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IC7-002.pdf RM,CM,CMB Ceiling, Recessed & Fixture Mount, Low Voltage Occupancy Sensors Ins Programming Sheet. 1/8/2024 View
