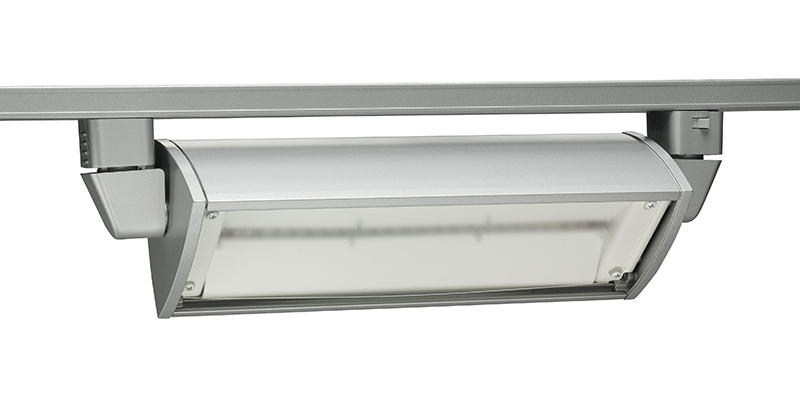

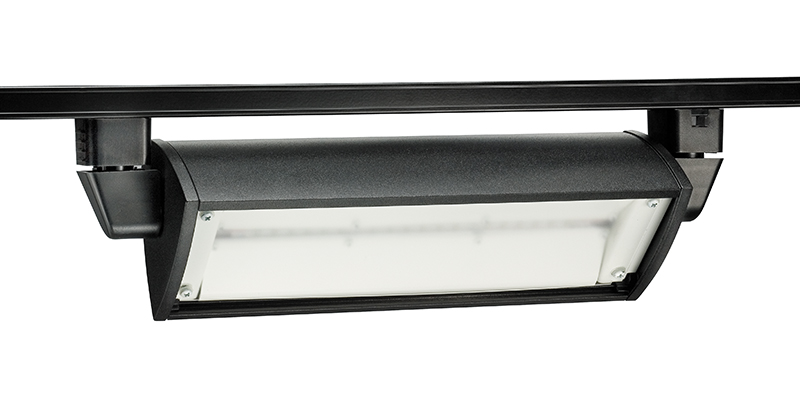

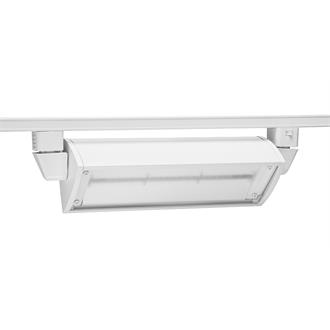

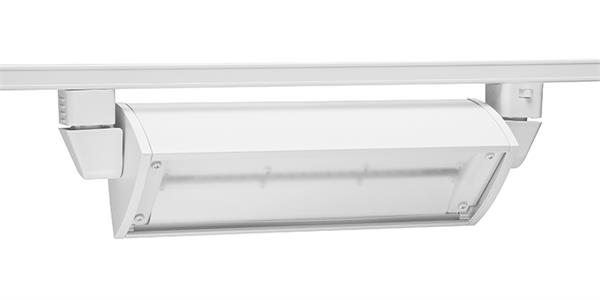

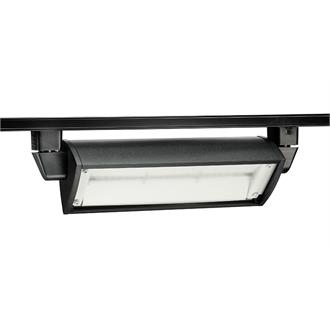

T256L Trac Head

Trac-Master® Wall Wash, Flood LED Trac Head
    Buy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
The T256L Series wall wash/flood trac fixture delivers a powerful and uniform beam of light, consuming less energy than a similar CMH fixture and offering up to 4-times the rated life. Its shallow profile enables it to blend easily with the trac. Operating at only 35W, it delivers up to 2,223 lumens, yielding an efficacy of up to 64 lm/W. Its unique thermal management design provides a maintenance-free 50,000-hours of service life at 70-percent lumen maintenance. Available in 4 color temperatures, this wall wash/flood fixture is compatible with all Juno® line-voltage trac.
Read More
Read Less
Light Source LED - Static
Lumens 2000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80
Product Type Track Head
Compliance Listing BAA and BABA
Dimming Protocol Electronic Low Voltage, Reverse Phase
Color Black, Silver, White
Mounting Type Track/Monopoint
Voltage Rating 120
Fixture Wattage 35
Track Mounting Adapter HTYPE, JTYPE
Series T256L

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet D1_6_5.pdf Juno Trac-Master® 35W LED Wall Wash/Flood 10/9/2024 View
    Spec Sheet T256L-DIM.pdf T256L Dimmer Compatibility Sheet 1/9/2018 View

    Design Select
    Take Me There
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    1 - 1 of results

    Description Report Design Tools
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P2918.pdf T256L and T257L Installation Instructions 5/5/2017 View
    Installation Instructions P4677_H-Type Adapter.pdf Installation Instructions for H-Type Adapter 8/15/2018 View
    Installation Instructions P6300.pdf JUNO Trac adapter 2/7/2023 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures Juno Trac-Master LED Wall Wash Brochure.pdf Juno Trac-Master LED Wall Wash Brochure 2/20/2024 View
    Sell Sheet Juno Track Alternate Adapter Sell Sheet.pdf Juno® Track Fixtures with Alternate Adapters Sell Sheet 12/26/2024 View
