TC4RAL 700LM Remodel Housing

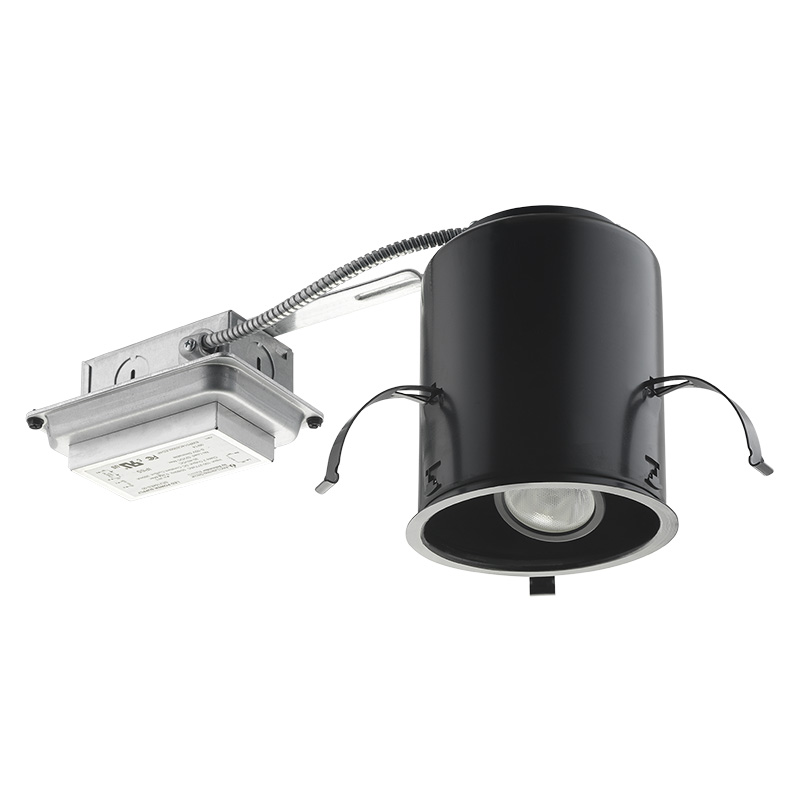

LED 4in Round Internally Adjustable Remodel Housing
    CA Title 24/JA8
  • Overview
  • Specifications
Juno® 4-inch internally adjustable, 1000 lumen LED, non-IC remodel housings cater to a wide range of application possibilities with just a change out of trims. Offering internal adjustability of up to 35° vertical and 360° rotation using the patent pending adjustable light engine modules, light can be directed where needed for downlighting or accent lighting applications. A stunning collection of round and square trims, including downlights, adjustables and lensed along with industry exclusive sloped ceiling trims are easily changed out in the field to adapt to future design needs.
Read More
Read Less
Size 4 IN
Shape Round
Light Source LED - Static
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 90
Product Type Housing
Compliance Listing CA Title 24
Environmental Listing Non-IC
Dimming Protocol 0-10V, Forward Phase
Mounting Type Recessed
Voltage Rating 120-277
Fixture Wattage 16.6
Series TC4RAL

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet G1_7_77.pdf Juno IC4RAL, TC4RAL (07LM) Recessed Housing, Angle Cut Trims 12/3/2024 View
    Spec Sheet G1_7_78.pdf Juno IC4RAL (07LM), TC4RAL (07LM) Recessed Housing, Downlight Trims 12/3/2024 View
    Spec Sheet G1_7_79.pdf Juno IC4RAL, TC4RAL (07LM) Recessed Housing, Slot Adjustable Trims 7/18/2019 View
    Spec Sheet G1_7_80.pdf Juno IC4RAL (07LM), TC4RAL (07LM) Recessed Housing, Lensed Trims 9/8/2020 View
    Spec Sheet G1_7_81.pdf Juno IC4RAL, TC4RAL (07LM) Recessed Housing, Wall Wash Trims 12/3/2024 View
    Spec Sheet G1_7_82.pdf Juno IC4RAL, TC4RAL (07LM) Recessed Housing, Square Trims 12/3/2024 View
    Spec Sheet G1_7_83.pdf Juno IC4RAL, TC4RAL (07LM) Recessed Housing, Slope Ceiling Trims 12/3/2024 View
