IC1RLED 900LM Remodel Housing

LED 4in Round Remodel Housing
    CA Title 24/JA8
  • Overview
  • Specifications

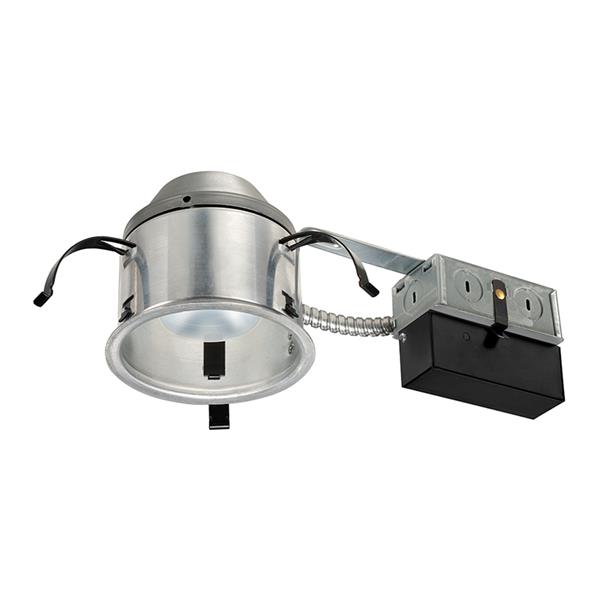

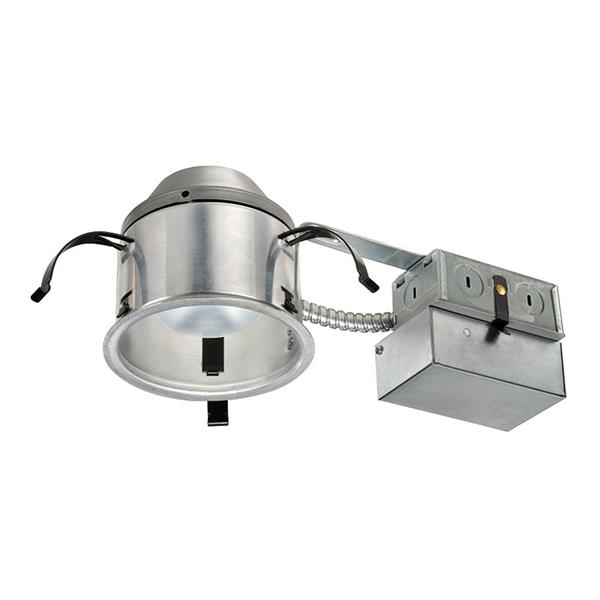

The Juno® IC1RLED 900LM 4-inch downlight features a dedicated LED, remodel housing with integral light engine for applications where the backside of the ceiling is not accessible. The LED housing is designed to provide 50,000-hours of life and is compatible with many standard Juno trims. Shallow design allows for a fit in 2 x 6 construction. The fixture is secured in place by factory-installed remodel springs and can be completely covered with insulation. When used with supplied Air-Loc® Gasket (ALG) kit, the downlight stops infiltration and exfiltration of air, reducing heating and cooling costs.
Read More
Read Less
Size 4 IN
Shape Round
Light Source LED - Static
Lumens 900 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 90
Product Type Housing
Compliance Listing CA Title 24, JA8, ROHS
Environmental Listing Damp Location, IC
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase, Reverse Phase, Triac
Mounting Type Recessed
Voltage Rating 120, 120-277
Fixture Wattage 11.5
Series IC1RLED

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet G1_7_43.pdf Juno IC1RLED (G4 09LM) recessed Housing, Open Trims 12/3/2024 View
    Spec Sheet G1_7_44.pdf Juno IC1RLED (G4 09LM) Recessed Housing, Hyperbolic Trims 9/15/2020 View
    Spec Sheet G1_7_45.pdf Juno IC1RLED (G4 09LM) Recessed Housing, Lensed Trim 12/3/2024 View
    Spec Sheet G1_7_46.pdf Juno IC1RLED (G4 09LM) Recessed Housing, Wall Wash Trims 12/3/2024 View
    Spec Sheet G1_7_47.pdf Juno IC1RLED (G4 09LM) Recessed Housing, Square Trims 12/3/2024 View
    View Product
    View Now
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    1 - 1 of results

    Description Report Design Tools
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P3060.pdf Juno IC and TC Remodel Recessed Housing Installation Instructions 3/20/2017 View
    Installation Instructions P3774.pdf Juno 4" Remodel Housing Template and Installation Instructions 5/9/2018 View
    Installation Instructions P4471.pdf Juno IC1RLED Installation Instructions 7/26/2017 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Sell Sheet Juno 4in IC 900 Lumen LED Downlights Sell Sheet.pdf 4in IC 900 Lumen LED Downlights Sell Sheet 10/23/2020 View
    Sell Sheet Juno Recessed Hyperbolic Trims Sell Sheet 17HYP2 Juno Downlighting Trim 8/6/2020 View
