Lithonia Lighting
Lithonia Lighting

JCBL

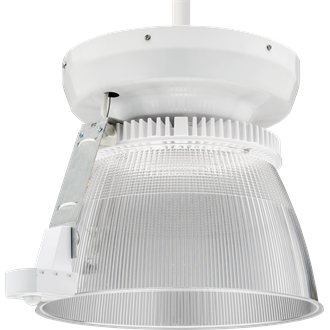

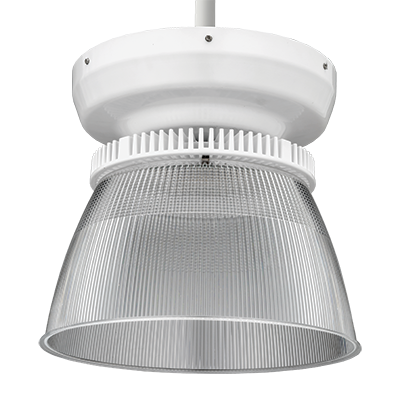

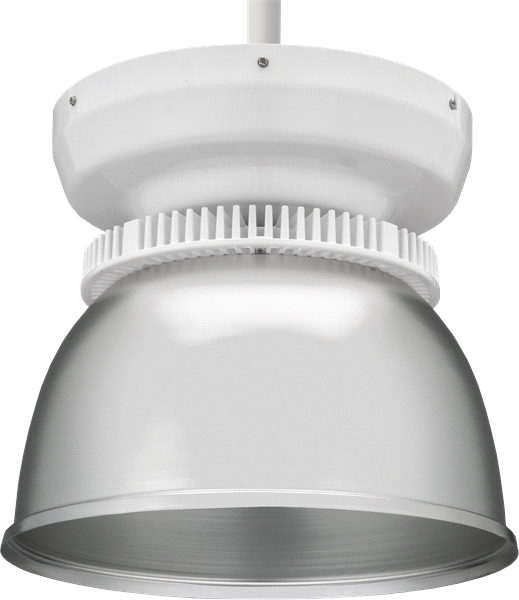

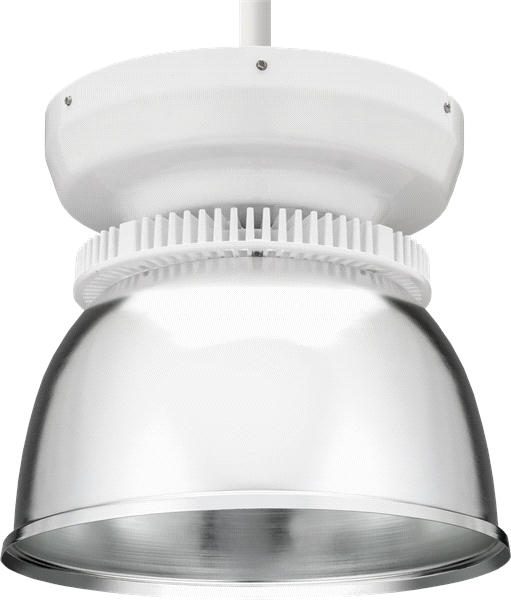

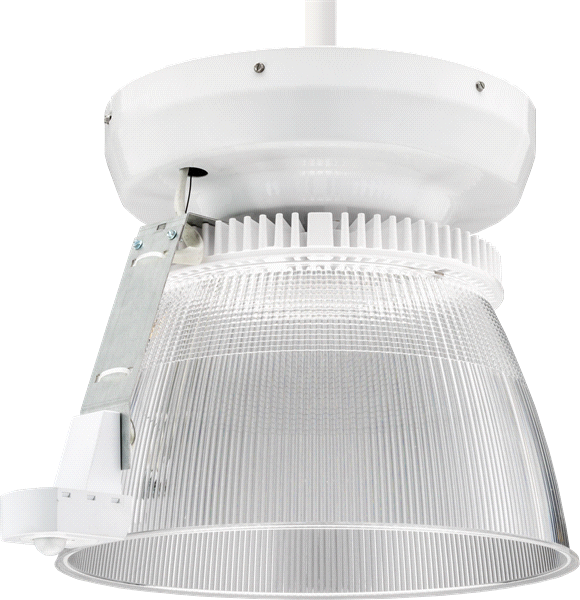

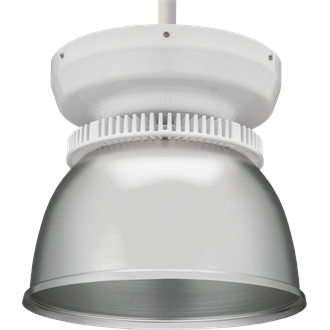

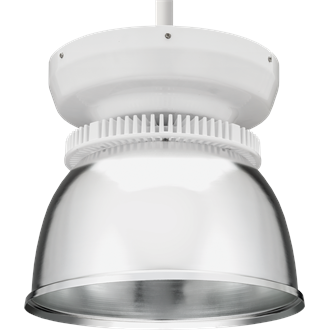

LED High Bay
    DLC Premium
  • Overview
  • Specifications
Read More
Read Less
Shape Round
Light Source LED - Static
Lumens 9000 LM, 12,000 LM, 15,000 LM, 18,000 LM, 24,000 LM, 30,000 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 70, 80, 90
Product Type High Bay
Compliance Listing DLC Premium, DLC Standard
Environmental Listing Dry Location
Regulatory Listing CSA
Dimming Protocol 0-10V
Fixture Wattage 100, 130, 160, 200, 60, 80
Voltage Rating 120, 120-277, 208, 230, 240, 277, 347, 347-480, 480
Color Silver
Mounting Type Pendant, Suspended
Series JCBL

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Lithonia-JCBL-JCBL-Round Bay-Round-LED.pdf Lithonia-JCBL-JCBL-Round Bay-Round-LED 1/31/2024 View
