L7X

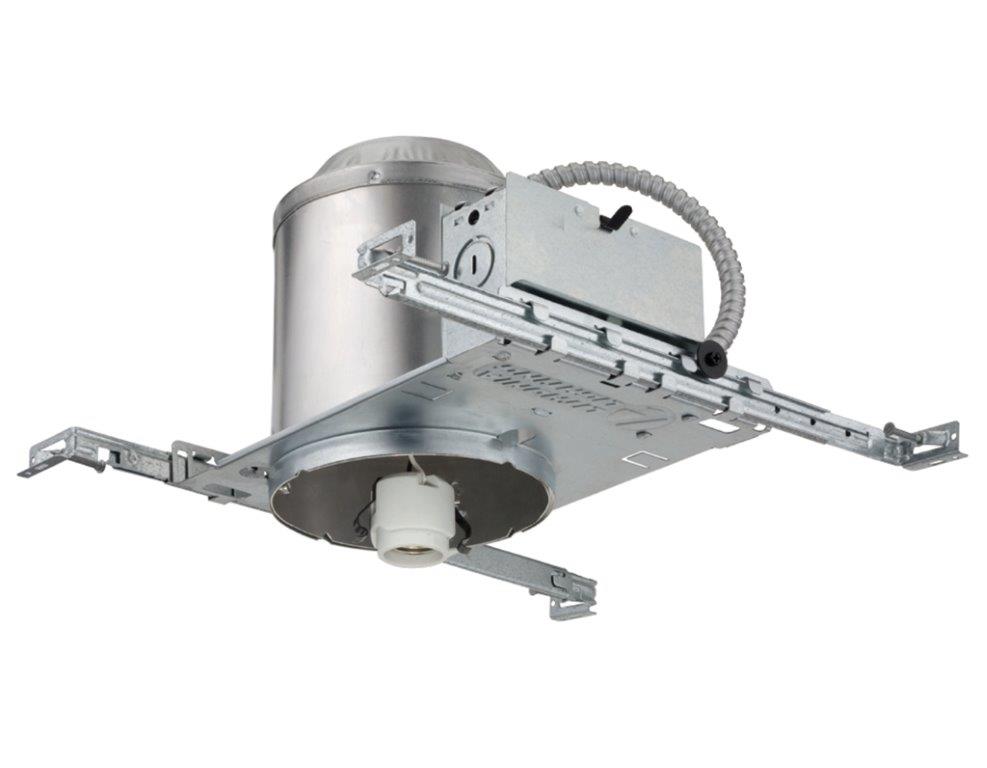

6" Incandescent New Construction Housing
  • Overview
  • Specifications

Recessed incandescent housings for 2x8 new construction. Approved for direct burial in insulation and all ceiling and wiring types.


Construction

L7X: Air-tight, galvanized steel pan with aluminum can and junction box with four built-in ROMEX® clamps and ground wire. Rated for 90°C. Factory-installed captive bar hangers that span up to 24 o.c. and feature stepped shank nail with integral T-bar locks. Two locking screws hold fixture position. Socket clips to trim to ensure proper and consistent lamp position.

Trim retention (clips): Retaining clips riveted to top of reflector hold trim inside housing.

Trim retention (TOR): Two side-mounted torsion springs on the trim and two receiving brackets in the can, ensure a consistently tight fit with the ceiling.

Suitable for ceilings up to 1-1/2" thick.

Read More
Read Less
Size 6 IN
Shape Round
Light Source Halogen, Incandescent, LED - Static
Product Type Downlight
Environmental Listing IC
Regulatory Listing CSA, cUL, UL
Fixture Wattage Not Applicable
Voltage Rating 120, 277
Mounting Type Recessed
Series L7XLED, L7X
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet L7X.pdf 6" Incandescent New Construction Housing 12/11/2023 View
    Spec Sheet Lithonia-Contractor Select-L7X-Housing-New Construction.pdf Contractor Select L7X Housing and Trim 8/28/2023 View
    Spec Sheet 6" LED New Construction Housing (Discontinued) 6" LED New Construction Housing (Discontinued) 9/28/2020 View
    View Product
    View Now
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    1 - 1 of results

    Description Report Design Tools
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions L7X Installation Instruction Sheet L3 Installation Instruction Sheet 11/7/2012 View
