FAL

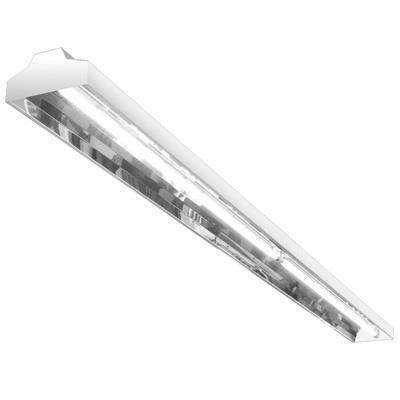

Aisle Lighter Fluorescent High Bay
  • Overview
  • Specifications

FAL provides peak optical performance with maximum fixture efficiency for aisle lighting in industrial, commercial and retail applications. The unique COOL RUNNING™ technology provides trouble-free operation in ambient spaces up to 65°C. T5 is ideal for mounting heights up to 50', T8 for mounting heights up to 35' in climate-controlled spaces. Using high performance optics will reduce the number of fixtures required and maximize energy savings. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.


Construction

Heavy-duty code-grade steel construction to withstand the most demanding environments. Optical system fully encased inside the steel housing to protect components during shipment and installation. Sockets include secure positioning rotating collars with enclosed contacts for positive lamp retention and safety. Access plate on the back of the channel housing allows quick and easy wiring. Tool-less ballast and wiring access. Fixtures are joined together in the field with rigid internal brackets using eight screws. All assemblies require two support points (see accessories).

Finish: Channel is high-gloss, white baked enamel: five-stage iron phosphate pretreatment ensures superior paint adhesion and rust resistance.

Optics

Optical system provides focused distribution with no uplight and spacing criteria of 0.9. Reflectors are high-performance, 95% total reflectance, segmented optics utilizing highly reflective specular aluminum warranted for 25 years.

Electrical

Thermally protected, resettling Class P, HPF, A+ sound rated electronic ballast. AWN, TFM or THHN wire used throughout. Rated for required temperatures.

Installation

Suitable for suspension by chain or cable mounting. (One support recommended for each 4' of fixture).

Read More
Read Less
Size 4FT
Shape Rectangular
Light Source Fluorescent
Lumens Not Applicable
CCT / LED Color 3000 K, 3500 K, 5000 K
CRI 85
Product Type High Bay
Environmental Listing Damp Location, Dry Location
Regulatory Listing CSA, UL
Fixture Wattage 32, 54
Voltage Rating 120, 120-277, 277, 347, 480
Color White
Mounting Type Suspended
Series FAL, FAL12, FAL16, FAL4

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Aisle lighter; 8', 12' and 16' length; T5HO or T8 Aisle lighter; 8', 12' and 16' length; T5HO or T8 7/1/2014 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    1 - 1 of results

    Description Report Design Tools
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Acrylic Compatibility Acrylic and Polycarbonate Compatibility To be printed with all products containing acrylic or polycarbonate material 12/14/2023 View
    Acrylic Compatibility Acrylic-Polycarbonate-Compatibility Acrylic and Polycarbonate Compatibility Information 12/19/2023 View
    Installation Instructions MHYTGB Installation Instructions.pdf MHYTGB gripple - toggle - Installation Instructions 3/7/2015 View
  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet FAL replacement parts list.pdf FAL replacement parts 3/7/2015 View
    Replacement Part Spec Sheet HSD36 Specifciation Drawing.pdf HSD36 Chain hanging option Spec drawing 3/7/2015 View
    Replacement Part Spec Sheet WGFAL REPLACEMENT KIT.pdf FAL wire guard spec drawing 3/7/2015 View
