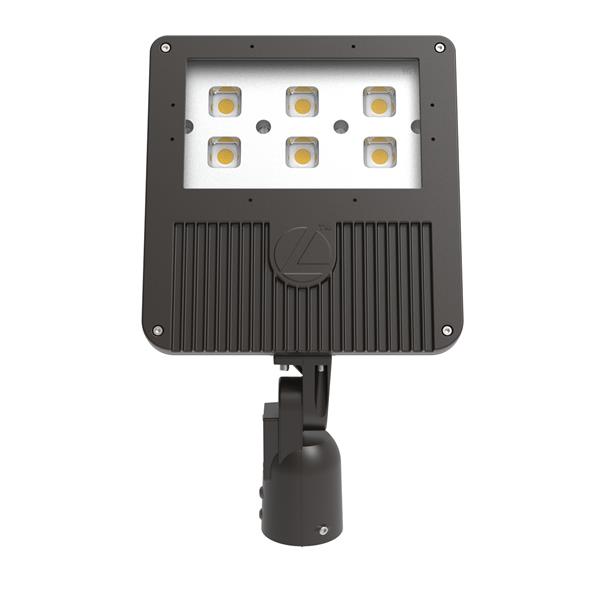

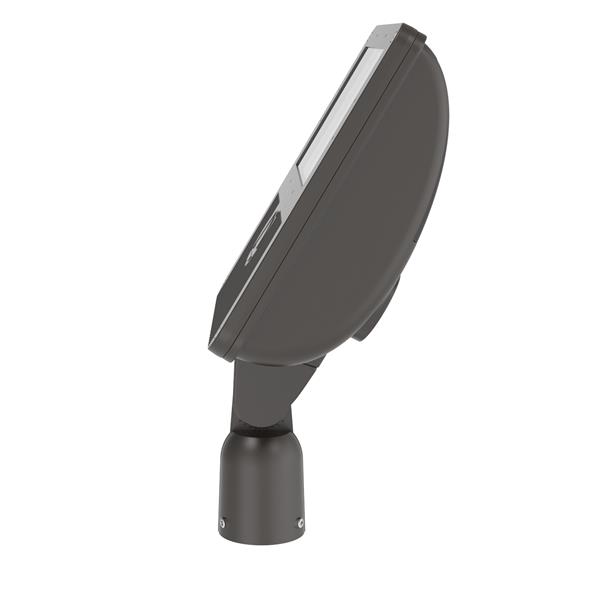

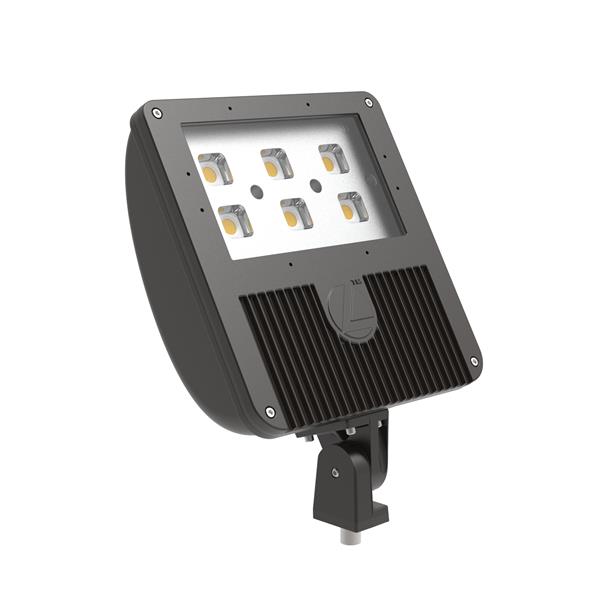

D-Series Flood Size 3
- Overview
- Specifications

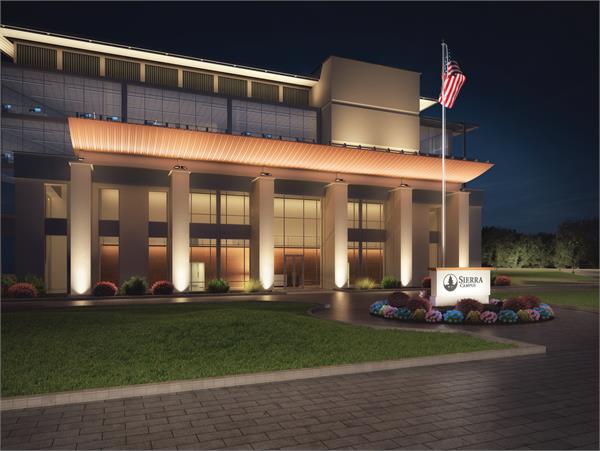

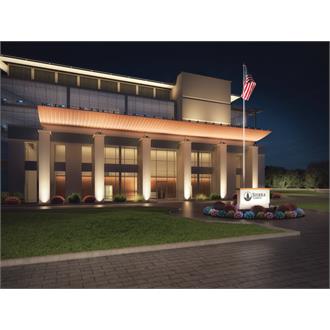

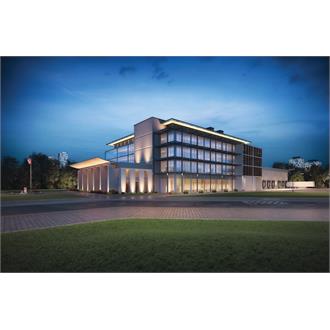

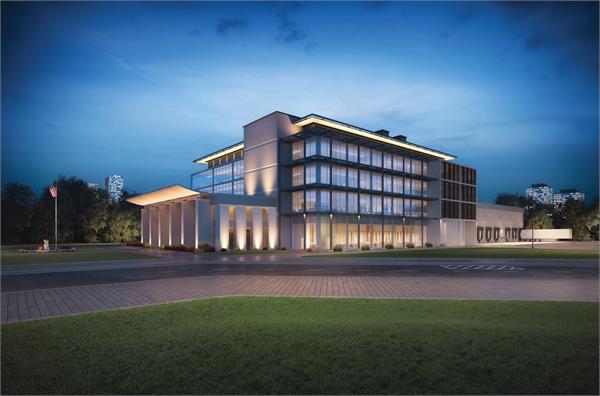

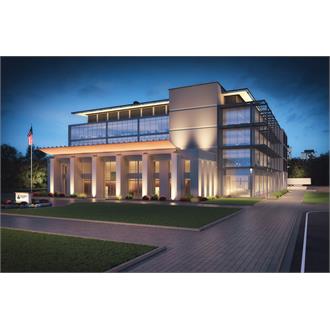

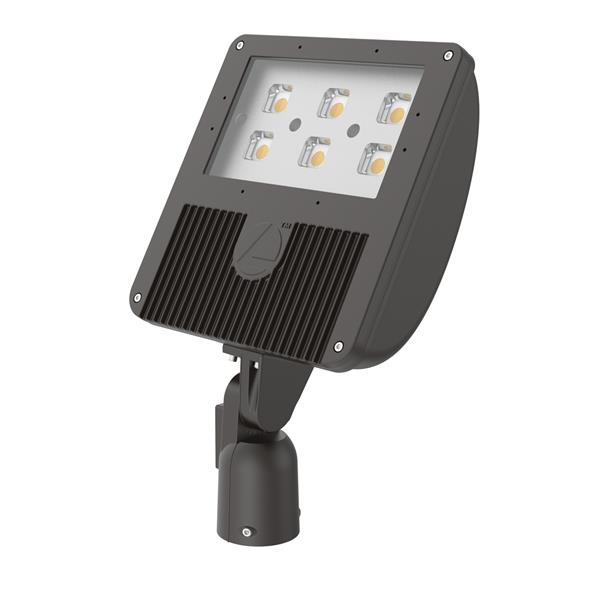

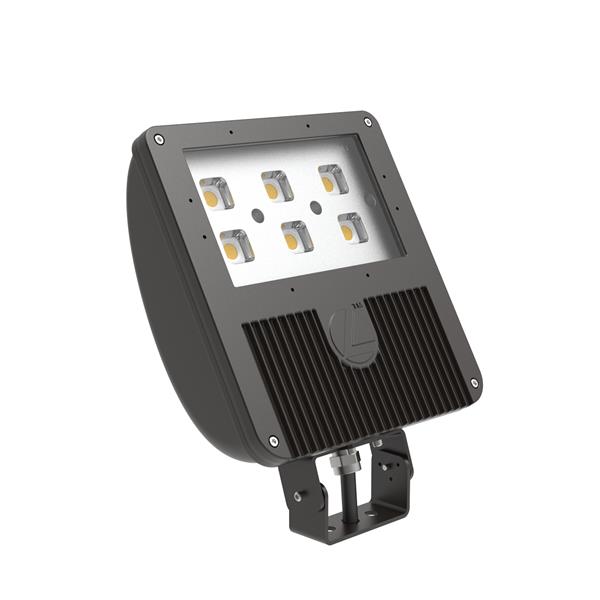

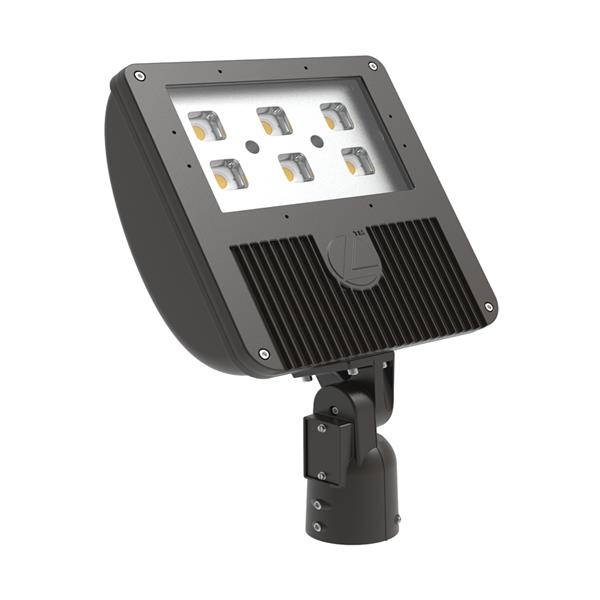

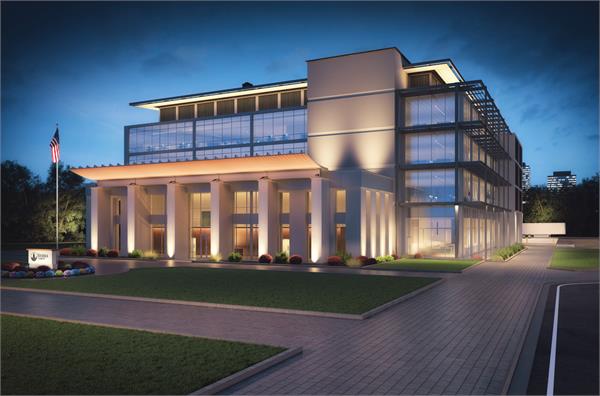

D-Series makes floodlighting design easy with its seven unique distributions and a broad range of aiming for precise target illumination. The DSXF3 provides maximum illumination power for higher mounting heights and larger areas requiring longer throw and maximum spread, for use on applications such as large monuments, façades, and large area lighting. DSXF3 provides superior illumination using precision optics that offer vast design capabilities all while delivering significant energy savings and long life.
| Shape | Rectangular |
| Light Source | LED - Static |
| Lumens | 12,000 LM, 13,000 LM, 14,000 LM, 16,000 LM, 17,000 LM, 18,000 LM, 19,000 LM, 20,000 LM, 21,000 LM, 22,000 LM, 23,000 LM, 24,000 LM, 25,000 LM, 26,000 LM, 27,000 LM, 28,000 LM |
| CCT / LED Color | 3000 K, 4000 K, 5000 K |
| CRI | 70 |
| Product Type | Floodlight |
| Compliance Listing | BAA and BABA, DLC Premium, DLC Standard |
| Environmental Listing | IP66, Wet Location |
| Regulatory Listing | CSA, NOM |
| Dimming Protocol | 0-10V |
| Fixture Wattage | 107, 111, 115, 120, 138, 145, 150, 165, 169, 170, 175, 180, 189, 190, 195, 205 |
| Voltage Rating | 120, 120-277, 208, 240, 277, 347, 480 |
| Color | Beige, Black, Bronze, Gray, Green, Silver, White |
| Mounting Type | Knuckle, Tenon Slipfitter, Yoke |
| Series | DSXF3 |
Read More Read Less
-
