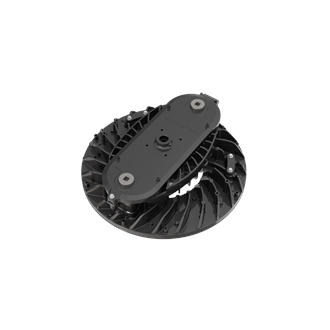

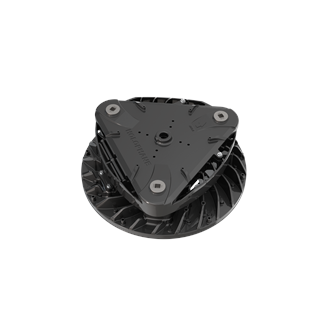

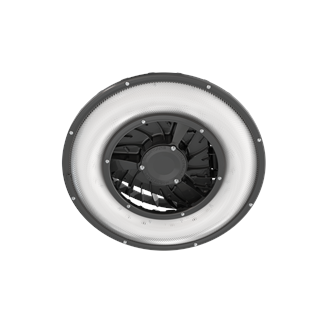

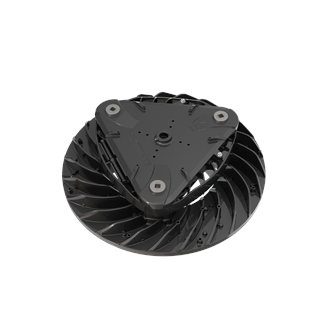

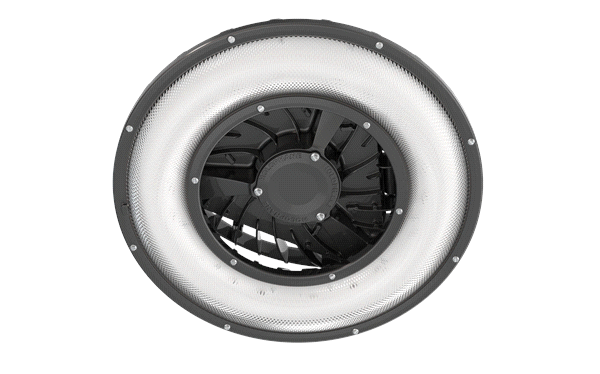

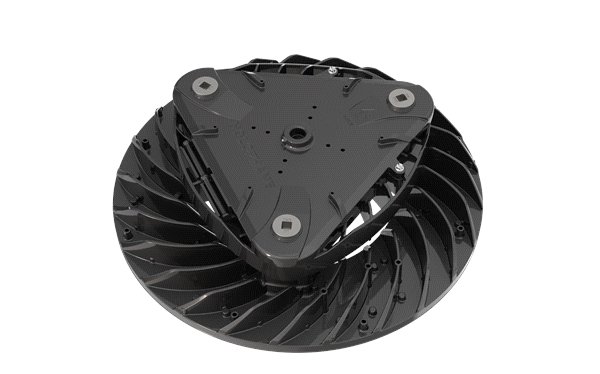

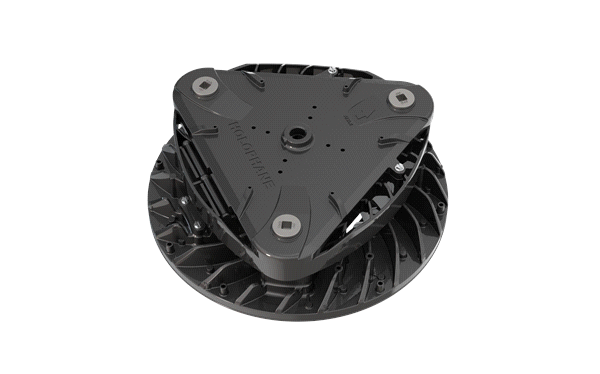

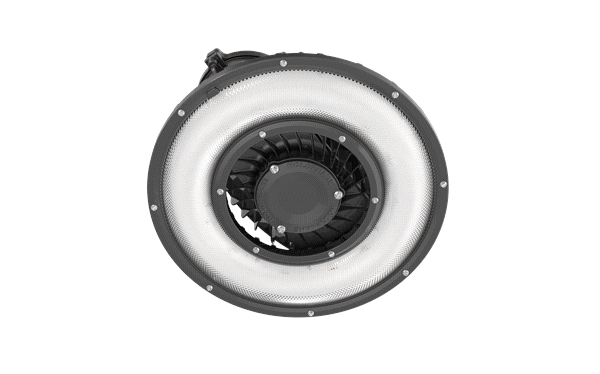

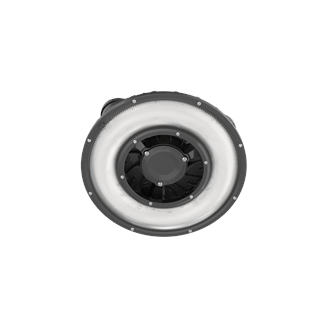

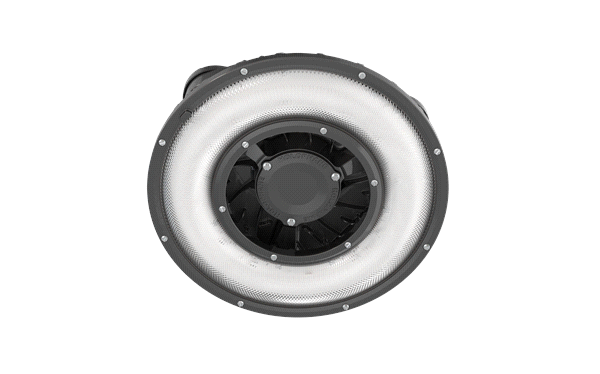

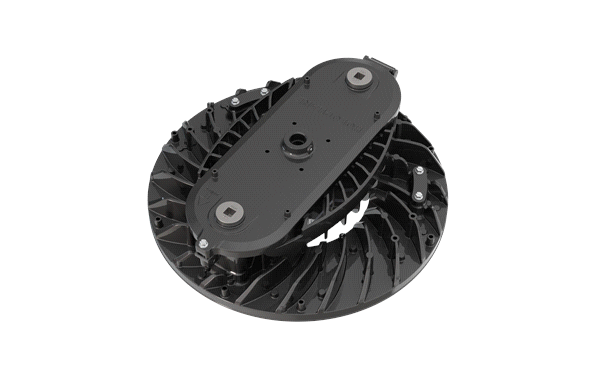

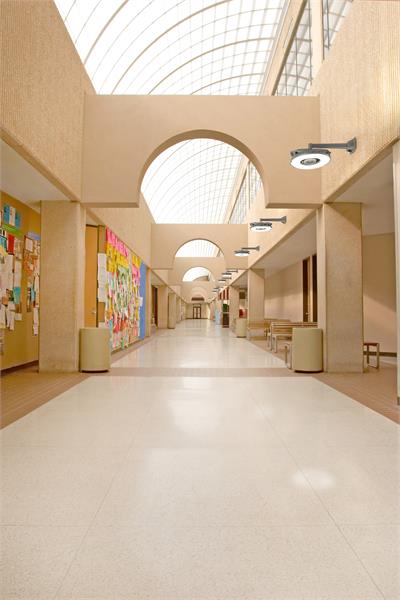

HOLOBAY™ Industrial LED High Bay

The Next Generation of Robust Round High Bays
    CA Title 20
  • Overview
  • Specifications
Read More
Read Less
Light Source LED - Static
Lumens 12,000 LM, 15,000 LM, 18,000 LM, 24,000 LM, 30,000 LM, 35,000 LM, 40,000 LM, 45,000 LM, 50,000 LM, 60,000 LM, 70,000 LM, 80,000 LM, 90,000 LM, 100,000 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 70, 80, 90
Compliance Listing CA Title 20
Environmental Listing IP65, IP66, NEMA 4X, Wet Location
Regulatory Listing cCSAus, NOM, UL924
Product Type High Bay
Dimming Protocol 0-10V
Voltage Rating 120, 120-277, 125VDC, 208, 240, 250VDC, 277, 277-480, 347, 480
Mounting Type Arm Mount, Pendant, Surface, Suspended, Yoke
Mounting Location Ceiling, Crane, Pole, Sloped Ceiling, Wall
Primary Material Aluminum
Architectural Style Traditional
Series HOLO1, HOLO2
