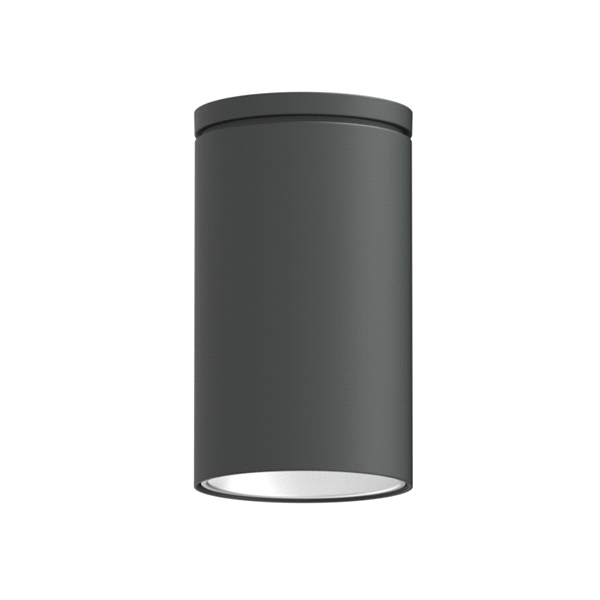

IVO™ 6" Round Surface Mount Cylinder

Downlight & Wall Wash Cylinder
    Low UGR
  • Overview
  • Specifications
The IVO™ Cylinders offer the industry's most extensive selection of options, with endless configurations for complete design freedom. With modular adaptability, effortless installation, and unmatched light quality, these cylinders transform every space, and can help create every experience from intimate settings to soaring ceilings.

Quality of Light
  • Bounding Ray™ Design controls glare and enhances architectural features while reducing stress and visual fatigue for occupants
  • Perfect Color™ Technology leads the industry with a 0.5-step MacAdam ellipse, surpassing the typical 3-step MacAdam ellipse found in most downlights
  • Patent pending optics ensure clean, crisp beams across all trims and styles, with options of field interchangeable beams from 10-degrees to 60-degrees in 5-degrees increments, and smooth batwing distributions for a uniformed illumination
Quality Options
  • Function: Downlight and Lensed Wall Wash

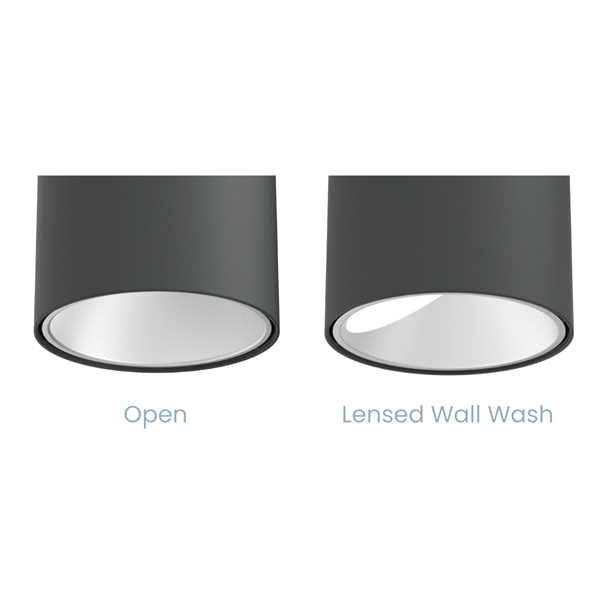

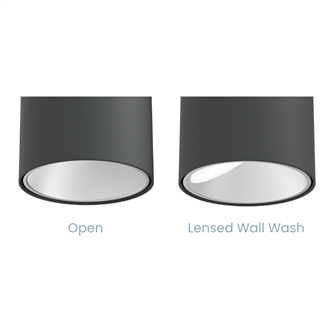

  • Trim options: Cone and Lensed Wall Wash
  • Beam angles: 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, medium, medium wide, wide
  • Cut off: 45-degrees, 65-degrees

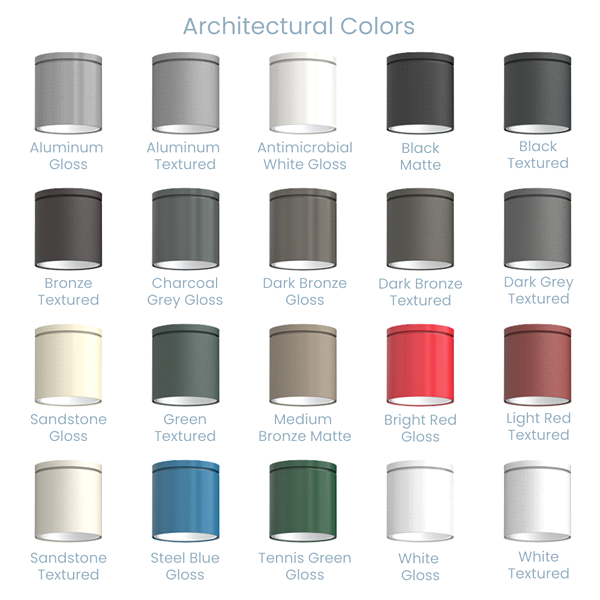

  • Colors: 20 architectural colors and full breath of RAL custom colors , 10 reflector colors, and 3 finishes
  • Multitude of driver options for different electrical dimming preferences and control requirements – nLight, DALI, ELV, 0-10v, 10% to <1% dimming
  • Emergency Battery Backup Options
Quality Design

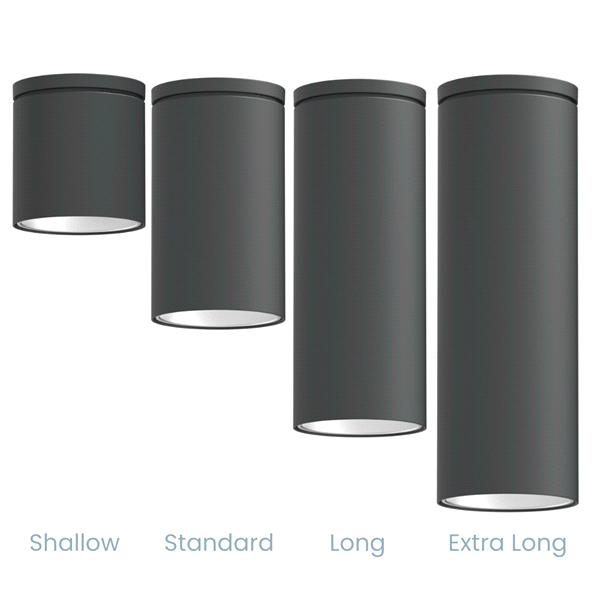

  • Cylinder Body Lengths: 7” (shallow), 12” (standard), 18” (long), and 21” (extra long)
  • Trim & Optics: Toolless design with a simple twist and lock mechanism for the optic and force full tension for the trim to simplify field interchangeability

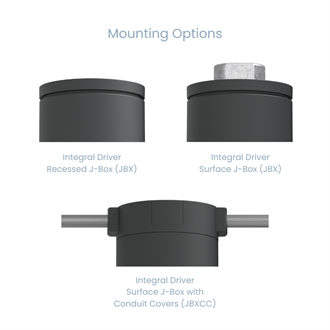

  • Surface Mounting: Designed with a universal mounting pan that allows for seamless interchangeability and a harmonious installation experience, whether you choose a round or square cylinder
Quality Performance
  • Lumen packages from 500-8000LM
  • 101 LPW and an L90 @ 60,000 hours
  • IEEE flicker free solutions with EldoLED drivers
  • Listings: Energy Star, CSA, Damp Location, Wet Location
Read More
Read Less
Aperture Size 6 IN
Shape Round
Light Source LED - Static
Lumens 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM, 5000 LM, 6000 LM, 7000 LM, 8000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90, 95
Product Type Cylinder
Compliance Listing Low UGR
Environmental Listing Damp Location, Wet Location
Regulatory Listing CSA
Control Platform nLight AIR G2, nLight Wired
Dimming Protocol 0-10V, DALI, DMX, Forward Phase
Fixture Wattage 10.2, 10.3, 10.4, 10.6, 10.7, 10.9, 11.4, 12.1, 12.3, 12.6, 12.7, 12.8, 13.1, 13.2, 13.4, 13.6, 14, 14.4, 14.5, 14.6, 33, 33.8, 33.9, 34.1, 34.2, 34.3, 34.4, 34.8, 34.9, 35.9, 36.3, 36.8, 36.9, 37.1, 37.2, 37.3, 37.4, 37.6, 37.7, 37.8, 37.9, 38.1, 38.2, 38.4, 38.5, 5.4, 50, 55, 56, 57, 58, 59, 6.9, 60, 66, 67, 68, 69, 7, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 27.6, 27.7, 28.2, 28.3, 28.6, 28.9, 29.3, 30.2, 30.6, 31.3, 31.7, 43.1, 43.2, 43.3, 43.4, 43.5, 31.9, 32.3, 32.5, 32.6, 32.9, 43.6, 43.8, 44, 44.6, 45.1, 45.3, 45.4, 45.7, 45.8, 46, 46.1, 46.3, 46.4, 46.8, 47, 47.6, 48.1, 48.3, 48.7, 49, 49.1, 49.4, 49.6, 49.8, 49.9, 5.1, 5.2, 14.8, 15, 15.5, 16.2, 17.3, 17.4, 17.6, 17.7, 17.8, 18, 18.5, 18.6, 18.8, 19.2, 20.2, 20.5, 21.2, 21.4, 21.7, 22, 22.2, 22.9, 23.1, 38.7, 38.9, 39.9, 4.9, 40.9, 41.1, 41.2, 41.5, 41.7, 41.9, 42.1, 42.4, 42.8, 43, 23.2, 23.3, 23.5, 24.2, 24.4, 25.2, 25.3, 25.6, 26.3, 26.4, 26.5, 26.9, 27.2, 27.3, 7.9, 70, 71, 74, 75, 76, 77, 78, 79, 8.1, 8.5, 8.8, 80, 9.1, 9.2, 9.3, 9.5, 9.6, 9.7, 9.8, 9.9
Voltage Rating 120, 120-277, 277, 347
Trim Style Lensed, Open, Single Wallwash
Color Beige, Black, Blue, Bronze, Clear, Gold, Gray, Green, Pewter, Red, Silver, Wheat, White
Mounting Type Surface
Special Applications Education, Government, Healthcare, Hospitality, House of Worship, Offices & Banks, Retail
Function Downlight, Wall Wash
Product Series IVO
Series IVO6CYL

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Gotham-IVO6CYL-Cylinder-6in-Round-Surface.pdf IVO6CYL 6IN Round Surface Cylinder 2/10/2025 View
