IVO™ 4" Square Surface Mount Cylinder

Downlight & Wall Wash Cylinder
    Low UGR
  • Overview
  • Specifications
Read More
Read Less
Aperture Size 4 IN
Shape Square
Light Source LED - Static
Lumens 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90, 95
Product Type Cylinder
Compliance Listing Low UGR
Environmental Listing Damp Location, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Forward Phase
Fixture Wattage 10.1, 10.2, 10.7, 14.1, 14.5, 14.6, 15.3, 15.5, 19.1, 19.4, 20.1, 20.3, 24.6, 24.9, 25, 25.6, 25.9, 30.3, 30.8, 31.1, 31.3, 31.7, 5.2, 5.4, 7.1, 7.4, 7.6, 7.7, 8, 9.7
Voltage Rating 120, 120-277, 277
Trim Style Lensed, Open, Single Wallwash

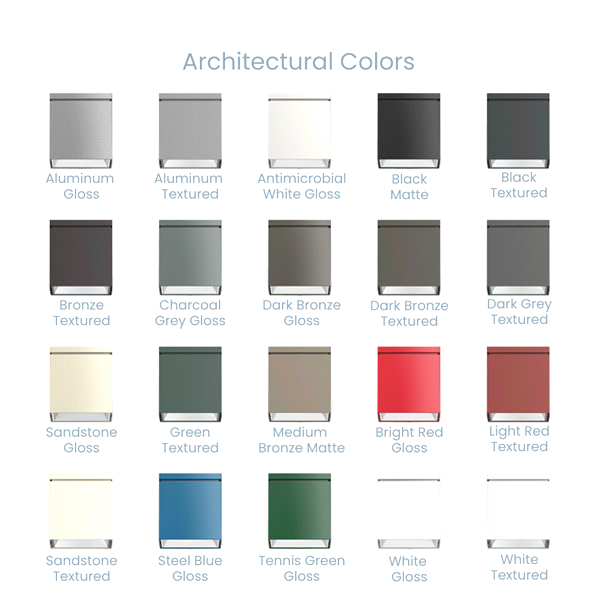

Color Beige, Black, Blue, Bronze, Clear, Gold, Gray, Green, Pewter, Red, Silver, Wheat, White
Mounting Type Surface
Special Applications Education, Government, Healthcare, Hospitality, House of Worship, Offices & Banks, Retail
Function Downlight, Wall Wash
Product Series IVO
Series IVO4SQCYL

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Gotham-IVO4SQCYL-Cylinder-4in-Square-Surface.pdf IVO4SQCYL 4IN Square Surface Cylinder 10/22/2024 View
