Series 247L LED - American Revolution

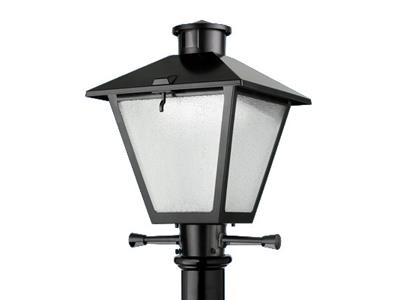

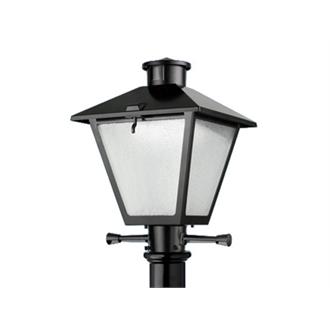

Colonial LED Post-top Lantern
    DLC StandardBuy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
Read More
Read Less
Light Source LED - Static
Lumens 1000 LM, 2000 LM, 3000 LM, 4000 LM, 5000 LM, 6000 LM, 7000 LM, 8500 LM
CCT / LED Color 2700 K, 3000 K, 4000 K, 5000 K
CRI 70
Compliance Listing BAA and BABA, DLC Standard
Environmental Listing IP66
Regulatory Listing CSA, UL
Product Type Post Top
Voltage Rating 120-277
Mounting Type Post Top
Mounting Location Pole
Primary Material Aluminum
No. of Fixtures 1
Architectural Style Historical
Series 247L

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet 247L_.pdf 247L Colonial LED Post-top Lantern 4/25/2024 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    CAD 247L Ladder Housing.dwg 2D DWG 247L Ladder Housing 4/20/2022
    CAD 247L No Ladder Housing.dwg 2D DWG 247L No Ladder Housing 4/20/2022
    Installation Instructions 247L CNV Option Conversion Instructions.pdf 247L CNV Option Conversion Instructions 7/14/2022 View
    Installation Instructions 247L-247CL Installation Instructions.pdf 247L-247CL Installation Instructions 2/14/2022 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Installation Instructions 247L LEM INSTALLATION INSTRUCTIONS 912-00390-001.pdf 247L LEM INSTALLATION INSTRUCTIONS 12/20/2022 View
    Replacement Part Spec Sheet 247L Repair Kits.pdf 247L Repair Kits 11/8/2024 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures AEL Utility Lanterns Brochure.pdf AEL Utility Lanterns Brochure 9/2/2022 View
    Sell Sheet 247L Sell Sheet.pdf 247L Sell Sheet 7/21/2020 View
