Gotham Lighting

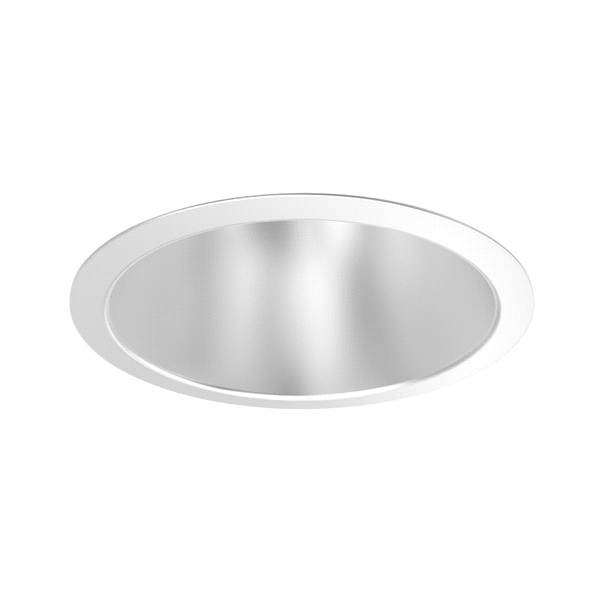

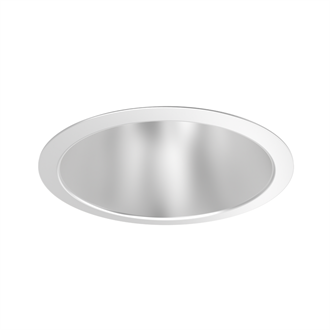

IVO™ 6" Round Downlight

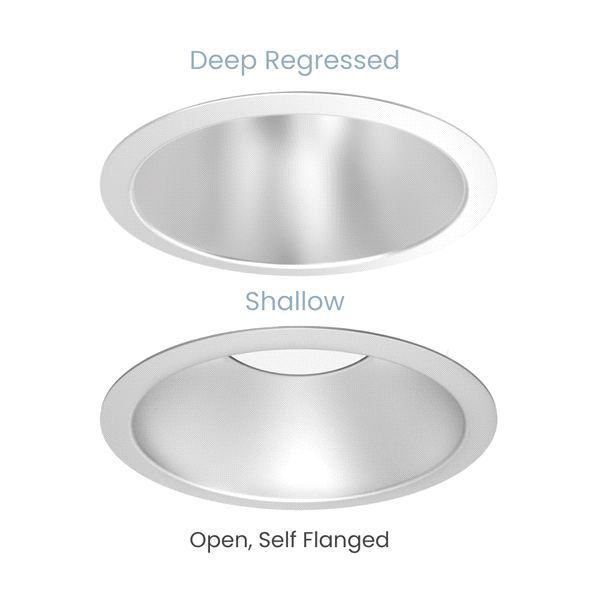

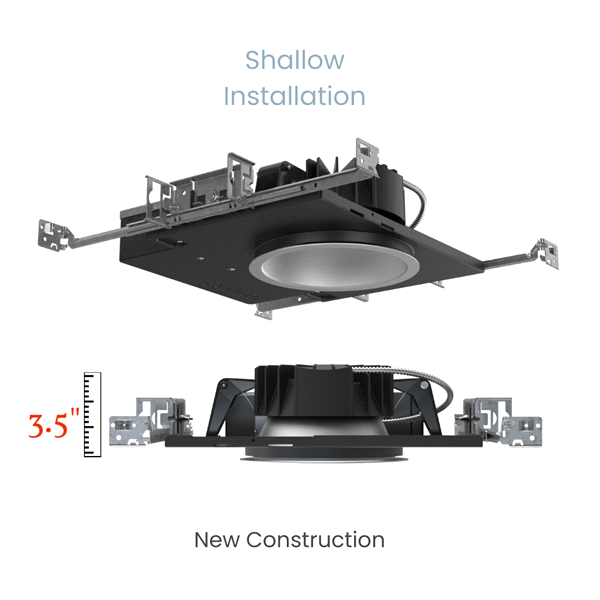

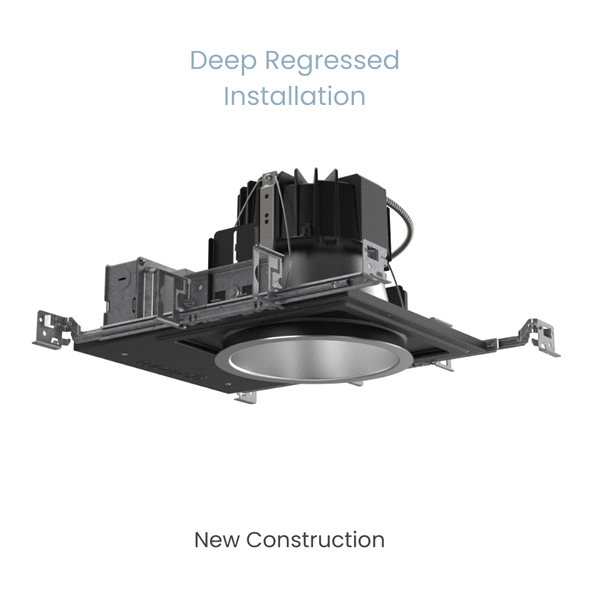

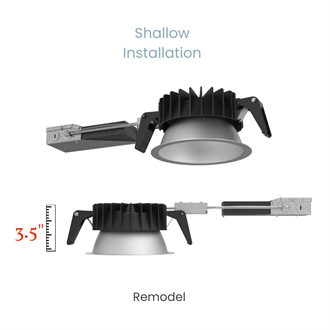

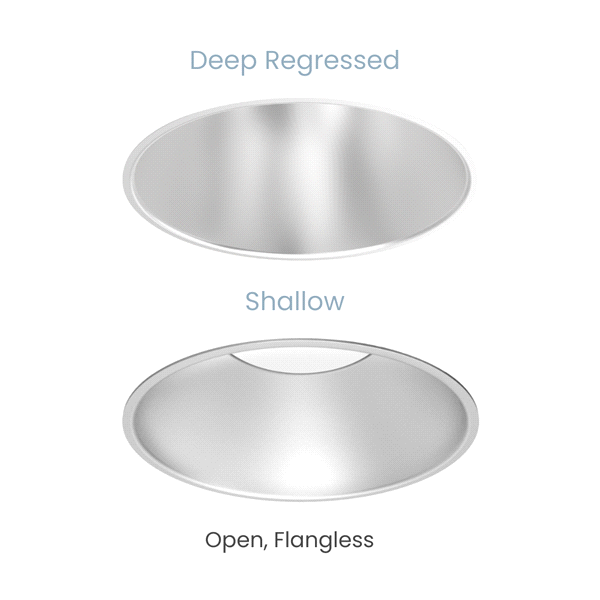

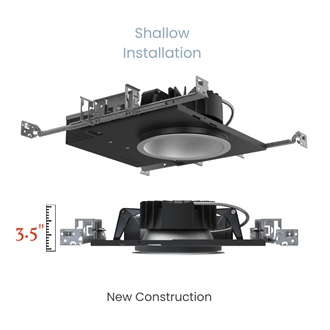

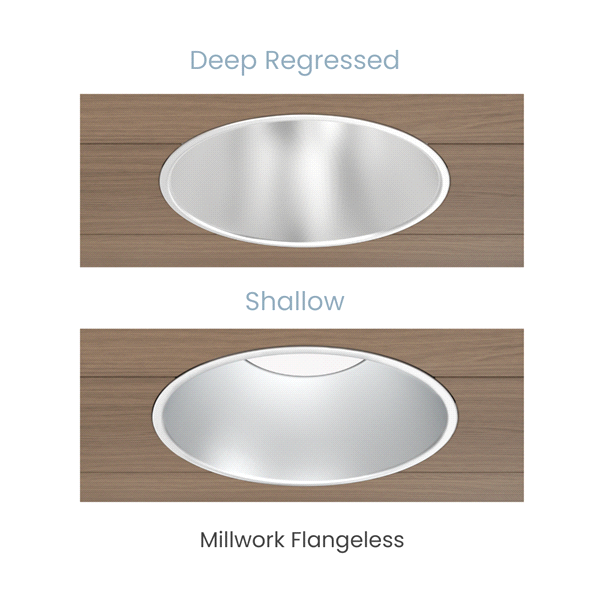

Deep Regressed & Shallow Recessed | New Construction & Remodel
    Low UGR
  • Overview
  • Specifications
Read More
Read Less
Aperture Size 6 IN
Shape Round
Light Source LED - Static
Lumens 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM, 5000 LM, 6000 LM, 7000 LM, 8000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90, 95
Product Type Downlight
Compliance Listing Low UGR
Environmental Listing Damp Location, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, DMX, Forward Phase
Fixture Wattage 10.1, 10.3, 10.4, 10.5, 10.6, 10.8, 10.9, 11, 11.1, 11.2, 11.5, 11.7, 11.9, 12.1, 12.2, 12.3, 12.4, 12.6, 12.7, 12.9, 13, 13.1, 13.2, 13.3, 13.4, 13.5, 13.6, 13.8, 13.9, 14, 14.2, 14.5, 14.6, 14.7, 14.8, 15.2, 15.3, 15.7, 16, 16.2, 16.3, 16.4, 16.5, 16.7, 16.8, 17, 17.3, 17.5, 17.6, 17.7, 17.8, 17.9, 18.1, 18.3, 18.4, 18.5, 18.6, 18.7, 18.8, 19.4, 19.5, 19.7, 19.8, 19.9, 20.2, 20.4, 20.5, 20.6, 20.7, 20.8, 21, 21.5, 21.6, 22, 22.1, 22.2, 22.3, 22.4, 22.5, 22.9, 23.1, 23.3, 23.9, 24, 24.1, 24.5, 24.9, 25.1, 25.2, 25.3, 25.6, 25.9, 26.1, 26.3, 26.4, 26.6, 26.7, 26.8, 26.9, 27.2, 27.3, 27.7, 28, 28.3, 28.5, 28.6, 28.7, 28.9, 29.3, 29.5, 29.7, 29.8, 30, 30.1, 30.3, 30.6, 30.7, 31.1, 31.2, 31.6, 31.7, 31.8, 31.9, 32.3, 32.5, 32.6, 32.7, 33, 33.1, 33.4, 33.6, 33.8, 34.2, 34.6, 34.8, 34.9, 35.2, 35.3, 35.4, 35.6, 35.8, 36, 36.3, 36.4, 36.5, 36.9, 37, 37.2, 37.4, 37.6, 37.7, 37.9, 38, 38.1, 38.4, 38.5, 38.9, 39.2, 39.3, 39.4, 40.1, 40.3, 40.5, 40.7, 40.9, 41, 41.1, 41.2, 41.6, 41.8, 41.9, 42, 42.1, 43.1, 43.2, 43.3, 43.5, 43.6, 44.3, 44.4, 44.8, 45, 45.1, 45.2, 46, 46.1, 46.2, 46.3, 46.4, 46.5, 46.6, 46.8, 47.1, 47.4, 47.5, 47.8, 47.9, 48, 48.6, 48.7, 48.9, 49, 49.6, 49.8, 49.9, 5.09, 5.2, 5.4, 50, 51, 52, 53, 54, 55, 56, 6.3, 6.6, 7, 7.09, 7.4, 7.48, 7.5, 7.6, 7.8, 8.1, 8.19, 8.3, 8.4, 8.5, 8.59, 8.6, 8.8, 9, 9.09, 9.1, 9.2, 9.23, 9.3, 9.48, 9.5, 9.9
Voltage Rating 120, 120-277, 277, 347
Trim Style Bevel, Open
Color Black, Bronze, Clear, Gold, Pewter, Silver, Wheat, White
Mounting Type Recessed

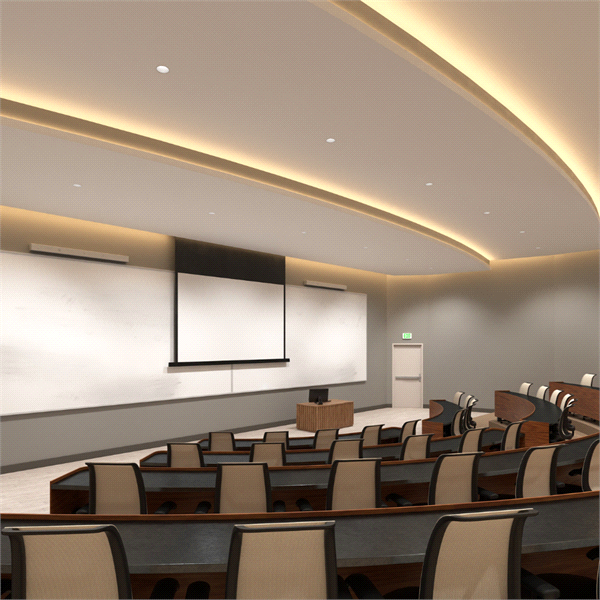

Special Applications Education, Government, Healthcare, Hospitality, House of Worship, Offices & Banks, Retail
Function Downlight
Product Series IVO
Series IVO6S, IVO6

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Gotham-IVO6-Downlight-6in-Round.pdf 6IN Round Recessed Downlight 10/21/2024 View
    Spec Sheet Gotham-IVO6S.pdf 6IN Round Shallow Recessed Downlight 8/21/2024 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Report_Gotham IVO6S 27K 80CRI.pdf IVO6S and IVO6SQS 27K 80CRI Spectral Data Sheet 1/25/2024 View
    Spectral Data Sheet Spectral Data Report_Gotham IVO6S 27K 90CRI.pdf IVO6S and IVO6SQS 27K 90CRI Spectral Data Sheet 1/25/2024 View
    Spectral Data Sheet Spectral Data Report_Gotham IVO6S 27K 95CRI.pdf IVO6S and IVO6SQS 27K 95CRI Spectral Data Sheet 1/25/2024 View
    Spectral Data Sheet Spectral Data Report_Gotham IVO6S 30K 80CRI.pdf IVO6S and IVO6SQS 30K 80CRI Spectral Data Sheet 1/25/2024 View
    Spectral Data Sheet Spectral Data Report_Gotham IVO6S 30K 90CRI.pdf IVO6S and IVO6SQS 30K 90CRI Spectral Data Sheet 1/25/2024 View
    Spectral Data Sheet Spectral Data Report_Gotham IVO6S 30K 95CRI.pdf IVO6S and IVO6SQS 30K 95CRI Spectral Data Sheet 1/25/2024 View
    Spectral Data Sheet Spectral Data Report_Gotham IVO6S 35K 80CRI.pdf IVO6S and IVO6SQS 35K 80CRI Spectral Data Sheet 1/25/2024 View
    Spectral Data Sheet Spectral Data Report_Gotham IVO6S 35K 90CRI.pdf IVO6S and IVO6SQS 35K 90CRI Spectral Data Sheet 1/25/2024 View
    Spectral Data Sheet Spectral Data Report_Gotham IVO6S 40K 80CRI.pdf IVO6S and IVO6SQS 40K 80CRI Spectral Data Sheet 1/25/2024 View
    Spectral Data Sheet Spectral Data Report_Gotham IVO6S 40K 90CRI.pdf IVO6S and IVO6SQS 40K 90CRI Spectral Data Sheet 1/25/2024 View
    Spectral Data Sheet Spectral Data Report_Gotham IVO6S 50K 80CRI.pdf IVO6S and IVO6SQS 50K 80CRI Spectral Data Sheet 1/25/2024 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00481-001 INSTALLATION INSTRUCTIONS IVOS_ENGLISH.pdf IVO Shallow NCH New Construction Housing - English 5/7/2024 View
    Installation Instructions 912-00481-001 INSTALLATION INSTRUCTIONS IVOS_ENGLISH.pdf IVO Shallow NCH New Construction Housing - English 5/7/2024 View
    Installation Instructions 912-00481-002 INSTALLATION INSTRUCTIONS IVOS_FRENCH.pdf IVO Shallow NCH New Construction Housing - French 5/7/2024 View
    Installation Instructions 912-00481-003 INSTALLATION INSTRUCTIONS IVOS_SPANISH.pdf IVO Shallow NCH New Construction Housing - Spanish 5/7/2024 View
    Installation Instructions 912-00481-003 INSTALLATION INSTRUCTIONS IVOS_SPANISH.pdf IVO Shallow NCH New Construction Housing - Spanish 5/7/2024 View
    Installation Instructions 912-00481-004 INSTALLATION INSTRUCTIONS IVOS RM_ENGLISH.pdf IVO RM Shallow Remodel Housing Installation - English 5/7/2024 View
    Installation Instructions 912-00481-005 INSTALLATION INSTRUCTIONS IVOS RM_FRENCH.pdf IVO RM Shallow Remodel Housing Installation - French 5/7/2024 View
    Installation Instructions 912-00481-006 INSTALLATION INSTRUCTIONS IVOS RM_SPANISH.pdf IVO RM Shallow Remodel Housing Installation - Spanish 5/7/2024 View
    Material Safety Data Sheet msds_16v-9-6v-lithium-ion.pdf SDS sheet 10W and 15W IOTA ILBLP emergency battery 5/20/2024 View
    Material Safety Data Sheet SDS sheet 7 watt ILBCP07 emergency battery SDS sheet 7 watt ILBCP07 emergency battery 5/20/2024 View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet IVO6SDLT RK Template.pdf IVO 6" Shallow Round and Square Replacement Kits 11/1/2024 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Sell Sheet IVO Shallow Recessed Downlight Sell Sheet IVO Shallow Recessed Downlight Sell Sheet 5/10/2024 View
