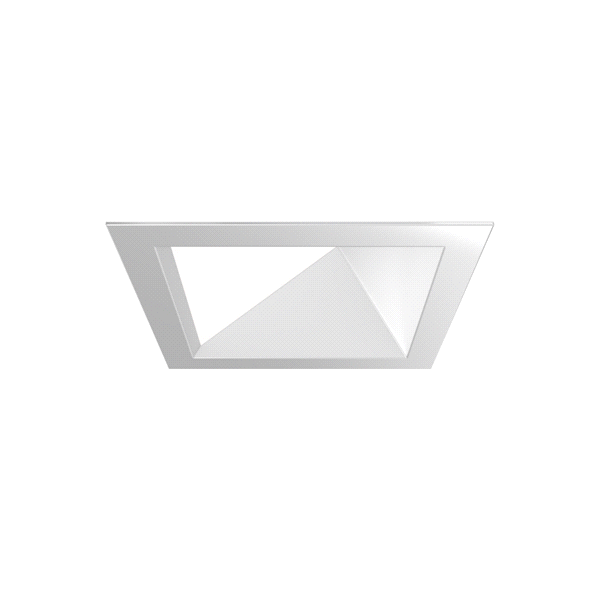

IVO™ 4" Square Wall Wash

Deep Regressed & Shallow Recessed | New Construction & Remodel
    Low UGR
  • Overview
  • Specifications
The IVO™ family of downlights redefine breadth of options, visual comfort and performance found in a single product family. Setting a new standard in quality of light with industry-leading optics and an advanced light engine, these downlights are available in a versatile range of sizes, finishes, beam angles, and lumen outputs, while providing a seamless installation through an unmatched modular design.

Quality of Light
  • Bounding Ray™ Technology controls glare and enhances architectural features while reducing stress and visual fatigue for occupants
  • Perfect Color™ Technology leads the industry with a 0.5-step MacAdam ellipse, surpassing the typical 3-step MacAdam ellipse found in most downlights
  • Patent pending optics ensure clean, crisp beams across all trims and styles, with options of field interchangeable beams from 10-degrees to 60-degrees in 5-degrees increments, and smooth batwing distributions for a uniformed illumination
Quality Options

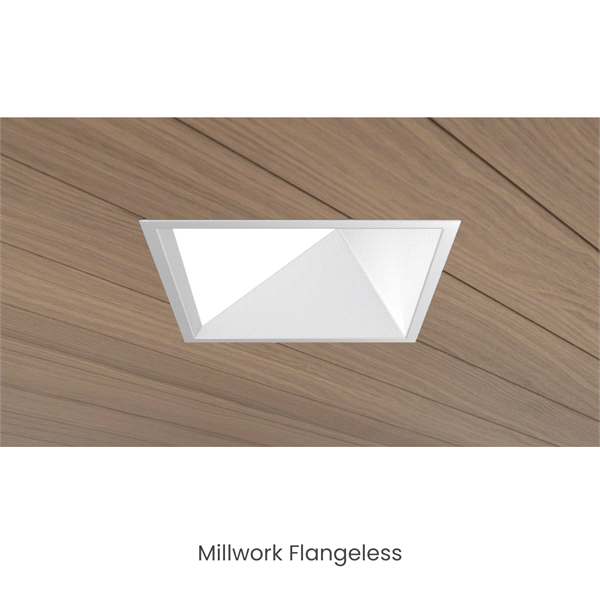

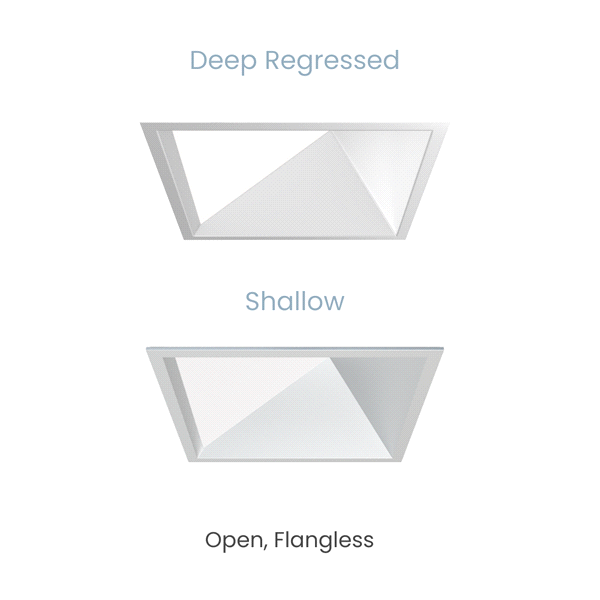

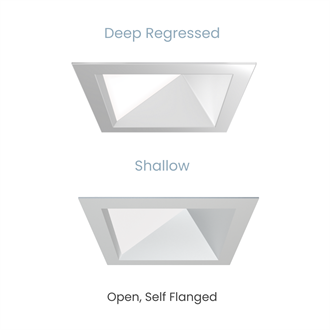

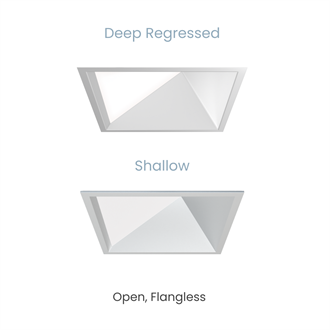

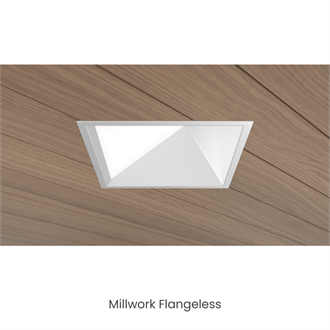

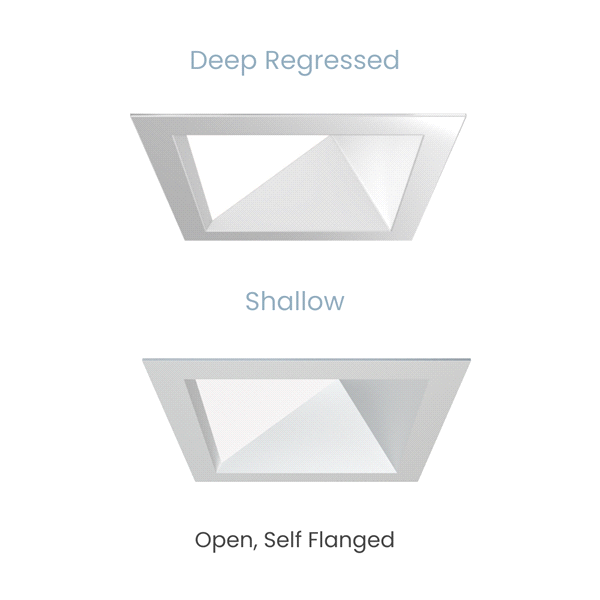

  • Trim options: Cone and Bevel available as flanged, flangeless, and flangeless millwork
  • Beam angles: 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, medium, medium wide, wide
  • Cut off: 45-degrees, 65-degrees
  • Solutions for any indoor installation type – deep regressed, shallow, new construction, remodel, ICAT and CP
  • Damp and Wet Location configurations available for exterior applications
  • Multitude of driver options for different electrical dimming preferences and control requirements – nLight® Air & Wires, DMX, DALI, ELV, ELDO, 0-10V, 10% to <1% dimming
Quality Design

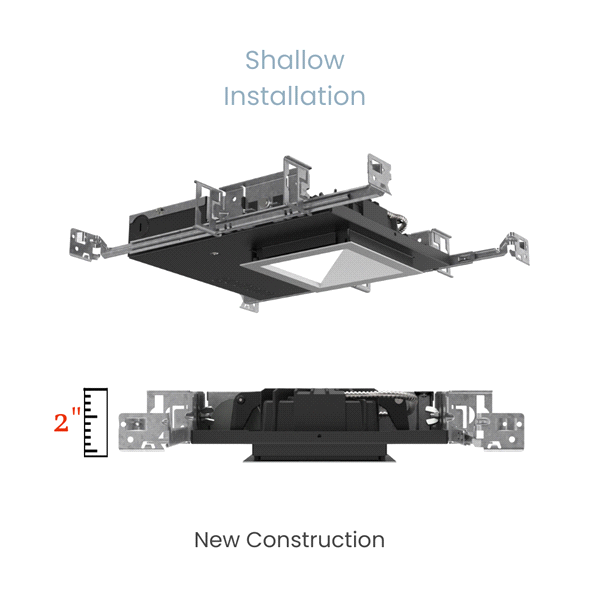

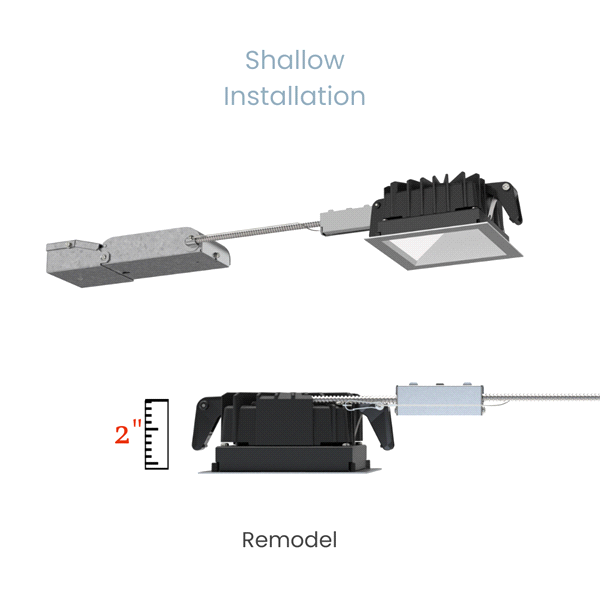

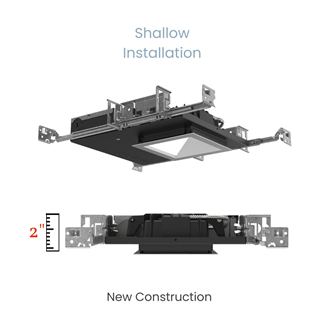

  • Shallow Design: Delivers up to 3,000 lumens fitting in a 2” plenum depth. Module features with a quick-disconnect harness and strain relief for ease of inspection and service

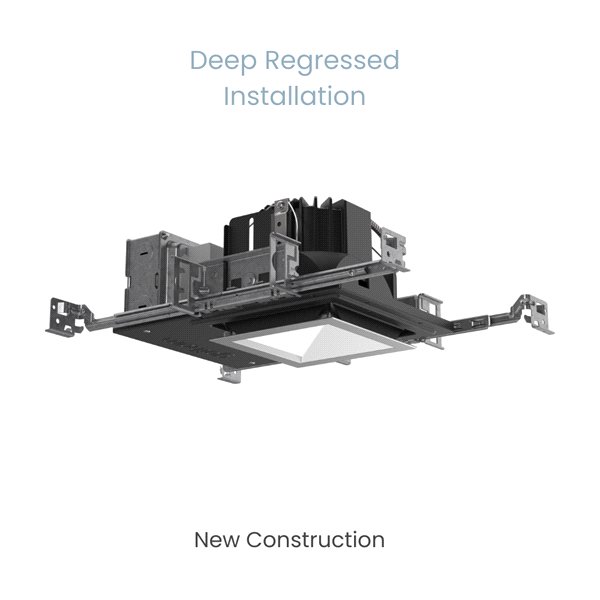

  • COMING SOON! Deep Regressed Design: Enhances visual comfort within a minimum 4.5” height, delivering up to 4,500 lumens with an easy plug-and-play installation design that provides maximum flexibility and quick installation
  • Trim & Optics: Toolless design with a simple twist and lock mechanism for simple field interchangeability
Quality Performance
  • Lumen packages from 500-5000LM and 500-6000LM
  • 101 LPW and an L90 @ 60,000 hours
  • IEEE flicker free solutions with EldoLED drivers
  • Title 24 and Energy Star certifications for code and environment requirements
Read More
Read Less
Aperture Size 4 IN
Shape Square
Light Source LED - Static
Lumens 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90, 95
Product Type Downlight
Compliance Listing Low UGR
Environmental Listing Damp Location, Non-IC, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, DMX, Forward Phase
Fixture Wattage 10, 10.1, 10.2, 10.3, 10.4, 10.5, 10.7, 11, 11.2, 11.8, 12.1, 12.6, 13, 13.1, 13.3, 13.7, 14.1, 14.5, 14.6, 14.8, 15.3, 15.5, 15.6, 17, 17.4, 17.5, 17.6, 18.3, 18.5, 19.1, 19.4, 20.1, 20.3, 20.6, 22, 22.3, 22.5, 23.1, 23.3, 24.6, 24.9, 25, 25.6, 25.8, 25.9, 27.5, 27.8, 27.9, 28.1, 28.6, 28.9, 30.3, 30.7, 30.8, 31.1, 31.2, 31.3, 31.7, 33.2, 33.7, 33.8, 34, 34.3, 34.7, 5.15, 5.2, 5.4, 7.1, 7.4, 7.5, 7.57, 7.6, 7.7, 8, 8.1, 8.25, 8.4, 8.5, 9.1, 9.7
Voltage Rating 120, 120-277, 277, 347
Trim Style Lensed, Single Wallwash
Color Black, Bronze, Clear, Gold, Pewter, Silver, Wheat, White
Mounting Type Recessed
Special Applications Education, Government, Healthcare, Hospitality, House of Worship, Offices & Banks, Retail
Function Wall Wash
Product Series IVO
Series IVO4SQ, IVO4SQS

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Gotham-IVO4SQS-Wall Wash.pdf 4IN Square Shallow Recessed Lensed Wall Wash 8/21/2024 View
    Spec Sheet Gotham-IVO4SQ-Wall Wash-4in-Square.pdf 4IN Square Recessed Wall Wash 10/21/2024 View

    Design Select
    Take Me There
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    1 - 1 of results

    Description Report Design Tools
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Report_Gotham IVO4S 27K 80CRI.pdf IVO4S and IVO4SQS 27K 80CRI Spectral Data Sheet 1/25/2024 View
    Spectral Data Sheet Spectral Data Report_Gotham IVO4S 27K 90CRI.pdf IVO4S and IVO4SQS 27K 90CRI Spectral Data Sheet 1/25/2024 View
    Spectral Data Sheet Spectral Data Report_Gotham IVO4S 27K 95CRI.pdf IVO4S and IVO4SQS 27K 95CRI Spectral Data Sheet 1/25/2024 View
    Spectral Data Sheet Spectral Data Report_Gotham IVO4S 30K 80CRI.pdf IVO4S and IVO4SQS 30K 80CRI Spectral Data Sheet 1/25/2024 View
    Spectral Data Sheet Spectral Data Report_Gotham IVO4S 30K 90CRI.pdf IVO4S and IVO4SQS 30K 90CRI Spectral Data Sheet 1/25/2024 View
    Spectral Data Sheet Spectral Data Report_Gotham IVO4S 30K 95CRI.pdf IVO4S and IVO4SQS 30K 95CRI Spectral Data Sheet 1/25/2024 View
    Spectral Data Sheet Spectral Data Report_Gotham IVO4S 35K 80CRI.pdf IVO4S and IVO4SQS 35K 80CRI Spectral Data Sheet 1/25/2024 View
    Spectral Data Sheet Spectral Data Report_Gotham IVO4S 35K 90CRI.pdf IVO4S and IVO4SQS 35K 90CRI Spectral Data Sheet 1/25/2024 View
    Spectral Data Sheet Spectral Data Report_Gotham IVO4S 40K 80CRI.pdf IVO4S and IVO4SQS 40K 80CRI Spectral Data Sheet 1/25/2024 View
    Spectral Data Sheet Spectral Data Report_Gotham IVO4S 40K 90CRI.pdf IVO4S and IVO4SQS 40K 90CRI Spectral Data Sheet 1/25/2024 View
    Spectral Data Sheet Spectral Data Report_Gotham IVO4S 50K 80CRI.pdf IVO4S and IVO4SQS 50K 80CRI Spectral Data Sheet 1/25/2024 View
  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00481-001 INSTALLATION INSTRUCTIONS IVOS_ENGLISH.pdf IVO Shallow NCH New Construction Housing - English 5/7/2024 View
    Installation Instructions 912-00481-002 INSTALLATION INSTRUCTIONS IVOS_FRENCH.pdf IVO Shallow NCH New Construction Housing - French 5/7/2024 View
    Installation Instructions 912-00481-003 INSTALLATION INSTRUCTIONS IVOS_SPANISH.pdf IVO Shallow NCH New Construction Housing - Spanish 5/7/2024 View
    Installation Instructions 912-00481-004 INSTALLATION INSTRUCTIONS IVOS RM_ENGLISH.pdf IVO RM Shallow Remodel Housing Installation - English 5/7/2024 View
    Installation Instructions 912-00481-005 INSTALLATION INSTRUCTIONS IVOS RM_FRENCH.pdf IVO RM Shallow Remodel Housing Installation - French 5/7/2024 View
    Installation Instructions 912-00481-006 INSTALLATION INSTRUCTIONS IVOS RM_SPANISH.pdf IVO RM Shallow Remodel Housing Installation - Spanish 5/7/2024 View
    Material Safety Data Sheet msds_16v-9-6v-lithium-ion.pdf SDS sheet 10W and 15W IOTA ILBLP emergency battery 5/20/2024 View
    Material Safety Data Sheet SDS sheet 7 watt ILBCP07 emergency battery SDS sheet 7 watt ILBCP07 emergency battery 5/20/2024 View
  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet IVO4SDLT RK Template.pdf IVO 4" Shallow Round and Square Replacement Kits 11/1/2024 View
  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Sell Sheet IVO Shallow Recessed Downlight Sell Sheet IVO Shallow Recessed Downlight Sell Sheet 5/10/2024 View
