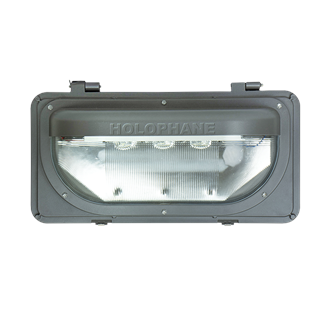

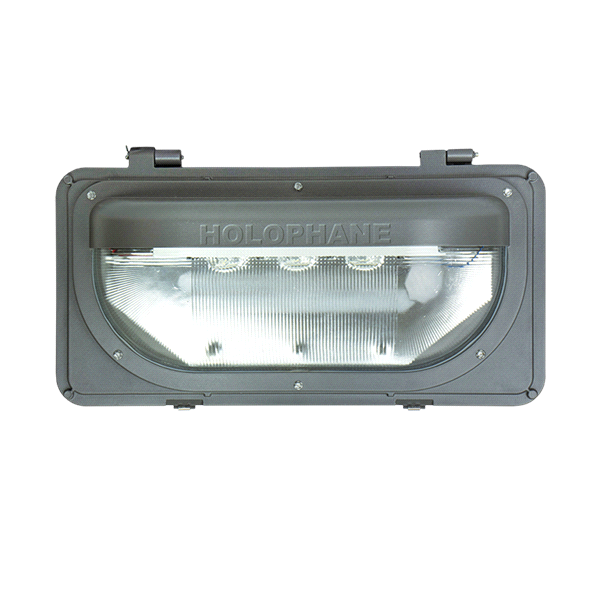

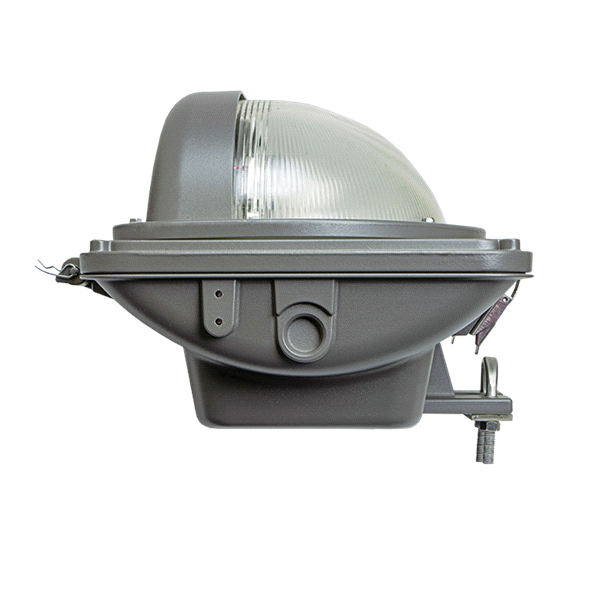

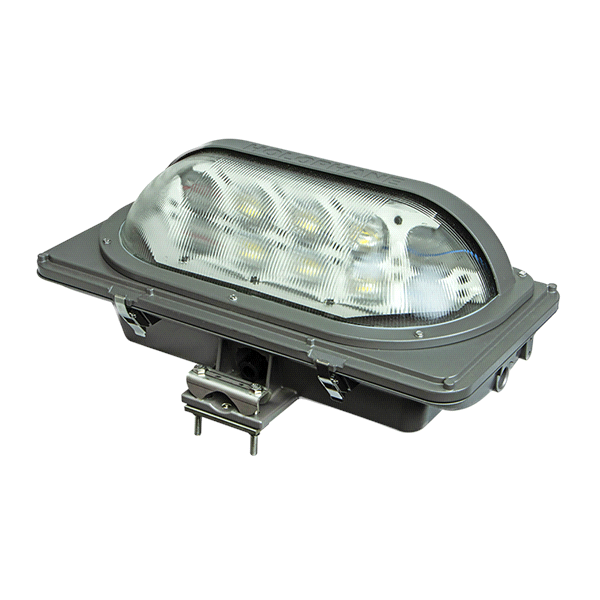

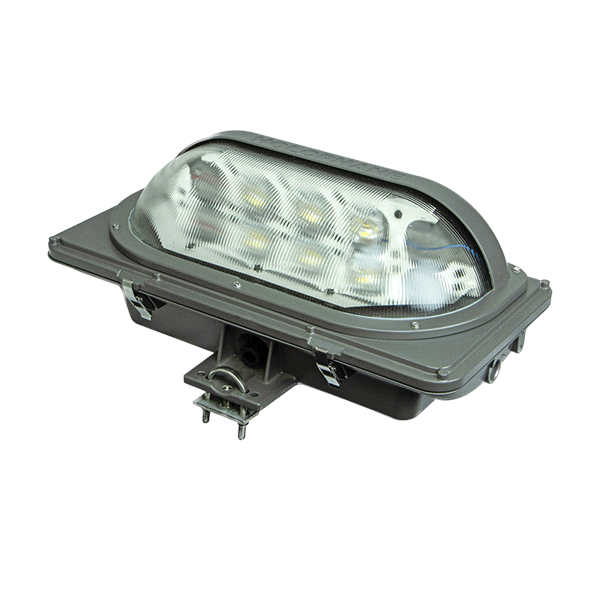

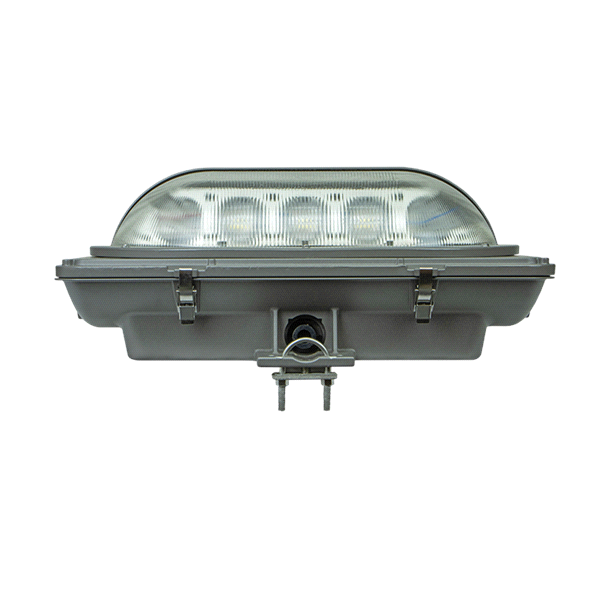

SVLED3 Sign Light

Sign-Vue® LED Sign Lighting
  • Overview
  • Specifications
Read More
Read Less
Light Source LED - Static
Lumens 6100 LM, 6200 LM, 6300 LM, 7800 LM, 7900 LM, 8000 LM, 8100 LM, 9800 LM, 10,000 LM, 10,100 LM, 13,500 LM, 13,700 LM, 13,800 LM, 13,900 LM, 15,000 LM, 15,100 LM, 15,200 LM, 15,300 LM, 15,500 LM, 18,400 LM, 18,500 LM, 18,700 LM, 18,800 LM, 19,000 LM, 20,100 LM, 20,300 LM, 20,400 LM, 20,500 LM, 20,700 LM
CCT / LED Color 4000 K, 5000 K
CRI 70, 80
Environmental Listing IP66, Wet Location
Regulatory Listing cCSAus
Product Type Sign Light
Dimming Protocol 0-10V
Voltage Rating 24VDC, 120-277, 277-480, 347/480, HVOLT, XVOLT

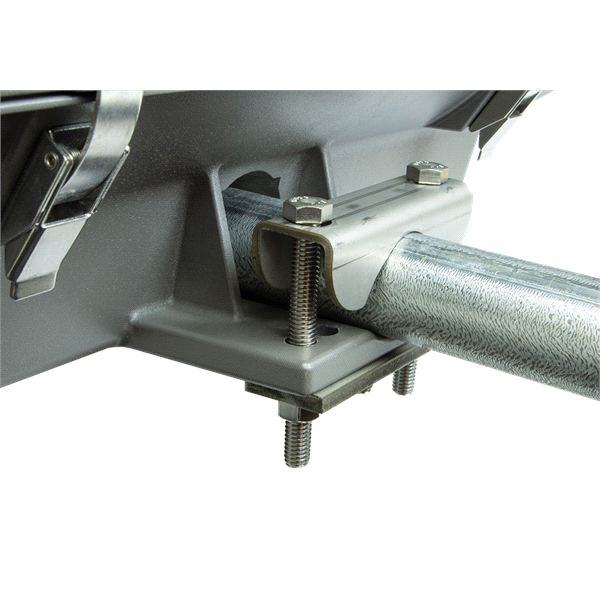

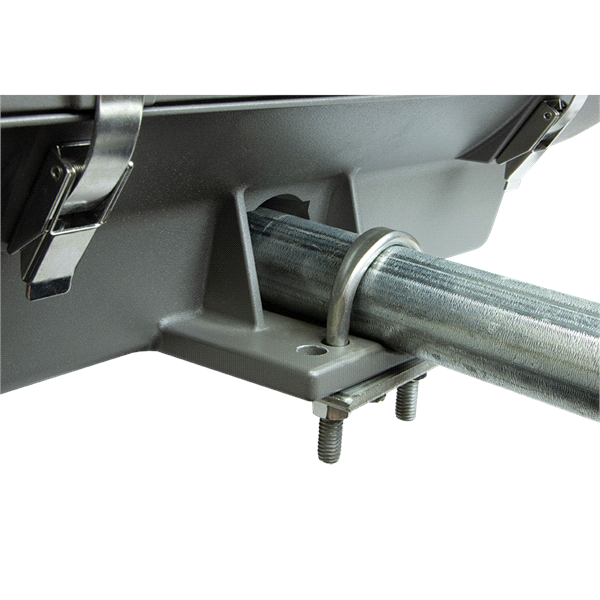

Mounting Type Arm Mount
Primary Material Aluminum
Architectural Style Utility
Series SVLED3

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet SVLED3.pdf SignVue LED3 5/8/2024 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_HLP_SVLED3_30K_70CRI.pdf SpectralDataSheet_HLP_SVLED3_30K_70CRI 9/21/2023 View
    Spectral Data Sheet SpectralDataSheet_HLP_SVLED3_30K_80CRI.pdf SpectralDataSheet_HLP_SVLED3_30K_80CRI 9/21/2023 View
    Spectral Data Sheet SpectralDataSheet_HLP_SVLED3_40K_70CRI.pdf SpectralDataSheet_HLP_SVLED3_40K_70CRI. 9/21/2023 View
    Spectral Data Sheet SpectralDataSheet_HLP_SVLED3_50K_70CRI.pdf SpectralDataSheet_HLP_SVLED3_50K_70CRI 9/21/2023 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00478-001.pdf SVLED3 Installation and Maintenance manual 9/19/2023 View
    Installation Instructions 912-00479-001.pdf SVLED3 Shield Installation 9/19/2023 View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet SVLED3 Repair Kits.pdf SVLED3 Replacements Parts 5/1/2024 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Sell Sheet SVLED3 DOT Sell Sheet.pdf Sign-Vue 3 Roadway Signage sell sheet 6/27/2024 View
    Sell Sheet SVLED3 Media Sell Sheet.pdf Sign-Vue 3 Outdoor Advertising sell sheet 6/27/2024 View
