Mark Architectural Lighting
Mark Architectural Lighting

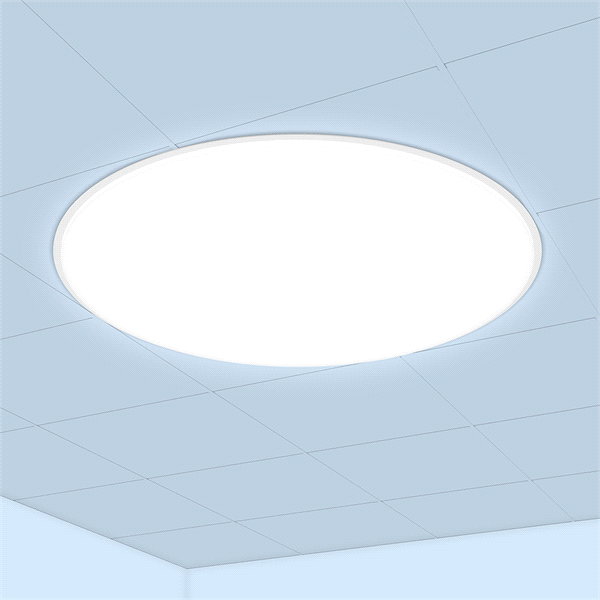

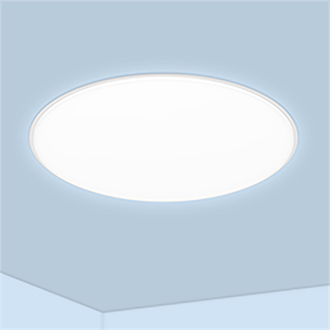

Magellan Ceiling Recessed

Direct Ceiling Recessed Luminaire
    Tunable WhiteBuy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
Read More
Read Less
Size 1FT, 2FT, 3FT, 4FT, 5FT, 6FT
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White
Lumens 1000 LM, 1300 LM, 1500 LM, 2500 LM, 3000 LM, 4000 LM, 5500 LM, 6000 LM, 8500 LM, 9000 LM, 10,500 LM, 12,000 LM, 16,000 LM, 17,000 LM, 22,500 LM, 24,500 LM, 34,000 LM, 36,500 LM, 48,500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Troffer
Compliance Listing BAA and BABA, Chicago Plenum
Environmental Listing Damp Location, IC
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, DMX
Mounting Type Recessed
Fixture Wattage 114, 118, 12.2, 133, 136, 14.5, 143, 15.9, 157, 16.1, 160, 166, 179, 18.6, 19.4, 194, 21.9, 24.4, 259, 26.2, 281, 290, 31.4, 33.4, 367, 38.2, 387, 40.2, 420, 459, 558, 59, 614, 62, 64, 74, 85, 96, 98
Voltage Rating 120-277, 347
Series MGLR

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Mark-Magellan-MGLR-Troffer-Static White.pdf Direct or Acoustic Ceiling Recessed Luminaire 4/2/2024 View
    Spec Sheet Mark-Magellan-MGLR-Troffer-Tunable White.pdf Direct or Acoustic Ceiling Recessed Luminaire Tunable White 4/2/2024 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_Mark_Magellan_Direct_27K_80CRI.pdf MAGELLAN DIRECT 27K 80CRI 5/4/2023 View
    Spectral Data Sheet SpectralDataSheet_Mark_Magellan_Direct_27K_90CRI.pdf MAGELLAN DIRECT 27K 90CRI 5/12/2023 View
    Spectral Data Sheet SpectralDataSheet_Mark_Magellan_Direct_30K_80CRI.pdf MAGELLAN DIRECT 30K 80CRI 5/4/2023 View
    Spectral Data Sheet SpectralDataSheet_Mark_Magellan_Direct_30K_90CRI.pdf MAGELLAN DIRECT 30K 90CRI 5/12/2023 View
    Spectral Data Sheet SpectralDataSheet_Mark_Magellan_Direct_35K_80CRI.pdf MAGELLAN DIRECT 35K 80CRI 5/4/2023 View
    Spectral Data Sheet SpectralDataSheet_Mark_Magellan_Direct_35K_90CRI.pdf MAGELLAN DIRECT 35K 90CRI 5/12/2023 View
    Spectral Data Sheet SpectralDataSheet_Mark_Magellan_Direct_40K_80CRI.pdf MAGELLAN DIRECT 40K 80CRI 5/4/2023 View
    Spectral Data Sheet SpectralDataSheet_Mark_Magellan_Direct_40K_90CRI.pdf MAGELLAN DIRECT 40K 90CRI 5/12/2023 View
    Spectral Data Sheet SpectralDataSheet_Mark_Magellan_Direct_50K_80CRI.pdf MAGELLAN DIRECT 50K 80CRI 5/4/2023 View
    Spectral Data Sheet SpectralDataSheet_Mark_Magellan_Direct_50K_90CRI.pdf MAGELLAN DIRECT 50K 90CRI 5/12/2023 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions MRK_MGLR_Ceiling Recessed_912-00466-002.pdf Magellan Ceiling Recessed 5/30/2024 View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet MGLR_Repair Kits_05-24-24.pdf MGLR Replacement Kits 5/24/2024 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures MRK_1442221.07_Magellan brochure_0323_SPREADS.pdf Magellan Brochure 6/19/2023 View
    Brochures MRK_1442221.11_Magellan_Acoustic_Colors_WEB.pdf Magellan Felt Color Sample Card 6/19/2023 View
    Brochures MRK_1442221.12_Magellan Family Cross Reference_Web.pdf Magellan Family Cross Reference 6/19/2023 View
