Legacy D-Series Area Size 2

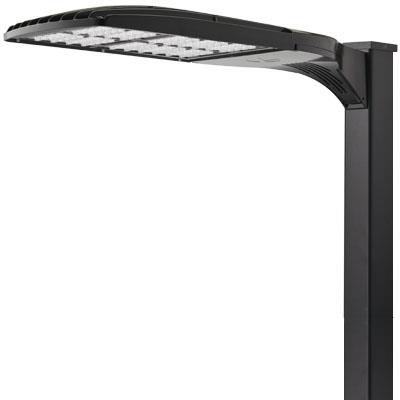

Legacy DSX2 LED Area Luminaire Discontinued
    Buy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 10,700 LM, 11,600 LM, 11,700 LM, 12,000 LM, 12,900 LM, 13,000 LM, 13,100 LM, 13,600 LM, 14,400 LM, 14,700 LM, 14,900 LM, 15,200 LM, 15,500 LM, 15,700 LM, 16,000 LM, 16,400 LM, 16,600 LM, 16,800 LM, 17,100 LM, 17,200 LM, 17,500 LM, 17,600 LM, 17,800 LM, 18,100 LM, 18,300 LM, 18,400 LM, 18,600 LM, 18,800 LM, 18,900 LM, 19,000 LM, 19,200 LM, 19,300 LM, 19,500 LM, 19,700 LM, 19,800 LM, 19,900 LM, 20,000 LM, 20,100 LM, 20,300 LM, 20,400 LM, 20,500 LM, 20,600 LM, 20,700 LM, 21,200 LM, 21,300 LM, 21,500 LM, 21,600 LM, 21,700 LM, 21,800 LM, 21,900 LM, 22,000 LM, 22,100 LM, 22,200 LM, 22,300 LM, 22,400 LM, 22,500 LM, 23,000 LM, 23,100 LM, 23,200 LM, 23,300 LM, 23,400 LM, 23,500 LM, 23,700 LM, 24,000 LM, 24,100 LM, 24,300 LM, 24,400 LM, 24,800 LM, 24,900 LM, 25,000 LM, 25,100 LM, 25,200 LM, 25,300 LM, 25,400 LM, 25,500 LM, 25,600 LM, 25,700 LM, 25,800 LM, 25,900 LM, 26,000 LM, 26,200 LM, 26,300 LM, 26,900 LM, 27,100 LM, 27,200 LM, 27,300 LM, 27,400 LM, 27,500 LM, 27,600 LM, 27,700 LM, 27,800 LM, 27,900 LM, 28,000 LM, 28,200 LM, 28,300 LM, 28,400 LM, 28,500 LM, 28,600 LM, 28,700 LM, 28,900 LM, 29,100 LM, 29,300 LM, 29,400 LM, 29,500 LM, 29,700 LM, 29,800 LM, 29,900 LM, 30,000 LM, 30,100 LM, 30,300 LM, 30,400 LM, 30,500 LM, 30,700 LM, 30,900 LM, 31,000 LM, 31,100 LM, 31,500 LM, 31,900 LM, 32,000 LM, 32,200 LM, 32,300 LM, 32,400 LM, 32,500 LM, 32,600 LM, 32,700 LM, 32,800 LM, 32,900 LM, 33,000 LM, 33,100 LM, 33,200 LM, 33,300 LM, 33,400 LM, 33,500 LM, 33,700 LM, 33,800 LM, 33,900 LM, 34,200 LM, 34,400 LM, 34,500 LM, 34,700 LM, 34,800 LM, 34,900 LM, 35,000 LM, 35,100 LM, 35,200 LM, 35,300 LM, 35,400 LM, 35,800 LM, 36,300 LM, 36,600 LM, 36,700 LM, 36,800 LM, 36,900 LM, 37,100 LM, 37,300 LM, 37,400 LM, 37,600 LM, 37,700 LM, 37,800 LM, 37,900 LM, 38,000 LM, 38,100 LM, 38,400 LM, 38,500 LM, 38,600 LM, 38,800 LM, 39,100 LM, 39,200 LM, 39,300 LM, 39,400 LM, 39,500 LM, 39,600 LM, 39,700 LM, 39,900 LM, 40,000 LM, 40,100 LM, 40,300 LM, 40,400 LM, 40,700 LM, 40,800 LM, 40,900 LM, 41,200 LM, 41,300 LM, 41,400 LM, 41,500 LM, 41,700 LM, 41,800 LM, 42,000 LM, 42,100 LM, 42,200 LM, 42,300 LM, 42,400 LM, 42,500 LM, 42,600 LM, 42,700 LM, 42,800 LM, 42,900 LM, 43,000 LM, 43,100 LM, 43,200 LM, 43,400 LM, 43,600 LM, 44,000 LM, 44,300 LM, 44,400 LM, 44,600 LM, 44,700 LM, 45,000 LM, 45,200 LM, 45,500 LM, 45,600 LM, 45,700 LM, 45,800 LM, 45,900 LM, 46,000 LM, 46,100 LM, 46,200 LM, 46,400 LM, 46,500 LM, 46,700 LM, 46,800 LM, 46,900 LM, 47,000 LM, 47,100 LM, 47,300 LM, 47,400 LM, 47,500 LM, 47,600 LM, 47,700 LM, 47,800 LM, 47,900 LM, 48,000 LM, 48,100 LM, 48,300 LM, 48,400 LM, 48,800 LM, 49,100 LM, 49,200 LM, 49,300 LM, 49,700 LM, 49,800 LM, 50,000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Product Type Area Light
Compliance Listing BAA and BABA
Environmental Listing IP65
Regulatory Listing C-UL-US
Dimming Protocol 0-10V
Fixture Wattage 139, 140, 156, 158, 180, 185, 198, 205, 207, 217, 218, 224, 247, 254, 270, 272, 276, 321, 322, 341, 343, 344, 346, 396, 398, 405, 406, 407, 411, 414, 431, 438, 472
Voltage Rating 120, 120-277, 208, 240, 277, 277-480, 347, 480
Color Beige, Black, Bronze, Gray, Green, Silver, White
Mounting Type Pole Mount
Series DSX2

Read More Read Less

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet DSX2 LED AMBER G1.pdf Legacy DSX2 LED AMBER Area Luminaire 11/22/2022 View
    Spec Sheet DSX2 LED G1.pdf Legacy DSX2 LED Area Luminaire 11/28/2023 View
    View Product

    Need a Stocked Product?

    View Now

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions INST SHT DSX EGS G1 LED RJ521406 REV B PSL11.pdf INST SHT DSX EGS G1 LED 8/1/2022 View
    Installation Instructions INST SHT DSX G1 LE REPLACE REV B PSL11.pdf INST SHT DSX G1 LE REPLACE REV B PSL11 8/1/2022 View
    Installation Instructions INST SHT DSX G1 PIRHNRD 8 9 22.pdf DSX0, 1, 2 G1 PIRHNRD installation instructions 8/9/2022 View
    Installation Instructions INST SHT DSX LED G1 RJ521340 REV L PSL11 8-1-22.pdf DSX1_2 Instruction sheet LED G1 8/3/2022 View
    Installation Instructions INST SHT DSX2BS LED G1 LED RJ521374 REV B PSL11.pdf INST SHT DSX2BS LED G1 8/2/2022 View
    Installation Instructions INST SHT PUMBA.pdf Instruction Sheet Pumba, Rev B 7/31/2018 View
    Installation Instructions INST SHT WBA 2018 RJ521505 REV D.pdf Installation Instructions for wall bracket (WBA) 8/8/2022 View
    Technical Bulletins Legacy DSX (G1) to New DSX - Crossover Guide.pdf Crossover Guide for Legacy DSX (G1) to New DSX 8/21/2024 View
    Templates TD-drill--8 Aeris pole drill template #8 11/20/2019 View
    Templates TD-drill--9 Aeris wall drill template #9 1/7/2019 View
