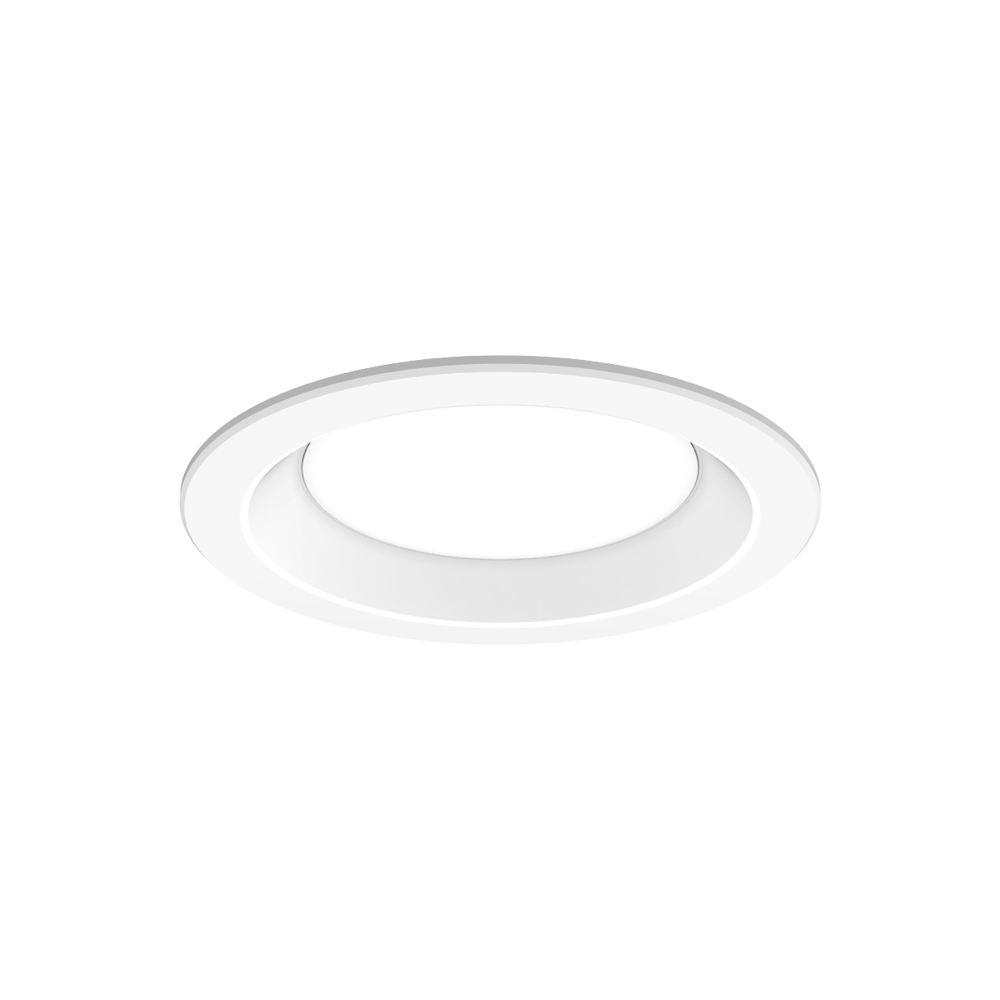

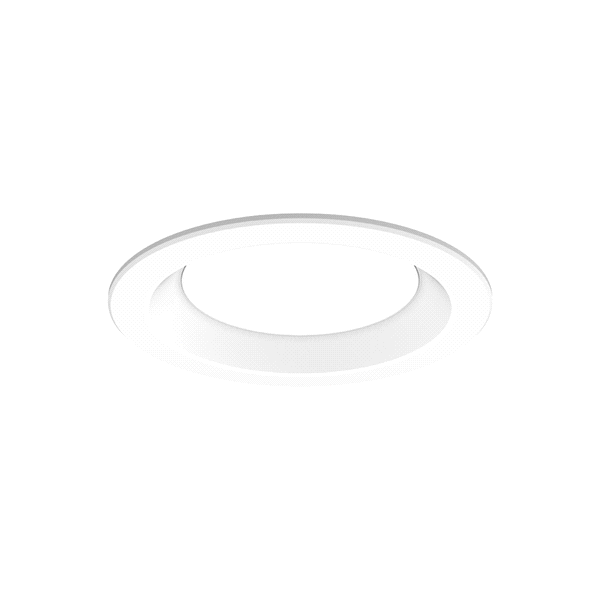

EVO® 4" Round Healthcare

General Illumination LED Downlight & Wall Wash for MRI, Patient Room, and Surgical Suite
    WarmDimTunable WhiteBuy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Aperture Size 4 IN
Shape Round
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White, Warm Dimming
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Variable
CRI 85, 90
Product Type Housing
Compliance Listing BAA and BABA, Chicago Plenum, Low UGR
Environmental Listing IP64, IP66, Nonferrous, NSF, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI
Fixture Wattage 23, 28
Voltage Rating 120, 120-277, 277

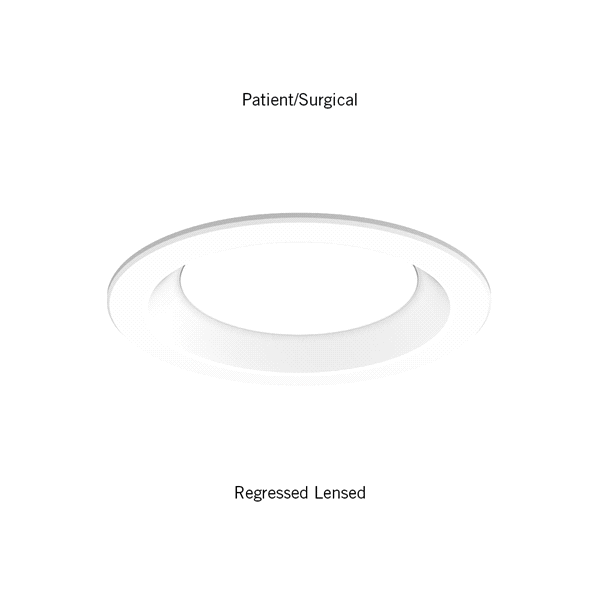

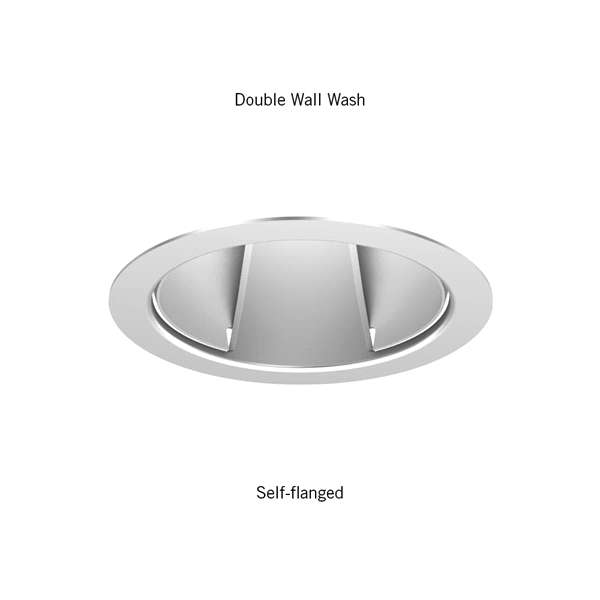

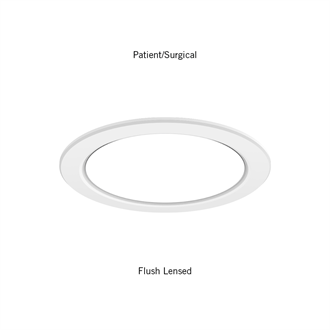

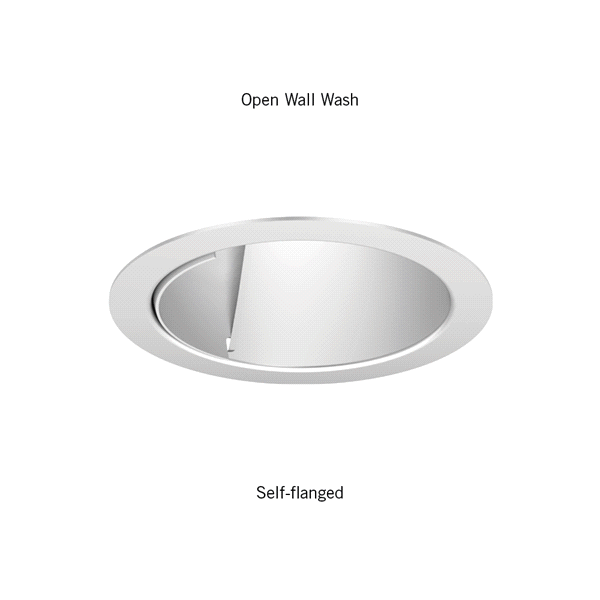

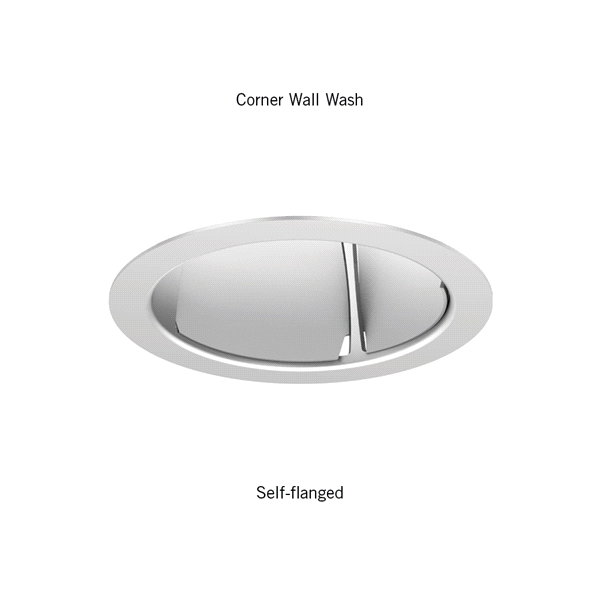

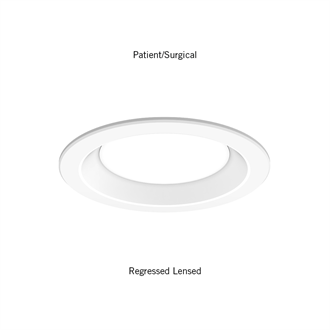

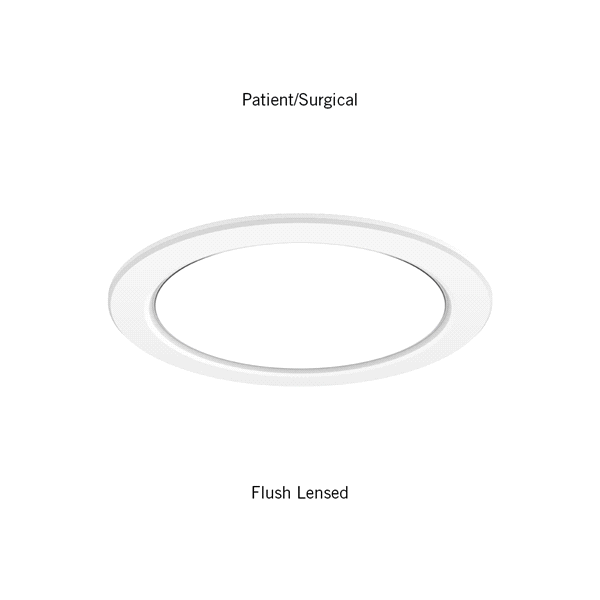

Trim Style Cone, Corner Wallwash, Double Wallwash, Lensed, Open, Single Wallwash
Color Black, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Special Applications Healthcare, MRI, Patient Room, Special Applications, Surgical Suite

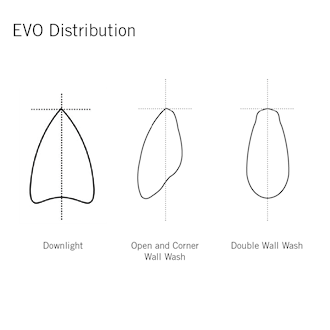

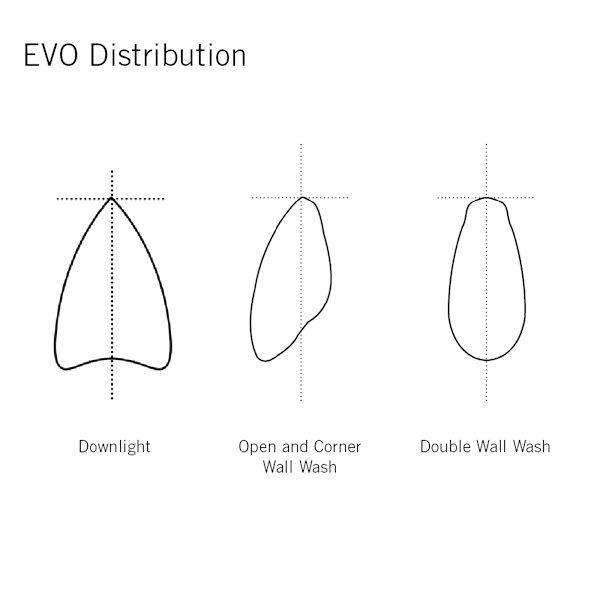

Function Downlight, Wall Wash
Product Series EVO
Series EVO4SG, EVORDB, EVO4MWW, EVO4MDWW, EVO4MCWW, EVO4P, EVO4M

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet EVO4M.pdf EVO 4" MRI Downlight 9/24/2024 View
    Spec Sheet EVO4MWW.pdf EVO 4" MRI Open, Corner & Double Wall Wash 9/24/2024 View
    Spec Sheet EVO4P.pdf EVO 4" Patient Room Downlight 11/16/2022 View
    Spec Sheet EVO4P-NTUNE.pdf EVO 4” Patient Room with nTune Tunable White & Warm Dimming 10/31/2022 View
    Spec Sheet EVO4SG.pdf EVO 4" Surgical Suite Downlight 12/12/2022 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Sheet Gotham Lighting EVO4 40K 80CRI.pdf EVO4 40K 80CRI 6/17/2024 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4 30K 90CRI.pdf EVO4 30K 90CRI 10/25/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4 35K 90CRI.pdf EVO4 35K 90CRI 9/8/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4 40K 90CRI.pdf EVO4 40K 90CRI 6/17/2024 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4-EVO6 35K 80CRI.pdf EVO4 35K 80CRI 9/8/2022 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ5201007 EVO 4"/6"/8" Open, Wall Wash and Shower Trims 4/29/2019 View

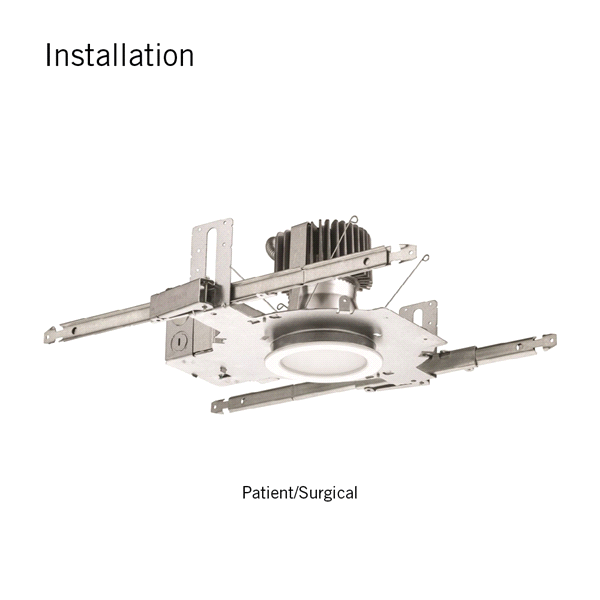

    Installation Instructions CJ5201070 EVO Spec App Install Sheet.pdf EVO 4"/6" Surgical Suite Housing and Trim 4/24/2019 View
    Installation Instructions CTAEVO4-6.pdf EVO 4"/6" Ceiling Thickness Adap tor for Unibody frame 1/13/2022 View
    Installation Instructions EVO_RD_FRAME_INSTALL_CJ5201006_pdf.pdf EVO 4"/6"/8" Housing 10/18/2021 View

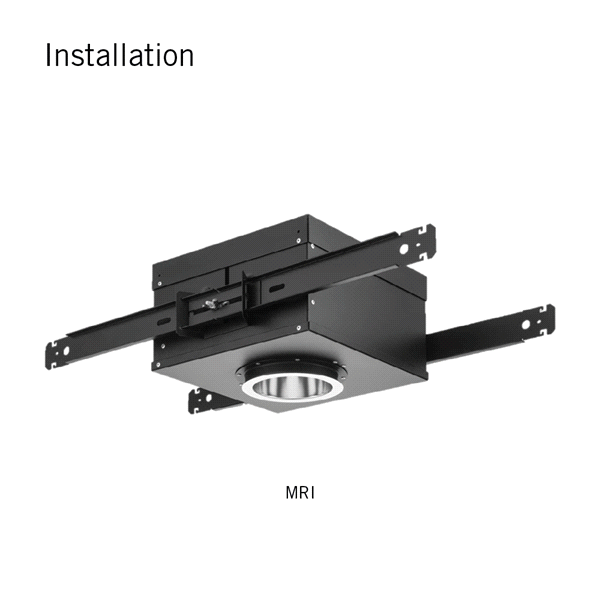

    Installation Instructions EVOMRI_EVORDB_ Instruc_CJ5200931.PDF EVO 4"/6" MRI Housing with Remote Driver Box 1/28/2020 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Sell Sheet EVO MRI Sell Sheet EVO MRI Sell Sheet 9/23/2019 View
    Sell Sheet EVO Patient Room Sell Sheets EVO Patient Room Sell Sheet 9/30/2019 View
    Sell Sheet EVO Surgical Sell Sheet EVO Surgical Sell Sheet 5/31/2018 View
