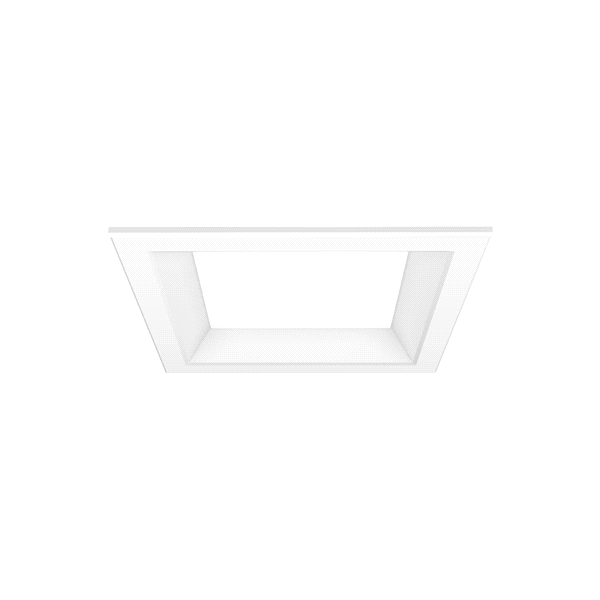

EVO® 4" Square Shower

General Illumination LED New Construction Downlight for Shower
    WarmDimTunable WhiteBuy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Aperture Size 4 IN
Shape Square
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White, Warm Dimming
Lumens 1000 LM, 1500 LM, 2000 LM, 2500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Variable
CRI 85, 90
Product Type Downlight
Compliance Listing BAA and BABA, Chicago Plenum, Low UGR
Environmental Listing IP66, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI
Voltage Rating 120, 120-277, 277

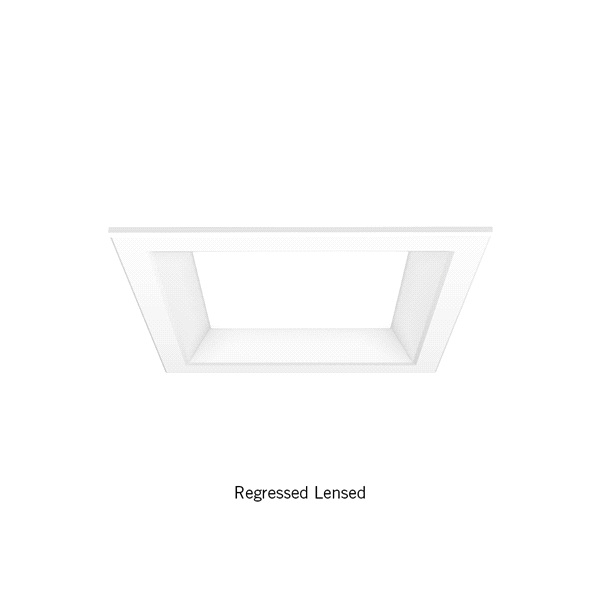

Trim Style Lensed
Color Black, White
Mounting Type Recessed
Special Applications Education, Healthcare, Hospitality, Residential, Shower, Special Applications, Sports and Recreation
Function Downlight
Product Series EVO
Series EVO4SQSH

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet EVO4SQSH.pdf EVO 4" Shower Downlight 11/21/2022 View
    Spec Sheet EVO4SQSH-NTUNE.pdf EVO 4" Shower Downlight with nTune Tunable White & Warm Dimming 4/28/2021 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Sheet Gotham Lighting EVO4 40K 80CRI.pdf EVO4 40K 80CRI 6/17/2024 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4 30K 90CRI.pdf EVO4 30K 90CRI 10/25/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4 35K 90CRI.pdf EVO4 35K 90CRI 9/8/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4 40K 90CRI.pdf EVO4 40K 90CRI 6/17/2024 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4-EVO6 35K 80CRI.pdf EVO4 35K 80CRI 9/8/2022 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ5201071 EVO SQ Spec App Install Sheet.pdf EVO 4"/6" Surgical Suite Housing and Trim 7/3/2018 View
    Installation Instructions EVO_SQ_SQLW_FRAME_INSTALL_CJ5201108_pdf.pdf EVO 4"/6" Housing 4/24/2019 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Sell Sheet EVO Shower Sell Sheet.pdf EVO Shower Sell Sheet 11/13/2019 View
