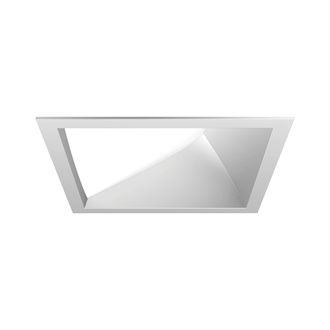

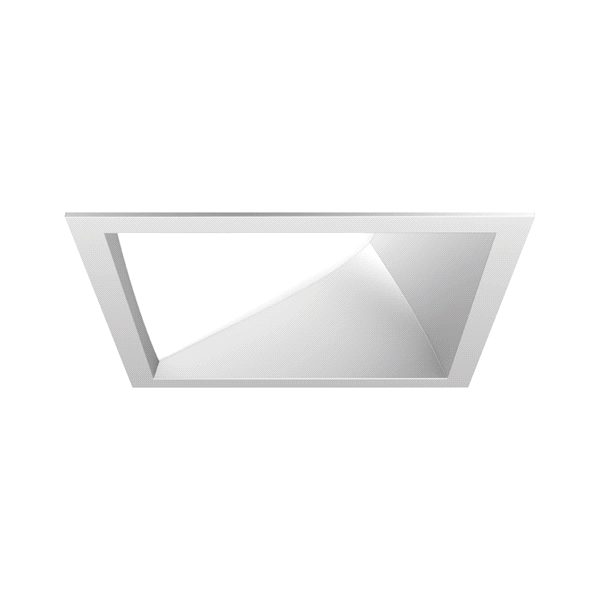

EVO® 6" Square Wall Wash

General Illumination LED Wall Wash
    WarmDimTunable WhiteBuy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Aperture Size 6 IN
Shape Square
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White, Warm Dimming
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM, 5000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Variable
CRI 85, 90
Product Type Downlight
Compliance Listing BAA and BABA, Chicago Plenum, Low UGR
Environmental Listing Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Digital, DMX
Voltage Rating 120, 120-277, 277, 347, DC2DC 57VDC

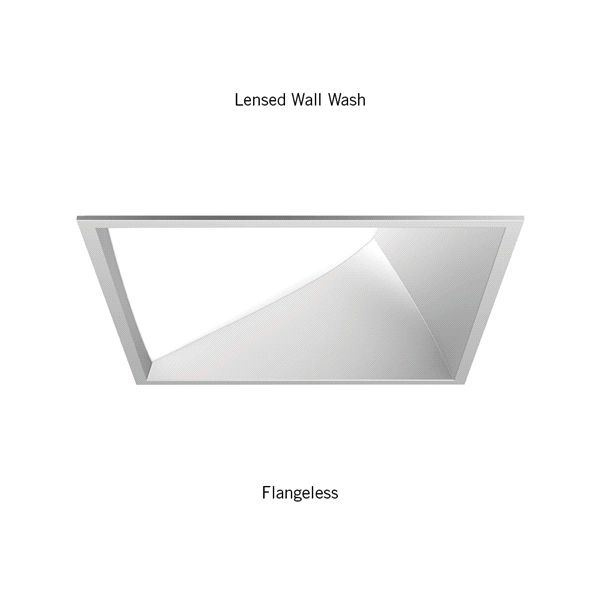

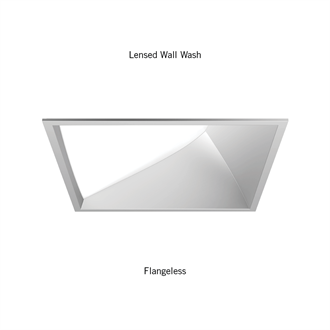

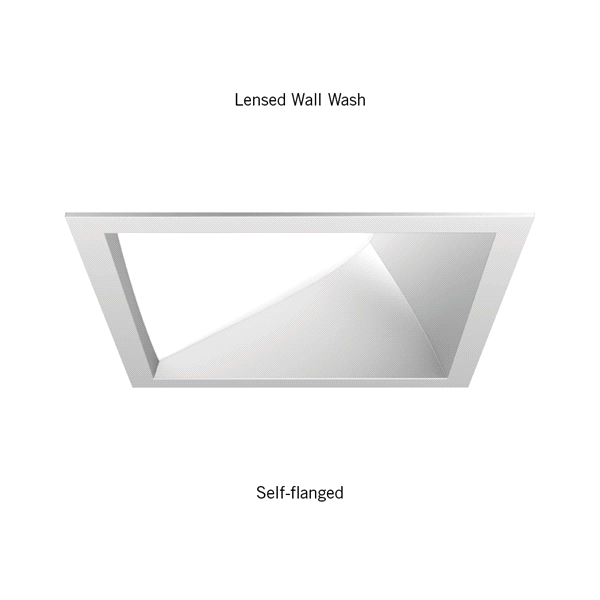

Trim Style Single Wallwash
Color Black, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Special Applications Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail

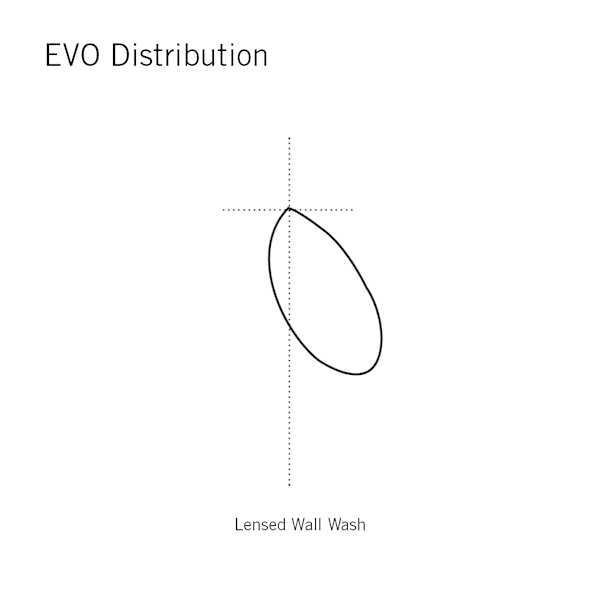

Function Wall Wash
Product Series EVO
Series EVO6SQLW

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet EVO6SQLW.pdf EVO 6" Lensed Wall Wash 2/20/2024 View
    Spec Sheet EVO6SQLW-NTUNE.pdf EVO 6" Lensed Wall Wash with nTune Tunable White & Warm Dimming 11/1/2022 View
    Spec Sheet Gotham-EVO6SQLW-DC2DC.pdf General Illumination LED Wall Wash with DC2DC Architecture 1/31/2024 View
    Spec Sheet Gotham-EVO6SQLW-NTUNE-DC2DC.pdf General Illumination LED Wall Wash with NTUNE & DC2DC Architecture 7/7/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Sheet Gotham Lighting EVO6 40K 80CRI.pdf EVO6 40K 80CRI 8/22/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO6 35K 80CRI.pdf EVO6 35K 80CRI 8/22/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO6 35K 90CRI.pdf EVO6 35K 90CRI 8/22/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO6 40K 90CRI.pdf EVO6 40K 90CRI 5/29/2024 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO6 TUWH RHYR 90CRI.pdf EVO6 TUWH 90CRI 5/29/2024 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00376-003 - INSTALLATION INSTRUCTIONS, DC2DC UNIVERSAL SUPPLEMENTAL.pdf DC2DC Supplemental Installation Sheet 5/16/2023 View
    Installation Instructions EVO_Flangeless_CJ5200914_REV-A_pdf.pdf EVO 6" Flangeless Mud Ring 4/24/2019 View

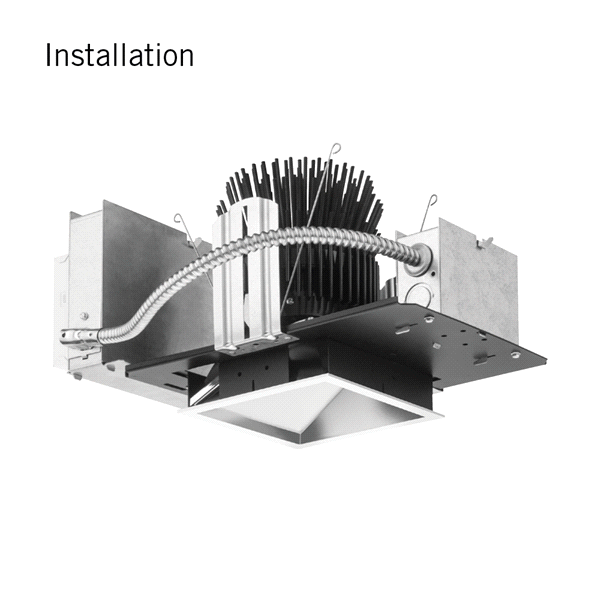

    Installation Instructions EVO_SQ_SQLW_FRAME_INSTALL_CJ5201108_pdf.pdf EVO 4"/6" Housing 4/24/2019 View
    Installation Instructions EVO_SQ_TRIM_INSTALL_CJ520182_pdf.pdf EVO 4"/6" Open and Lensed Wall Wash Trims 7/11/2023 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Sell Sheet EVO Square Lensed Wall Wash Sell Sheet EVO Square Lensed Wall Wash Sell Sheet 9/30/2019 View
