Gotham Lighting

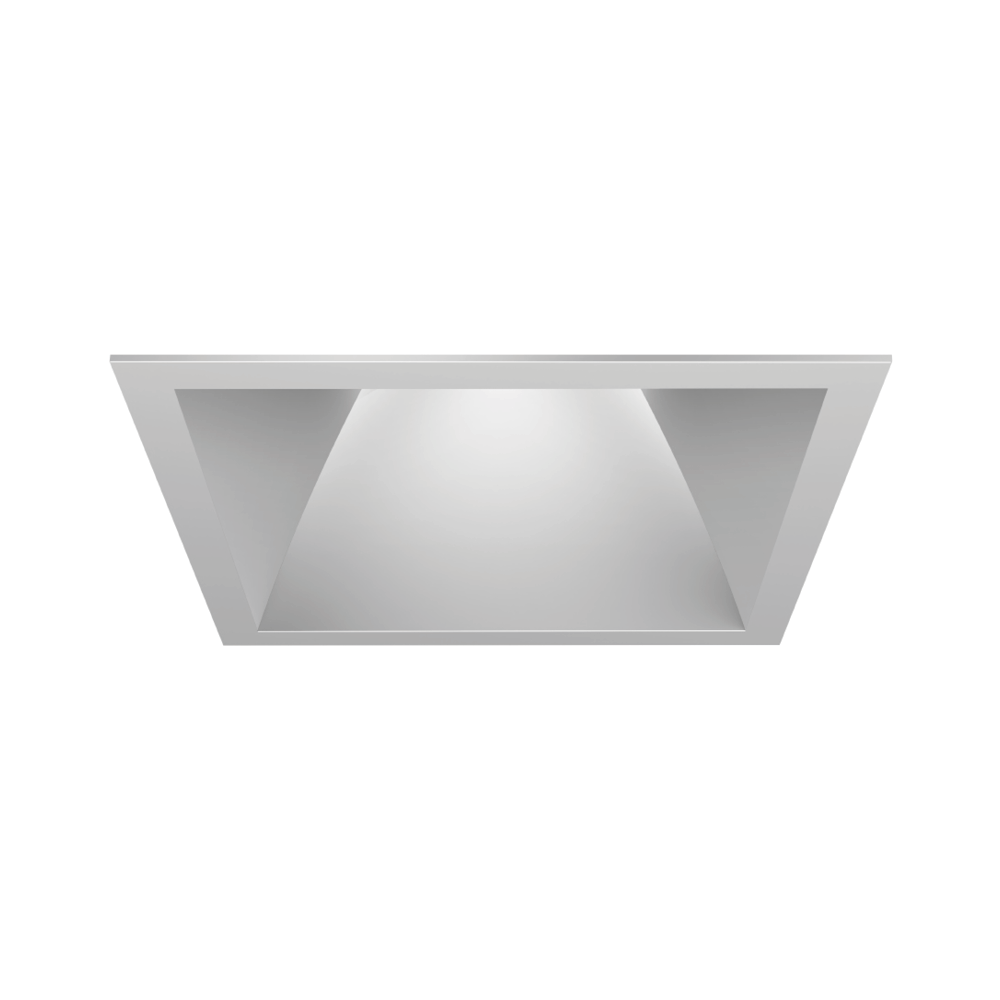

EVO® 6" Square Downlight

General Illumination LED Downlight
    WarmDimTunable WhiteEnergy Star®Buy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Aperture Size 6 IN
Shape Square
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White, Warm Dimming
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM, 5000 LM, 6000 LM, 8000 LM, 10,000 LM, 12,000 LM, 15,000 LM, 17,500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Variable
CRI 85, 90
Product Type Downlight
Compliance Listing BAA and BABA, Chicago Plenum, ENERGY STAR®, Low UGR
Environmental Listing IP66, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Digital, DMX, Forward Phase
Voltage Rating 120, 120-277, 277, 347, DC2DC 57VDC
Trim Style Lensed, Open
Color Black, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Special Applications Education, Government, Healthcare, Hospitality, House of Worship, Offices & Banks, Residential, Retail, Shower, Special Applications, Sports and Recreation
Function Downlight
Product Series EVO
Series EVO6SQ, EVO6SQSH

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet EVO6SQ.pdf EVO 6" Square Open Downlight 10/22/2024 View
    Spec Sheet EVO6SQ-DC2DC.pdf EVO 6" Square General Illumination Downlight DC2DC Architecture 1/31/2024 View
    Spec Sheet EVO6SQ-NTUNE.pdf EVO 6" Square Open Downlight with nTune Tunable White & Warm Dimming 4/29/2021 View
    Spec Sheet EVO6SQSH.pdf EVO 6" Shower Downlight 12/6/2022 View
    Spec Sheet EVO6SQSH-NTUNE.pdf EVO 6" Shower Downlight with nTune Tunable White & Warm Dimming 4/29/2021 View
    Spec Sheet Gotham-EVO6SQ-NTUNE-DC2DC.pdf EVO 6" Square Downlight TUWH with DC2DC Architecture 5/23/2023 View
