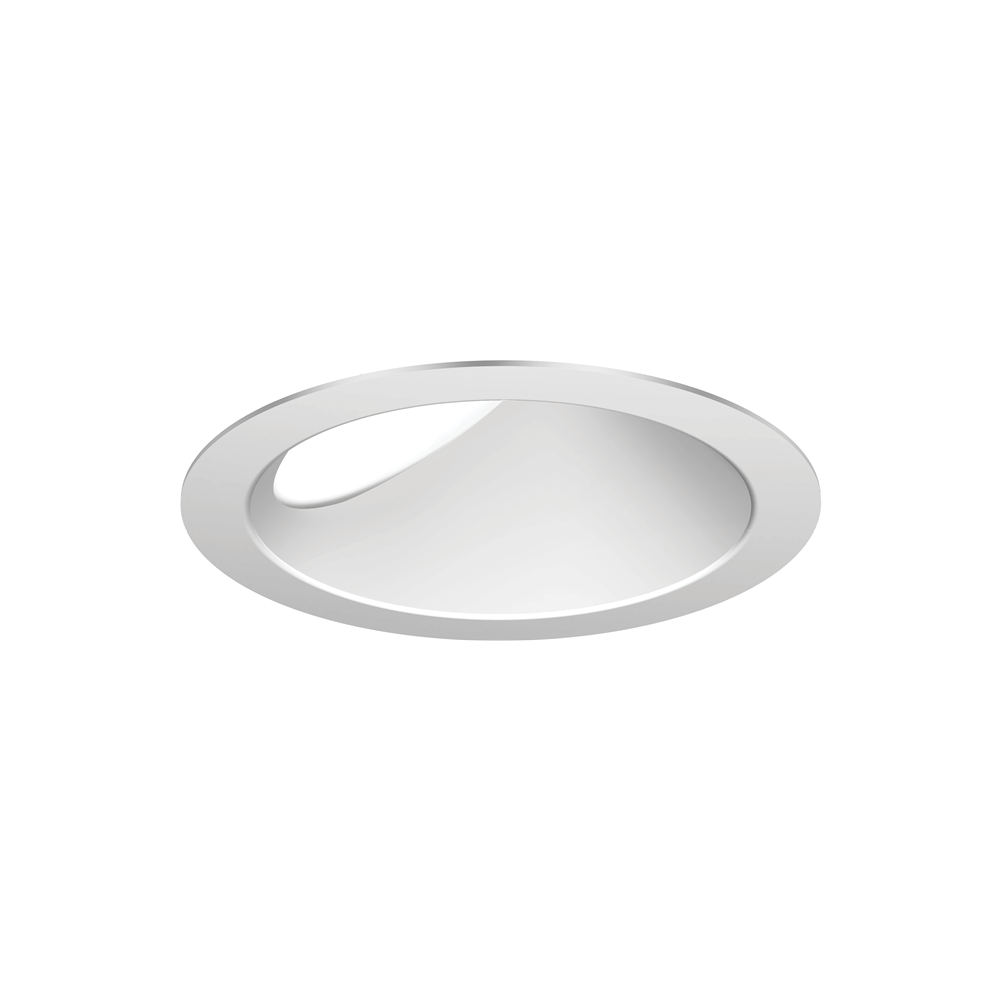

EVO® 4" Round Wall Wash

General Illumination LED Wall Wash
    WarmDimTunable WhiteColor ChangingEnergy Star®Buy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Aperture Size 4 IN
Shape Round
Light Source LED - Dynamic, LED - Static
Dynamic Feature Architainment Color, Tunable White, Warm Dimming
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1200 LM, 1500 LM, 1800 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, RGBW, Variable
CRI 85, 90
Product Type Downlight
Compliance Listing BAA and BABA, Chicago Plenum, ENERGY STAR®, Low UGR
Environmental Listing Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Digital, DMX, Forward Phase
Voltage Rating 120, 120-277, 277, 347, DC2DC 57VDC

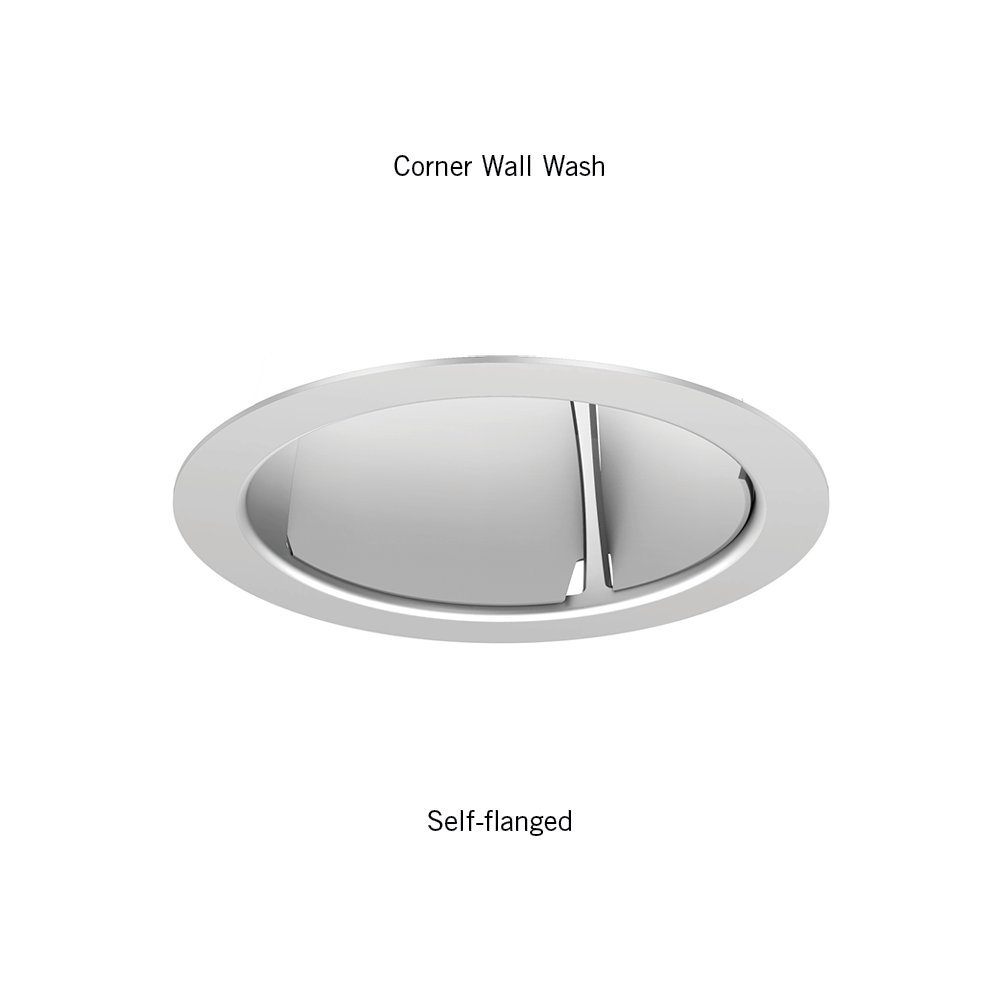

Trim Style Corner Wallwash, Double Wallwash, Single Wallwash
Color Black, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Special Applications Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail
Function Wall Wash
Product Series EVO
Series EVO, EVO4LW, EVO4DWW, EVO4CWW, EVO4WW

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View

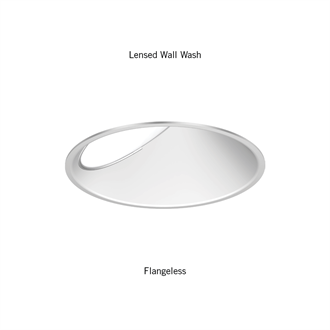

    Spec Sheet EVO4LW.pdf EVO 4" Lensed Wallwash 5/3/2023 View
    Spec Sheet EVO4LW-DC2DC.pdf EVO 4" Lensed Wall Wash Downlight DC2DC Architecture 1/31/2024 View
    Spec Sheet EVO4LW-NTUNE.pdf EVO 4" Lensed Wall Wash with nTune Tunable White and Warm Dimming 10/31/2022 View
    Spec Sheet EVO4LW-NTUNE-DC2DC.pdf EVO 4" Lensed Wall Wash nTune Tunable White with DC2DC Architecture 4/17/2023 View
    Spec Sheet EVO4WW.pdf EVO 4" Open, Corner, & Double Wall Wash 10/18/2024 View
    Spec Sheet EVO4WW-NTUNE.pdf EVO 4" Open, Corner, & Double Wall Wash with nTune Tunable White & Warm Dimming 10/31/2022 View
    Spec Sheet EVO-WW-4-ARTC.pdf EVO 4" Open, Corner & Double Wall Wash with Architainment RGBW Color 10/31/2022 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Sheet Gotham Lighting EVO4 40K 80CRI.pdf EVO4 40K 80CRI 6/17/2024 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4 30K 90CRI.pdf EVO4 30K 90CRI 10/25/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4 35K 90CRI.pdf EVO4 35K 90CRI 9/8/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4 40K 90CRI.pdf EVO4 40K 90CRI 6/17/2024 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4-EVO6 35K 80CRI.pdf EVO4 35K 80CRI 9/8/2022 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00376-003 - INSTALLATION INSTRUCTIONS, DC2DC UNIVERSAL SUPPLEMENTAL.pdf DC2DC Supplemental Installation Sheet 5/16/2023 View
    Installation Instructions CJ5200914 ICO4 Mudring Install.pdf EVO/ICO 4" Flangeless Mud Ring 2/10/2020 View
    Installation Instructions CJ5201007 EVO 4"/6"/8" Open, Wall Wash and Shower Trims 4/29/2019 View
    Installation Instructions CTAEVO4-6.pdf EVO 4"/6" Ceiling Thickness Adap tor for Unibody frame 1/13/2022 View

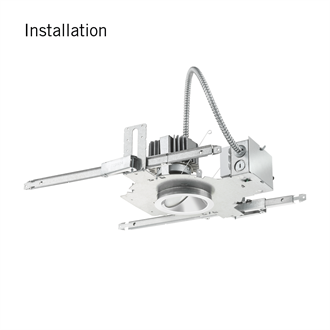

    Installation Instructions EVO_RD_FRAME_INSTALL_CJ5201006_pdf.pdf EVO 4"/6"/8" Housing 10/18/2021 View
    User Manual DMX with RDM Manual.pdf DMX with RDM Manual 9/14/2021 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Sell Sheet EVO Downlight Sell Sheet_0519_web.pdf EVO Open and Wallwash Sell Sheet 9/23/2019 View
    Sell Sheet EVO LW Sell Sheet_0519_lo.pdf EVO Lensed Wallwash Sell Sheet 9/23/2019 View
