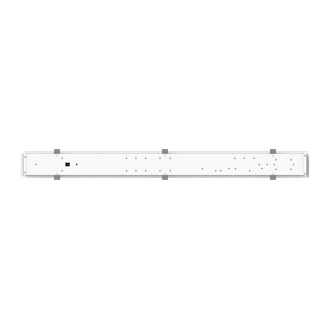

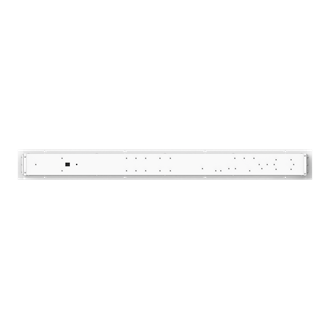

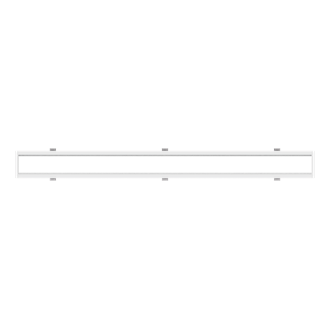

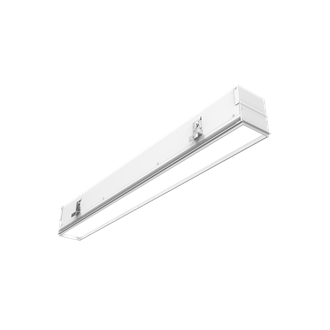

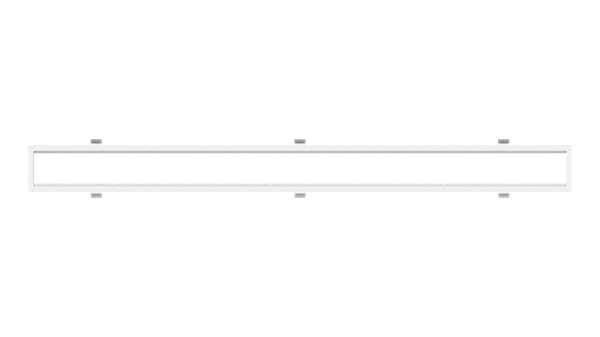

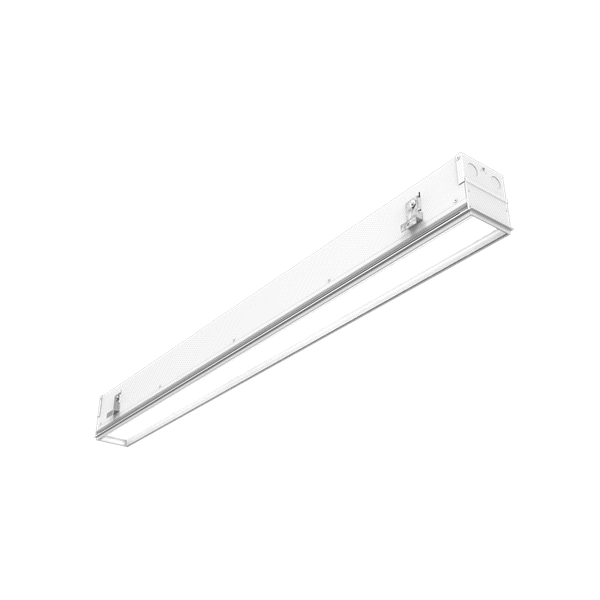

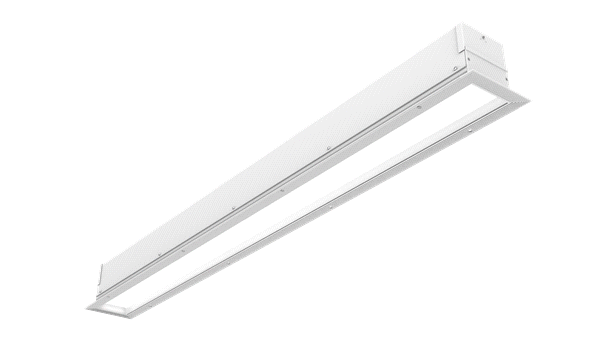

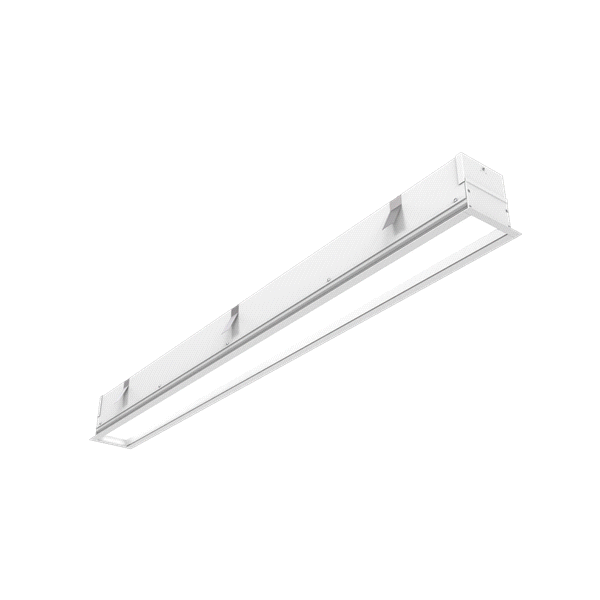

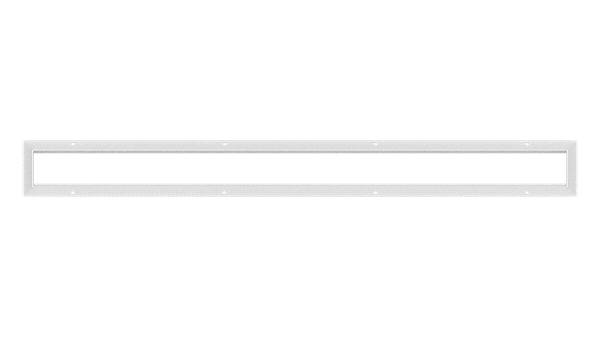

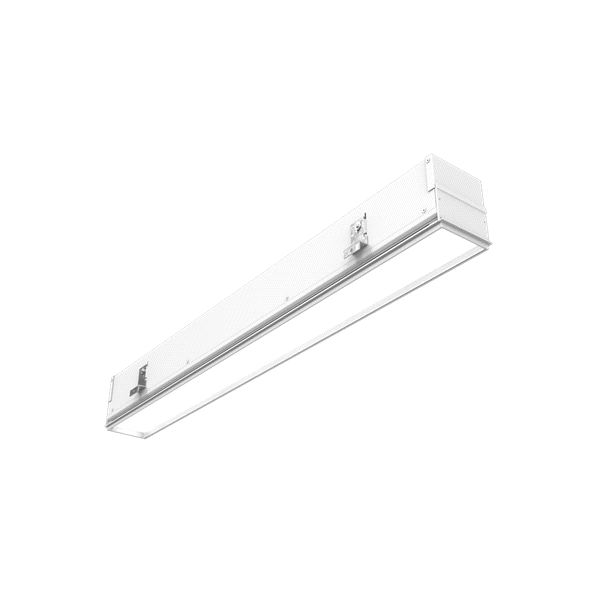

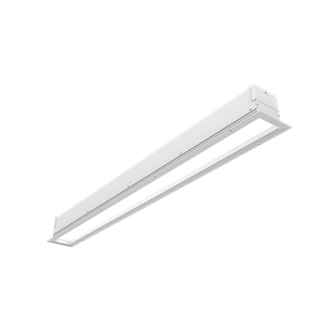

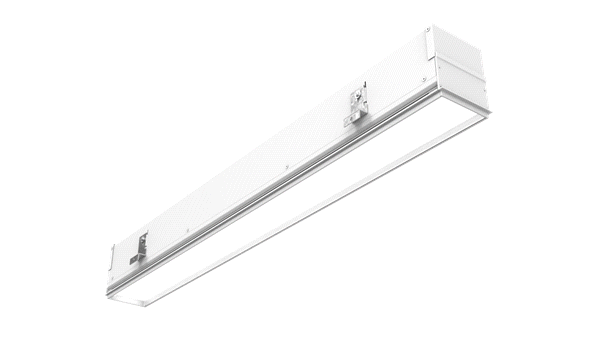

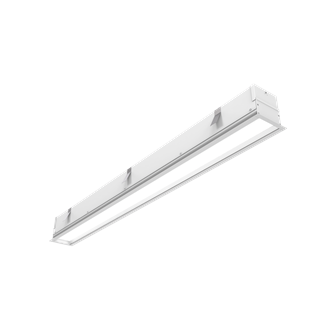

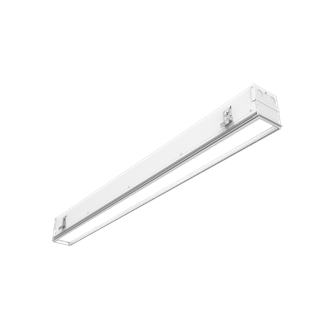

HPL Single Function in Warm Dimming

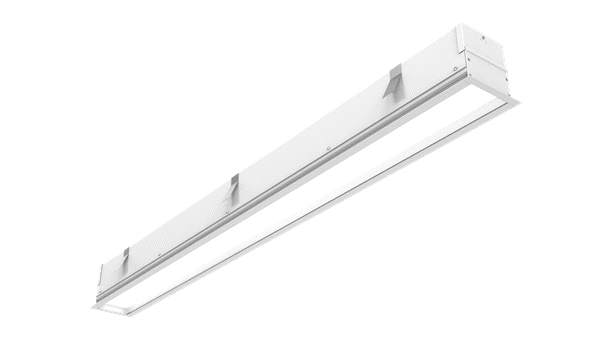

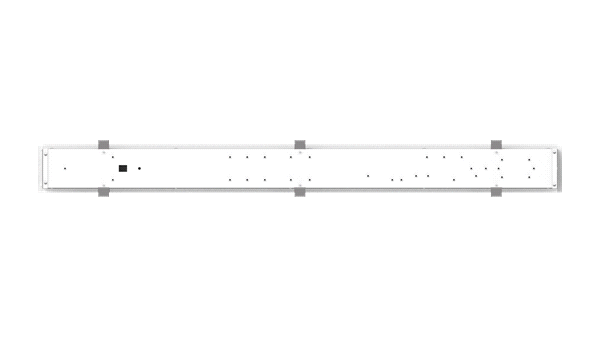

Recessed lighting solution with symmetric and asymmetric distribution
    WarmDimBuy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
Read More
Read Less
Size 2FT, 3FT, 4FT, 6FT, 8FT
Light Source LED - Dynamic
Dynamic Feature Warm Dimming
Lumens 500 LM, 750 LM, 1000 LM, 1300 LM
Product Type Linear
Compliance Listing BAA and BABA, Declare
Environmental Listing IP64, MIL-STD-461G, NSF, Wet Location
Regulatory Listing cCSAus
Dimming Protocol 0-10V
Fixture Wattage 10, 15.3, 17.1, 21.3, 22.8, 26.1, 29.3, 34.2, 34.6, 36.2, 45.6, 48.1, 49.7, 52, 66, 69, 72
Voltage Rating 120-277
Mounting Type Recessed
Series HPL

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet HPL_WDIM_SF.pdf Single Function Recessed Warm Dimming Luminaire 7/16/2024 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions HPL FLANGE (F) Installation Instructions.pdf HPL 2FT, 3FT, 4FT, 6FT & 8FT Recessed Linear Flange Mount 8/30/2021 View

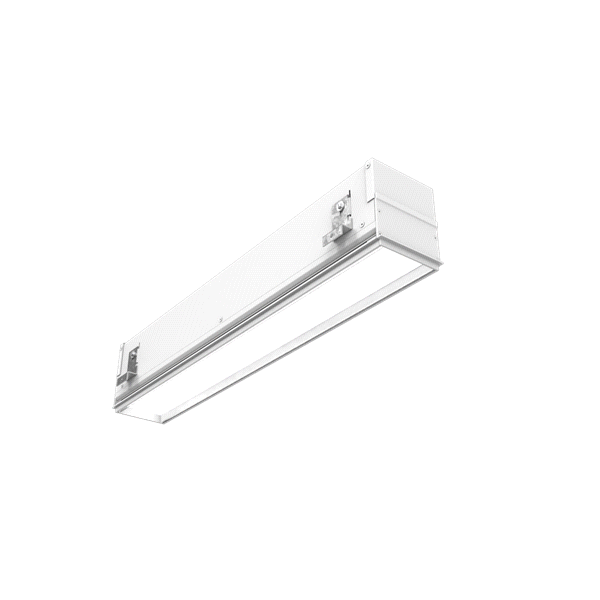

    Installation Instructions HPL GRID (G) Installation Instructions.pdf HPL 2FT, 3FT, 4FT, 6FT & 8FT Recessed Linear Grid Mount 8/30/2021 View

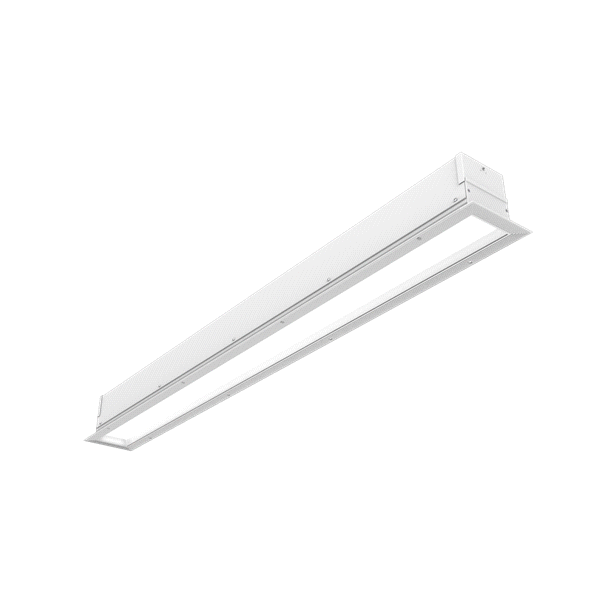

    Installation Instructions HPL MUD IN (GB) Installation Instructions.pdf HPL 2FT, 3FT, 4FT, 6FT & 8FT Recessed Linear Flangeless Sheetrock Mud-In (GB) Mount 8/30/2021 View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Installation Instructions HPL REPLACEMENT (RK) Installation Instructions.pdf HPL Replacement Part Installation Instructions 8/30/2021 View
    Replacement Part Spec Sheet HPL Warm Dimming Replacement Parts_LED_DRIVER_LENS_END PLATE.pdf HPL Single Function Warm Dimming Recessed Linear Replacement Parts 8/26/2021 View
