Lithonia Lighting
Design Select (15 days or less)
Lithonia Lighting

LBR8 Round Series

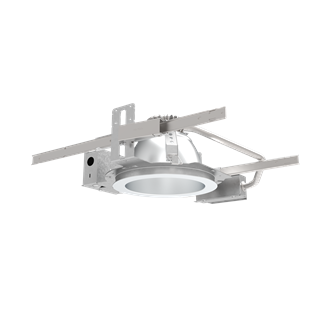

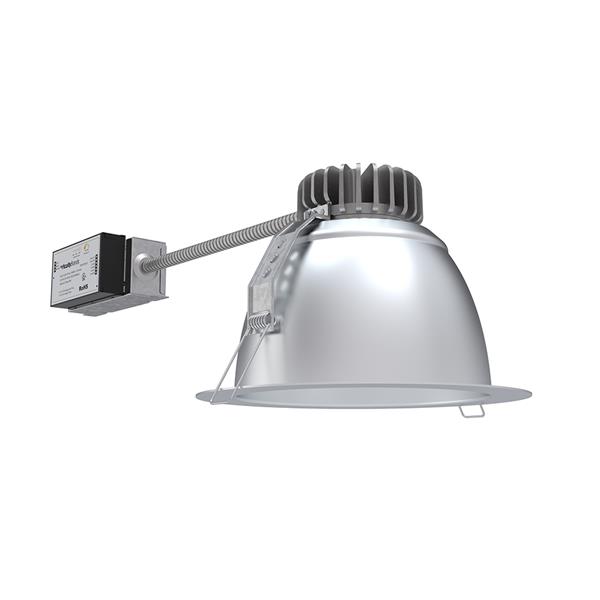

LBR 8” Round Retrofit | Remodel | New Construction Downlight
    Switchable LumensSwitchable CCTsEnergy Star®Low UGR
  • Overview
  • Specifications
Read More
Read Less
Size 8 IN
Shape Round
Light Source LED - Static
Dynamic Feature Switchable White
Lumens 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, Switchable
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Variable
CRI 80, 90
Product Type Retrofit Kit
Compliance Listing Chicago Plenum, ENERGY STAR®, Low UGR
Environmental Listing ASTM Airtight, Damp Location, IC, Wet Location
Regulatory Listing UL
Dimming Protocol 0-10V, DALI, Electronic Low Voltage, Triac
Fixture Wattage 10, 11, 11.2, 11.3, 11.6, 12.8, 13.4, 13.5, 14.2, 14.3, 14.5, 14.8, 14.9, 15.5, 15.8, 16.4, 18, 18.8, 19, 20.2, 20.3, 21, 21.8, 24.1, 25, 25.5, 25.6, 27, 27.1, 28.6, 28.7, 29.5, 31, 31.7, 32, 33.1, 33.2, 34.7, 35.4, 37.5, 37.6, 38.8, 39, 39.1, 40, 40.5, 40.6, 41.5, 43, 44, 46, 46.5, 47.5, 49, 50, 51, 52, 53, 54, 55, 6.8, 8, 8.2, 8.3, 8.53, 9, 9.75, 9.8
Voltage Rating 120, 120-277, 277, 347

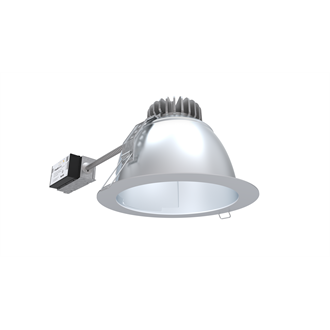

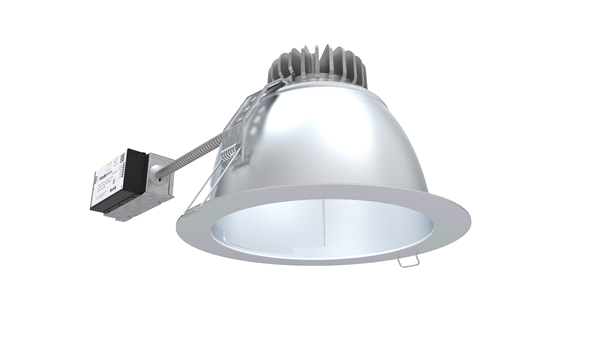

Trim Style Open, Single Wallwash
Color Black, Clear, Silver, White
Mounting Type Recessed
Series LBR8WW, LBR8

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet LBR8.pdf LBR8 Round Series 10/18/2024 View
    Spec Sheet Lithonia-LBR8 NCH-Recessed-8in-Round-Downlight.pdf LBR8 Round New Construction 3/22/2023 View
    Design Select

    Need to Configurator a Design Select Product  or Create a Submittal Spec Sheet?

    Take Me There
    View Product

    Need a Stocked Product?

    View Now

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Dimming Compatibility LBR-LDN-LDN Switchable Dimming Compatibility Dimming Compatibility Cheat Sheet 8/20/2020 View
    Installation Instructions 912-00125_C.1_LBR Installation Instructions.pdf LBR4, LBR4SQ, LBR6, LBR6SQ, LBR8 and LBR10 LED Downlight 3/28/2024 View
    Installation Instructions 912-00158-001_B.1 Smash Plate.pdf LBR4, LBR4SQ, LBR6, LBR6SQ and LBR8 Round and Square Mounting Plate 8/24/2020 View
    Installation Instructions 912-00165-001_WL Gasket.pdf LBR4, LBR4SQ, LBR6, LBR6SQ and LBR8 Round and Square Replacement Wet Location "WL" Gasket Kit 8/24/2020 View
    Installation Instructions 912-00171-001_A.3_Goof Ring Installation Instr.pdf LBR4, LBR6 and LBR8 Round Goof Ring 8/24/2020 View
    Installation Instructions 912-00185-001_A.4>LBR 8IN Frame Installation .pdf LBR8 Round New Construction Mounting Frame 8/24/2020 View
    Installation Instructions 912-00217-LBR_CP_Installation_Instructions.pdf LBR4, LBR6 and LBR8 Round LED Downlight Supplemental for Chicago Plenum "CP" 8/8/2022 View
    Installation Instructions 912-00226-LBR _347_ Installation.pdf LBR4, LBR4SQ, LBR6, LBR6SQ and LBR8 Round and Square LED Downlight Supplemental for 347 Volt 8/8/2022 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures Commercial Downlighting Product Brochure LBR and LDN Commercial Downlighting Product Portfolio Brochure 10/10/2023 View
    Brochures Commercial Downlighting School Application Guide LBR and LDN in Williams High School Application Guide 10/10/2023 View
    Sell Sheet Commercial Downlight Comparison Chart LBR and LDN Product Families Comparison Chart 10/10/2023 View
    Sell Sheet LBR Retrofit Sell Sheet LBR Retrofit Sell Sheet 10/11/2023 View
    Sell Sheet LL_398514.29_LBR New Construction Sell Sheet_0721.pdf LBR New Construction Sell Sheet 10/11/2023 View
