PXLH Low Bay

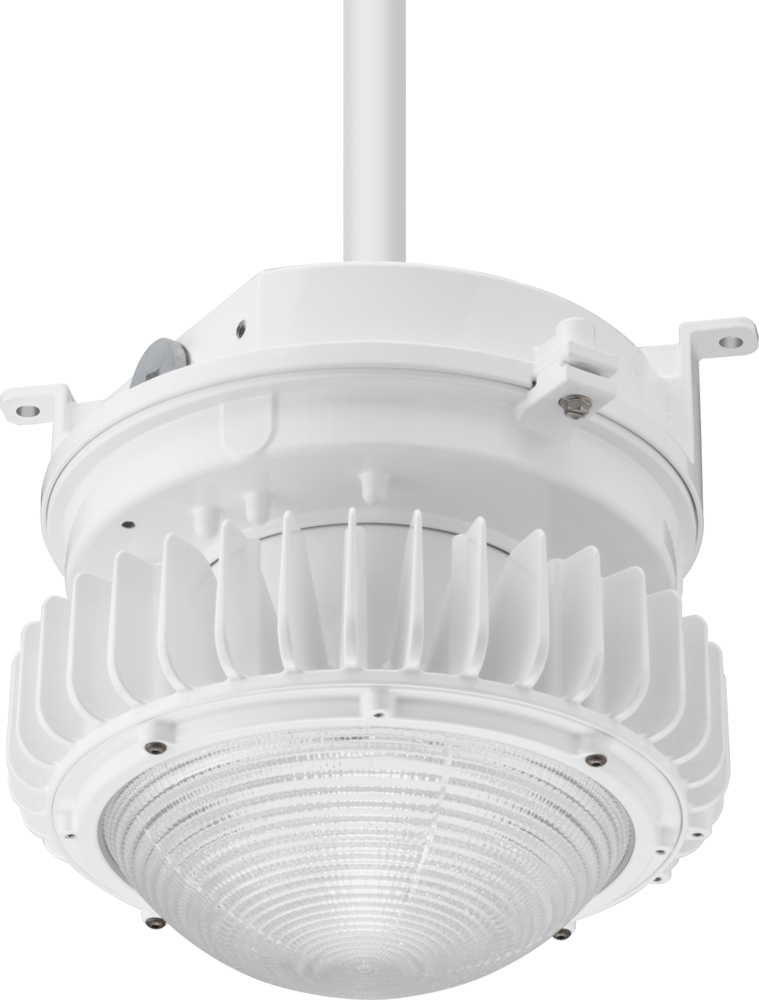

Petrolux® PXLH LED Round Hazardous Location Low Bay
    DLC PremiumCA Title 20Buy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
Read More
Read Less
Light Source LED - Static
Lumens 3000 LM, 5000 LM, 8000 LM, 10,000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70, 80, 90
Compliance Listing BAA and BABA, CA Title 20, DLC Premium, DLC Standard
Environmental Listing Class I, Div 2, Class II, Div 1, Class II, Div 2, Class III, IP65, IP66, IP67, Marine Rated, NEMA 4X, Wet Location
Regulatory Listing C-UL-US
Product Type Low Bay
Dimming Protocol 0-10V
Voltage Rating 120, 120-277, 125VDC, 208, 240, 250VDC, 277, 347, 347-480, 480
Arm Mounting Type Tenon
Mounting Type Arm Mount, Pendant, Pole Mount, Surface, Yoke
Mounting Location Ceiling, Fixture, Pole, Wall
Primary Material Aluminum
Architectural Style Traditional
Series PXLH

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet PXLH Petrolux LED Hazardous Low Bay 11/4/2024 View
    Spec Sheet PXLH_AR_ Petrolux LED Hazardous Low Bay Adapter Ring 11/4/2024 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataReport_Holophane_PXLH_30K_70CRI.pdf PXLH_30K_70CRI 11/8/2024 View
    Spectral Data Sheet SpectralDataReport_Holophane_PXLH_30K_90CRI.pdf PXLH_30K_90CRI 11/8/2024 View
    Spectral Data Sheet SpectralDataReport_Holophane_PXLH_40K_70CRI.pdf PXLH_40K_70CRI 11/8/2024 View
    Spectral Data Sheet SpectralDataReport_Holophane_PXLH_40K_80CRI.pdf PXLH_40K_80CRI 11/8/2024 View
    Spectral Data Sheet SpectralDataReport_Holophane_PXLH_50K_70CRI.pdf PXLH_50K_70CRI 11/8/2024 View
    Spectral Data Sheet SpectralDataReport_Holophane_PXLH_50K_80CRI.pdf PXLH_50K_80CRI 11/8/2024 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions BTP Sensor Programming Instruction Videos BTP Sensor Programming Video, Use QR code to access 5/23/2019 View
    Installation Instructions IM-455 PXLH Installation and Maintenance Manual 6/10/2024 View
    Installation Instructions IM-461 PXLH Adapter Ring Installation and Maintenance Manual 6/10/2024 View
    Installation Instructions IN-24 HSCK Safety Chain Accessory Kit Installation Manual 4/14/2020 View
    Material Safety Data Sheet MSDS Data Sheet for BSL310HAZSB Battery.pdf MSDS Data Sheet for BSL310HAZSB Battery 10/8/2024 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures Holophane Hazardous Lighting Guide Hazardous Lighting Product Portfolio 4/3/2023 View
    Brochures Holophane Industrial Product Portfolio Holophane Industrial Product Portfolio 9/26/2022 View
    Brochures Petrolux PXLH Hazardous Brochure Petrolux PXLH Hazardous Brochure 3/21/2019 View
