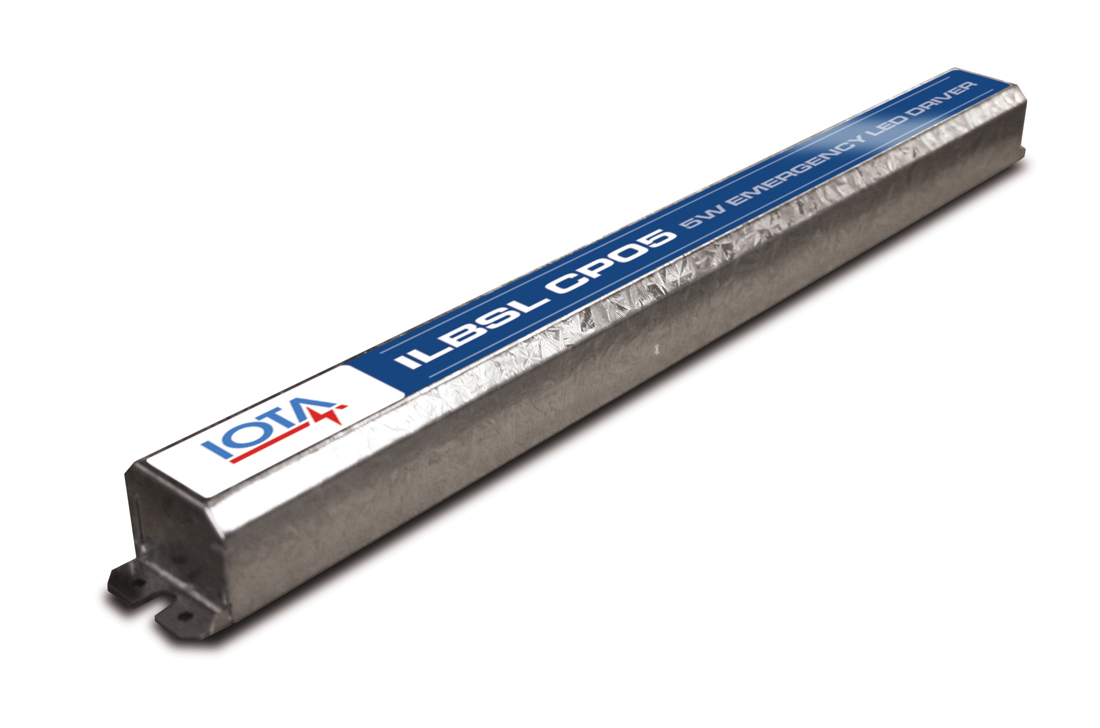

ILBSL CP05 Emergency Driver

5 Watt Constant Power, Slim Profile LED Emergency Driver
  • Overview
  • Specifications
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 10-60 VDC
Output Power 5 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing cUL, NFPA 101
Compliance Listing ROHS
Environmental Listing Damp Location
Series ILBSL

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Copy & Paste Specification Sample Specification for the ILBSL CP05 7/16/2020
    Spec Sheet ILBSL CP05 Specifications Specification Sheet for the ILB CP05 6/3/2022 View
    View Product

    Need a Stocked Product?

    View Now

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    3D Model ILBSL CP05 STEP File - 3D Model of ILBSL CP05 7/15/2020
    Accessories IP67 Test Switch Accessory for Select IOTA Drivers The IPS is an IP67-rated component purchased separately for select IOTA emergency drivers 10/6/2021 View
    Installation Instructions ILBSL Manual Installation Manual for ILBSL Models 9/24/2019 View
    Material Safety Data Sheet MSDS for nickel-cadmium drivers and ballasts Safety Data Sheet for Ni-Cad emergency battery component 5/12/2021 View
    Technical Bulletins Comprensión de la Potencia Constante Maximiza la seguridad en las salidas de emergencia utilizando potencia constante real (CP) 4/12/2021 View
    Technical Bulletins The Need for Surge Protection IOTA emergency drivers feature enhanced designs for withstanding exposure to electrical surges. 4/5/2021 View
    Technical Bulletins Understanding Constant Power Understand the benefits of IOTA's patented Constant Power emergency LED driver design 2/11/2022 View
    Wiring Diagram Dual Negative AC Driver DWG File - ILB CP with Dual Negative AC Driver 6/26/2020
    Wiring Diagram Dual Negative AC Driver PDF File - ILB CP with Dual Negative AC Driver 6/26/2020 View
    Wiring Diagram Step Down Transformer PDF File - ILB CP with Step Down Transformer 6/26/2020 View
    Wiring Diagram Step Down Transformer DWG File - ILB CP with Step Down Transformer 6/26/2020
    Wiring Diagram Typical Installation PDF File - Typical Installation with TBTS Test Accessory 6/26/2020 View
    Wiring Diagram Typical Installation DWG File - Typical Installation with TBTS Test Accessory 6/26/2020

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Application Guide Cableado del IOTA ILB CP Pasos rápidos para conectar correctamente un driver de emergencia LED IOTA a su luminaria 4/12/2021 View
    Application Guide Contractor Insider - Auto-Sense Learn how IOTA Auto-Sense simplifies selecting the proper emergency driver for LED luminaires. 2/8/2021 View
    Application Guide Contractor Insider - Emergency Lumen Output A quick guide on understanding how wattage correlates with emergency lumen output 9/15/2021 View
    Application Guide ILB CP Lumen Reference Chart Quickly identify IOTA LED Emergency Drivers that meet your desired lumen levels 8/11/2023 View
    Application Guide ILB CP Wiring Reference Guide Quick steps for properly adding an IOTA ILB CP LED Emergency Driver to your luminaire 7/8/2022 View
    Application Guide Tabla de Referencia de Lumen de ILB CP Identifique rápidamente los drivers LED de emergencia de IOTA que cumplen con los niveles de lumen deseados 4/12/2021 View
