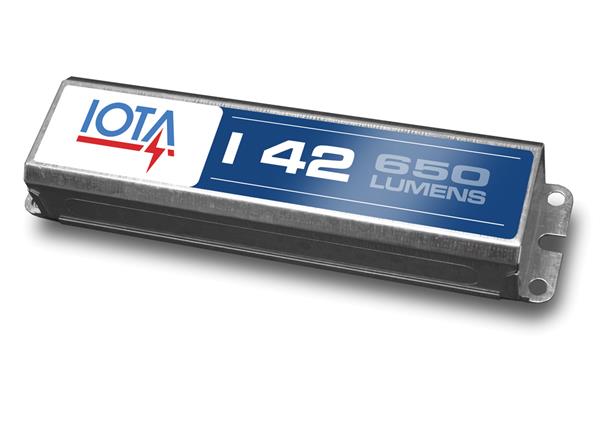

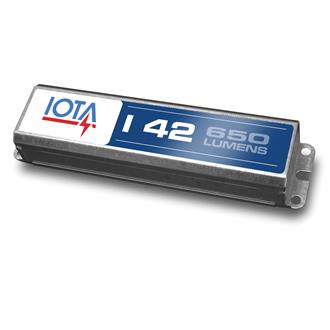

I42 Emergency Ballast

Emergency Ballast for 4-Pin LED Retrofit (TLED) and Compact Fluorescent Luminaires
  • Overview
  • Specifications
Read More
Read Less
Product Type Emergency Ballast
Voltage Rating 120/277
Frequency 60HZ
Max. Operating Temp. 50
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing C-UL-US, NFPA 101
Compliance Listing ROHS
Environmental Listing Damp Location
Series I42

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet I42 Specifications Specification Sheet for IOTA I42 Models (Series AC) 5/25/2022 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There
    View Product

    Need a Stocked Product?

    View Now

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View

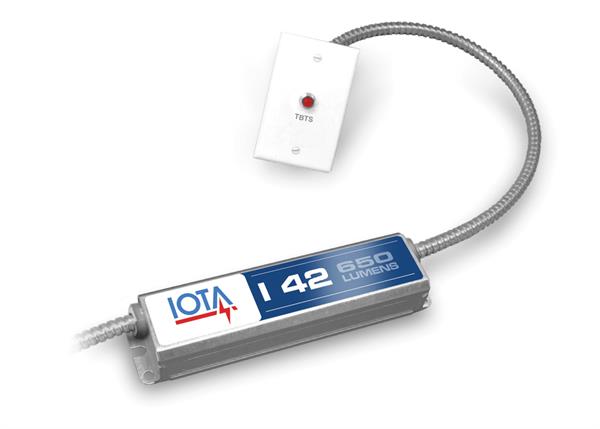

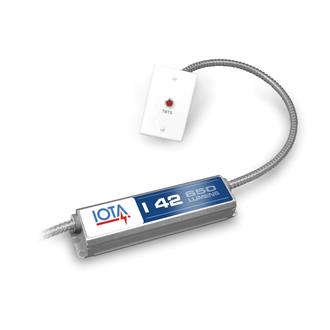

    Installation Instructions A Mounting Style I42 A - Dual Flex Mounting Style 9/19/2019 View
    Installation Instructions B Mounting Style I42 B - Integral Mounting Style 9/19/2019 View
    Installation Instructions J Mounting Style I42 J - Junction Box Mounting Style 9/19/2019 View

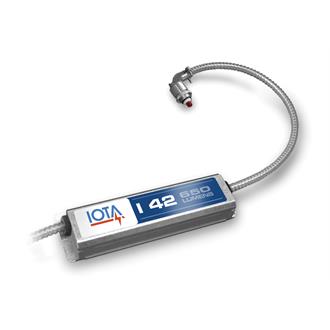

    Installation Instructions R Mounting Style I42 R - Reflector Mounting Style 9/19/2019 View
    Installation Instructions RJ Mounting Style I42 RJ - Reflector and Junction Box Mounting Style 9/19/2019 View
    Installation Instructions TM Mounting Style I42 TM - Top Mount Mounting Style 9/19/2019 View
    Material Safety Data Sheet MSDS for nickel-cadmium drivers and ballasts Safety Data Sheet for Ni-Cad emergency battery component 5/12/2021 View
    Wiring Diagram (DWG) One Lamp Rapid Start Ballast DWG Format - Connections to a one lamp luminaire with a rapid start ballast 7/7/2020
    Wiring Diagram (DWG) Two Lamp (One EM Lamp) Rapid Start Ballast DWG Format - Connections to a two lamp luminaire (one emergency lamp) with a rapid start ballast 7/7/2020
    Wiring Diagram (DWG) Two Lamp (Two EM Lamps) Rapid Start Ballast DWG Format - Connections to a two lamp luminaire (two emergency lamps) with a rapid start ballast 7/7/2020
    Wiring Diagram (PDF) One Lamp Rapid Start Ballast PDF Format - Connections to a one lamp luminaire with a rapid start ballast 7/7/2020 View
    Wiring Diagram (PDF) Two Lamp (One EM Lamp) Rapid Start Ballast PDF Format - Connections to a two lamp luminaire (one emergency lamp) with a rapid start ballast 7/7/2020 View
    Wiring Diagram (PDF) Two Lamp (Two EM Lamps) Rapid Start Ballast PDF Format - Connections to a two lamp luminaire (two emergency lamps) with a rapid start ballast 7/7/2020 View
