Petrolux Product Family

HL-Petrolux-fam-image1b

    HL-Petrolux-fam-product-image-pxlw

    PXLW Low Bay

    • Over 175 configurations on the DLC Premium or Standard Qualified Products List
    • IP65, IP66, IP67, NSF, Marine and NEMA 4X ratings
    • Corrosion-resistant paint
    • Title 20 battery pack
    • Button or NEMA twist-lock photocell
    • Patent-Pending Silicone optic in the medium and long & narrow distributions
    • Control options to meet your needs with - Bluetooth® Programmable Sensors (SBG BTP), XPoint™ or nLight® AIR wireless controls

    Go to product webpage
    View spec sheet

    HL-Petrolux-fam-product-image-pxlw-top-cap

    PXLW AR with Top Cap Adaptor

    • The ultra-lightweight PXLW Top Cap Adapter is designed to retrofit the most common low bay HID fixtures without the costly and time-consuming drawback of rewiring and replacing the full fixture.
    • Compatible with common HID fixtures including Holophane® Petrolux® II and III, PLED 1 and PLED 2
    • Single LED replacement up to 250W HID, saves up to 70% energy and practically eliminates maintenance costs
    • Reliable, long-lasting illumination throughout its 100,000-hour rated life
    • Multiple lumen packages ranging from 3,000 to 10,000 lumens

    Go to product webpage
    View spec sheet

    HL-Petrolux-fam-product-image-pxlh

    PXLH Low Bay

    • UL844 with Class 1, Division 2 Groups A, B, C, D Class 2, Division 2 Groups F and G
    • IP65, IP66, IP67, Marine, and 1G vibration rated
    • Corrosion-resistant paint
    • Button photocell
    • Patent-pending silicone and glass optics
    • DLC Premium Qualified products
    • Battery pack options
    • Available with Bluetooth® Programmable Sensors (SBG BTP)

    Go to product webpage
    View spec sheet

    HL-Petrolux-fam-product-image-pxlh-top-cap

    PXLH AR with Top Cap Adaptor

    • The hazardous rated, ultra-lightweight PXLH Top Cap Adapter is designed to retrofit the most common low bay HID fixtures without the costly and time-consuming drawback of rewiring and replacing the full fixture
    • IP65 and IP66 all versions, IP67 on most
    • Compatible with common HID fixtures including Holophane® Petrolux® II and III and HPLED
    • Single LED replacement up to 250W HID, saves up to 70% energy and practically eliminates maintenance costs
    • Reliable, long-lasting illumination throughout its 100,000-hour rated life
    • Multiple lumen packages ranging from 3,000 to 10,000 lumens

    Go to product webpage
    View spec sheet

    HL-Petrolux-fam-product-image-pxhw

    PXHW High Bay

    • Single LED replacement up to 400W HID saving energy and maintenance
    • IP65, IP66, IP67, NSF, Marine, and NEMA 4X rated
    • Rated for high ambient at 65°C
    • 12,000 to 28,000 lumens
    • Patent-pending silicone optic in multiple distributions
    • DLC Premium Qualified products
    • Control options to meet your needs with - Bluetooth® Programmable Sensors (SBG BTP), XPoint™ or nLight® AIR wireless controls

    Go to product webpage
    View spec sheet

    HL-Petrolux-fam-product-image-pxhh1

    PXHH High Bay

    • Single LED replacement up to 400W HID saving energy and maintenance
    • Rated to handle hazardous environments
    • Rated for high ambient at 65°C
    • 12,000 to 28,000 lumens
    • Patent-pending silicone optics
    • Bluetooth® Programmable Sensors (SBG BTP)

    Go to product webpage

    View spec sheet

    HL-Petrolux-fam-product-image-emx

    EMX – Heavy Industrial Linear LED Low Bay

    • CSA Ambient up to 70°C
    • Wet location listed
    • IP65, IP66, IP67, IP69K rated
    • DLC Parking Garage Certified optics
    • 10kV surge suppression standard

    Go to product webpage
    View spec sheet

    HL-Petrolux-fam-product-image-emxh

    EMXH – Hazardous Industrial Linear LED Low Bay

    • CSA Hazardous Location C1D2, C2D2, C3
    • rSBG Sensor (pictured right) for nLight® Networked Lighting Controls
    • High efficiency LEDs and drivers capable for up to 159 LPWs

    Go to product webpage
    View spec sheet

    Applications Featured

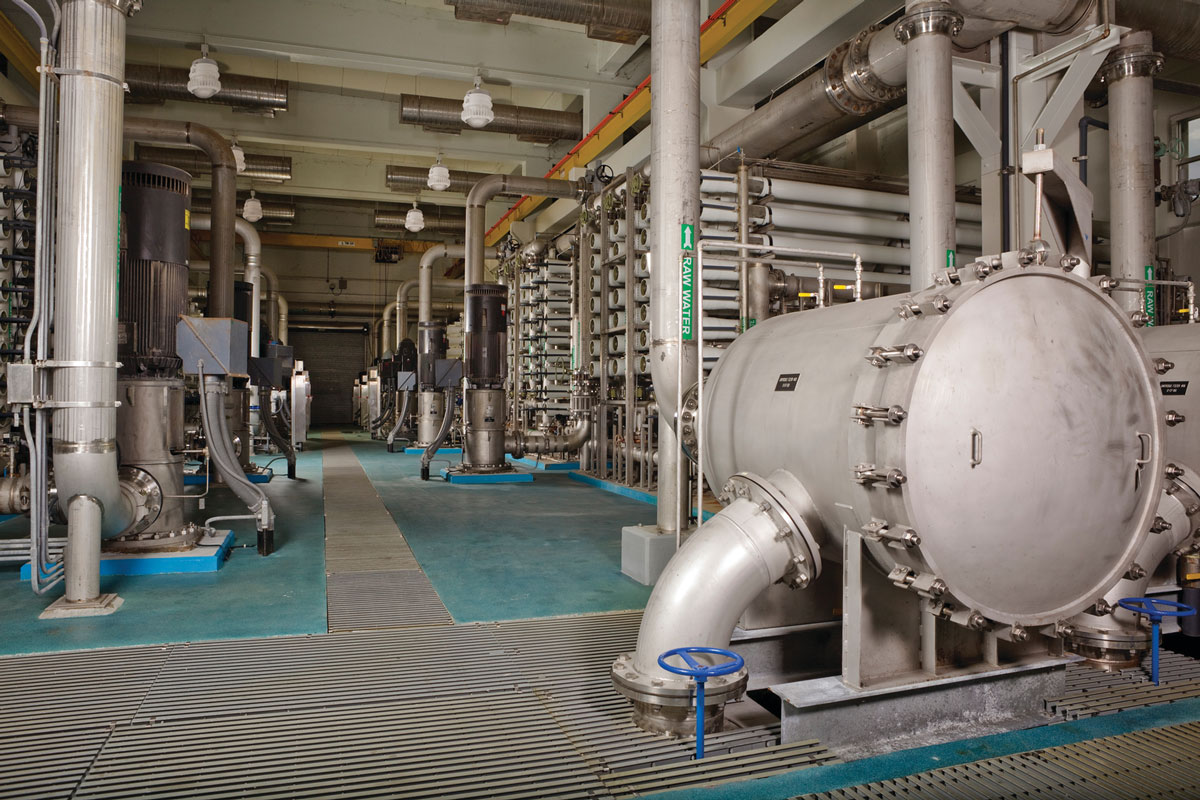

    PXLW-Modal_Image
    PXLW-Modal_Image

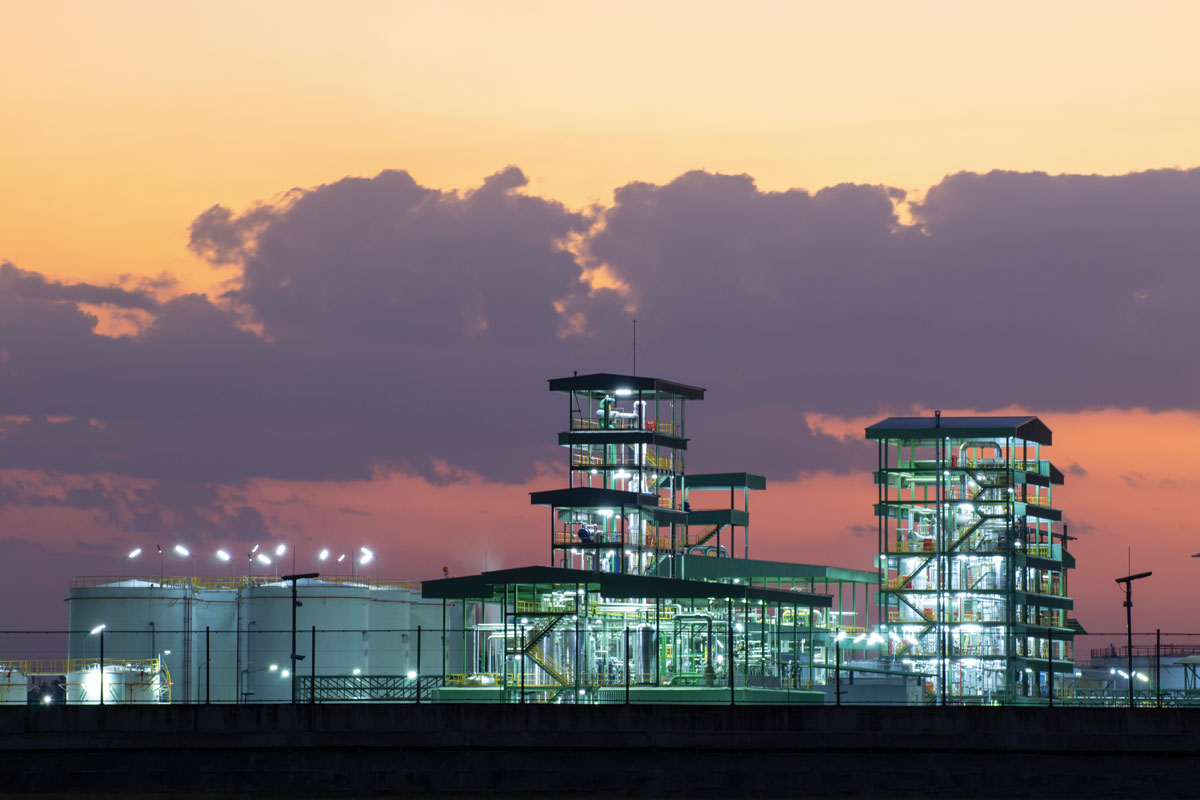

    PXLH-Modal_Image
    PXLH-Modal_Image

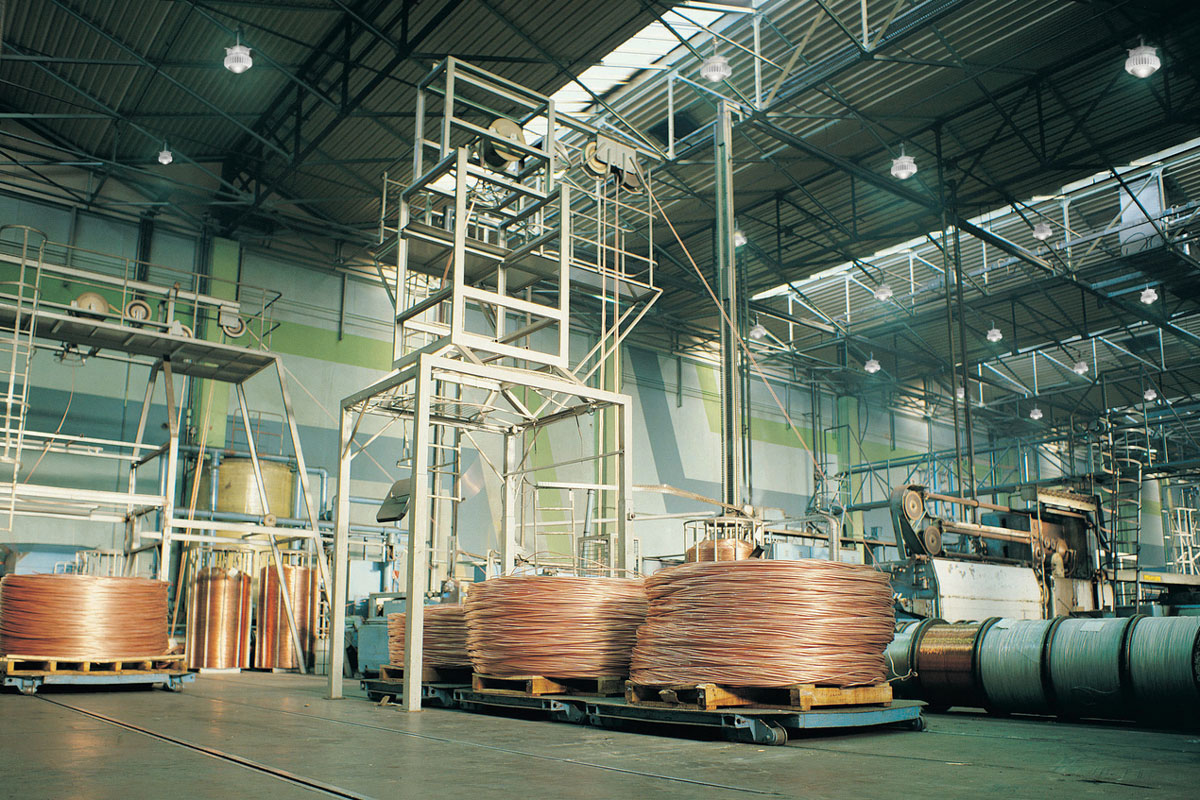

    PXHW-Modal_Image
    PXHW-Modal_Image

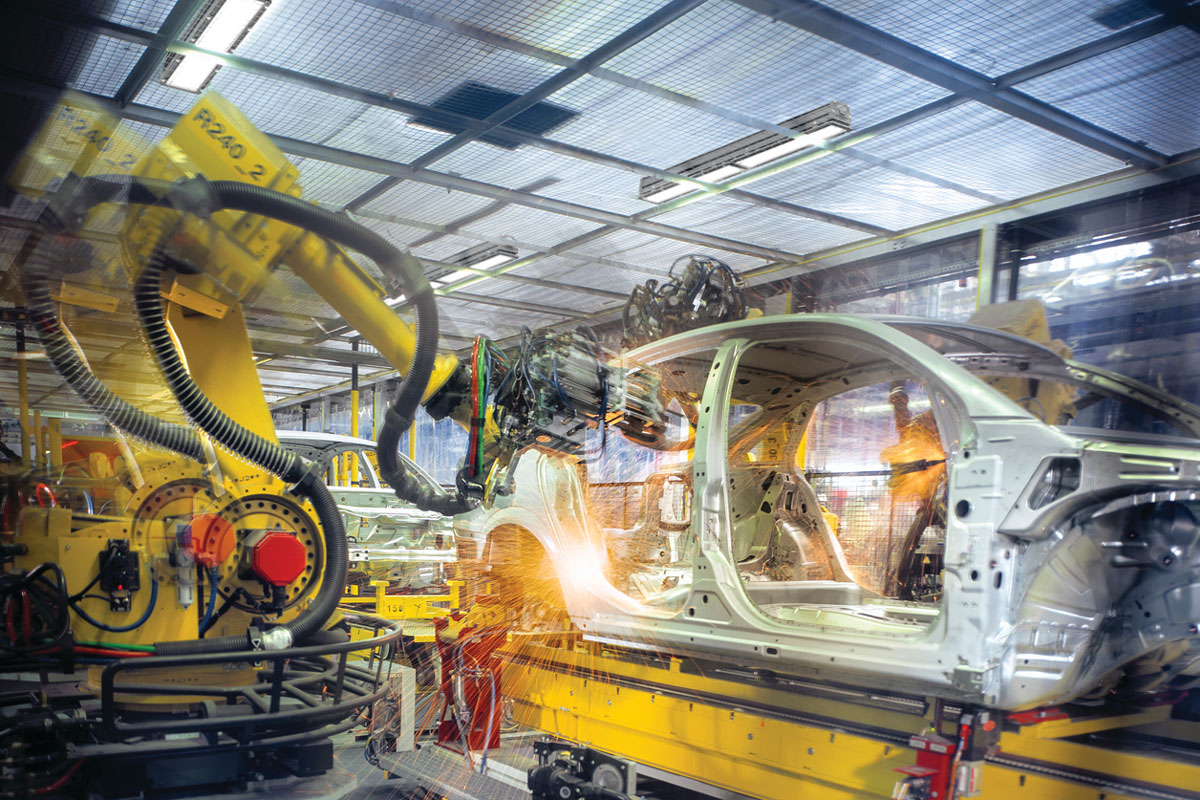

    EMXH-Modal_Image
    EMXH-Modal_Image

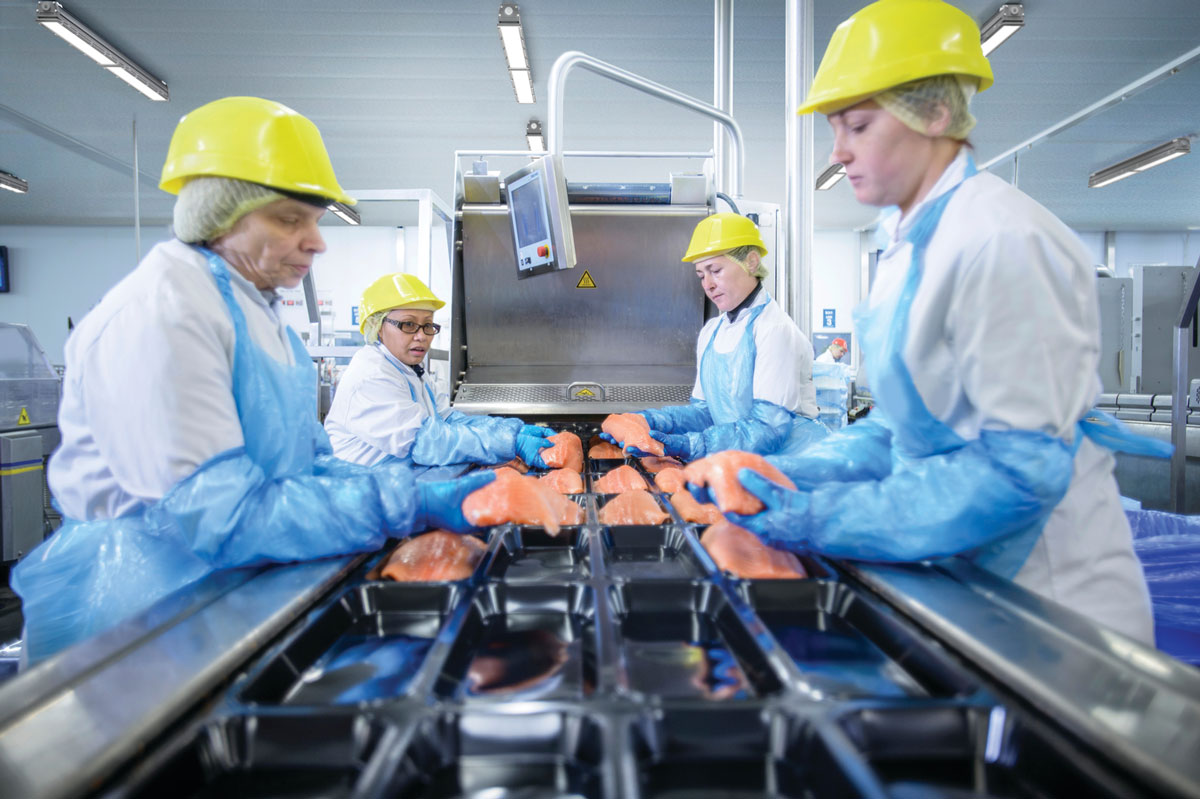

    EMX-Modal_Image
    EMX-Modal_Image
    Petrolux-nLight-AIR-Enabled-image1

    Controls

    nLight® AIR wireless lighting controls are a smart solution for simplifying installation and aiding in energy code compliance.

    Benefits:

    • Energy and Labor savings
    • Easy to use embedded sensor
    • Scalability
    • Aids in Code Compliance
