Hydrel

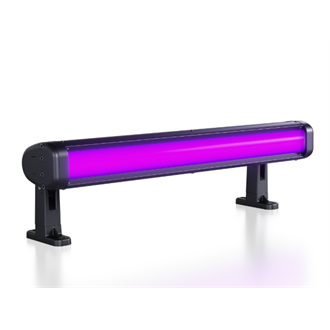

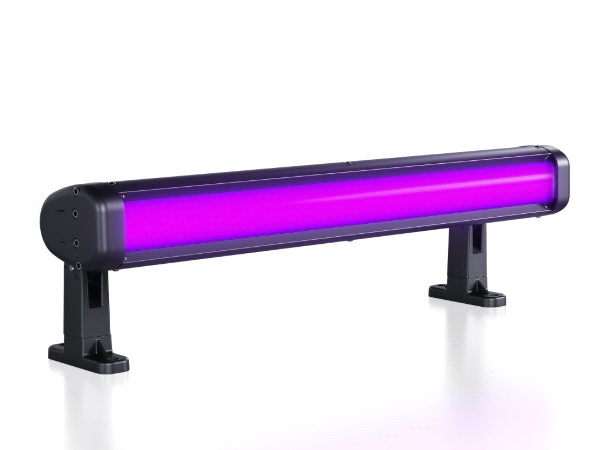

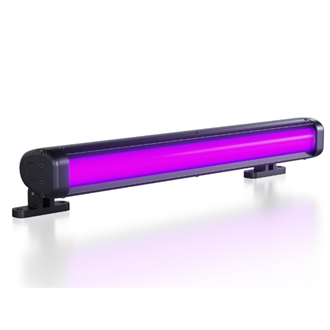

4750L Linear Flood RGBW

4750L RGBW Linear
    Color ChangingBuy America(n) Option AvailableBuy America(n) Option Available
  • Aperçu
  • Caractéristiques
Experience bold lighting expressions with the 4750L linear floodlight family. This exterior linear flood is designed for challenging outdoor applications delivering high performance and efficacy.

It maintains a gentle, clean gradient up or down the façade of up to 15 feet. It offers a max of 2000 nominal lumens per foot, positioning this linear luminaire as the best in performance and efficiency in its category.

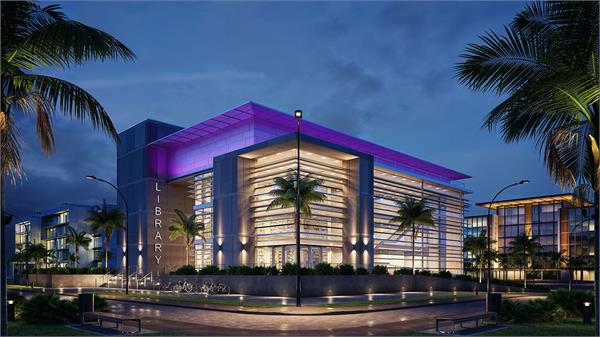

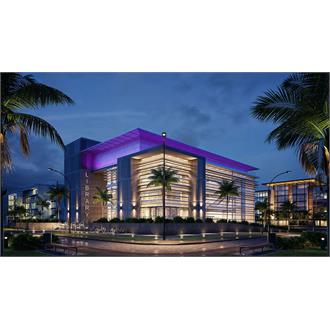

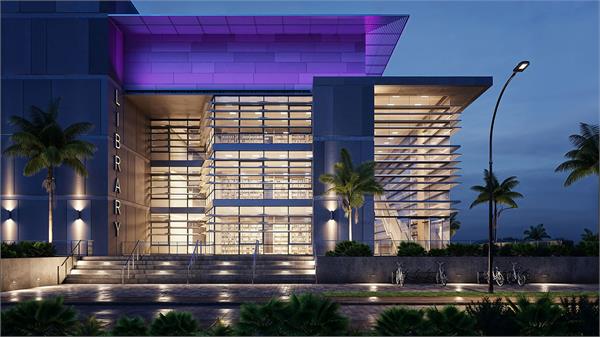

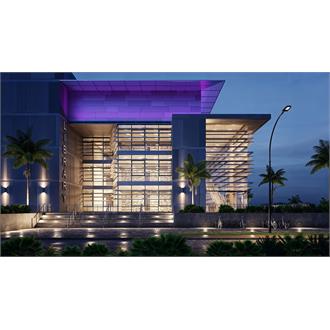

Complete with static white, tunable white and RGBW options, the 4750L leaves an impression elevating the nighttime experience for building or landscape features.
  • Direct, grazing, flood, wide flood, or asymmetric/wall wash applications
  • 3G vibration rating per ANSI C136.31
  • Superior water resistance with Flow-Thru technology
  • Taper-Lock technology provides full aiming integrity utilizing a rugged knuckle design
  • IP67 rated
  • Environmental options available for Marine environment, Natatorium Construction and Corrosion Resistant
  • RGBW4
  • Up to 1000 nominal lumens per foot

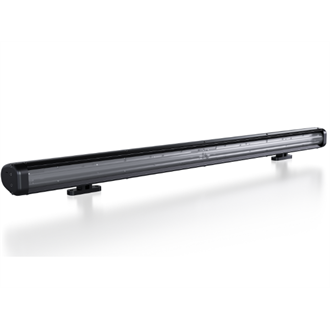

  • 2FT and 4FT (nominal length) available
  • Mounting accessories including ground, surface and wall

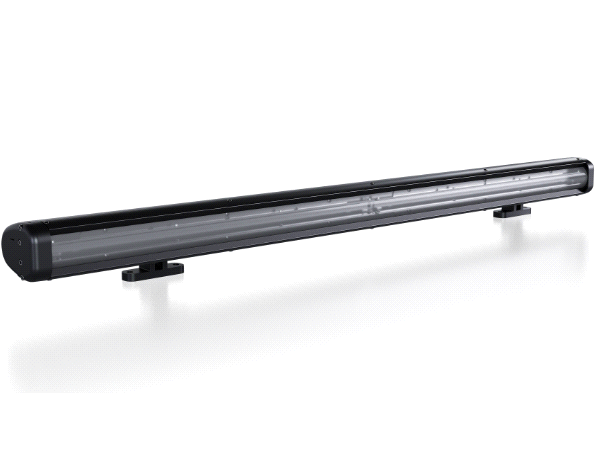

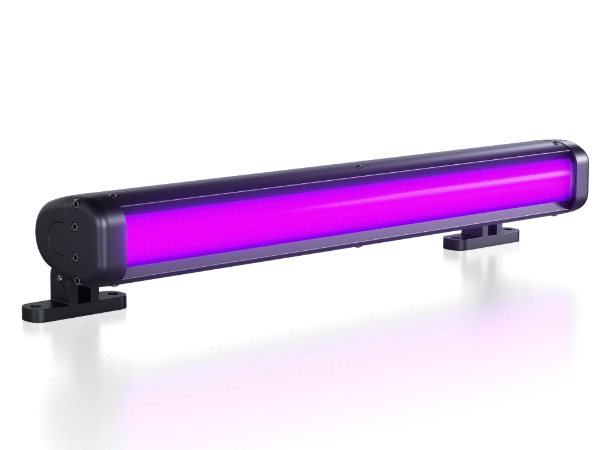

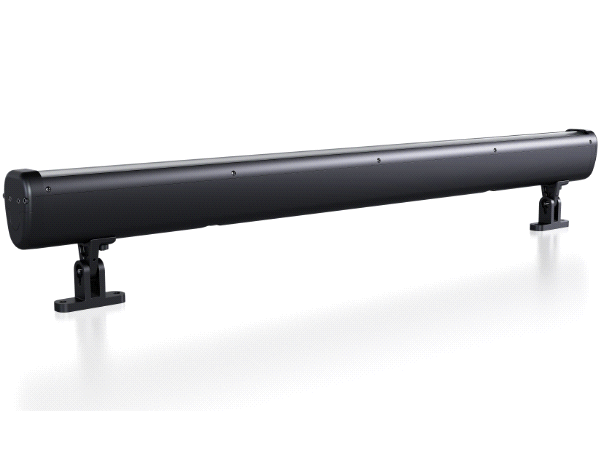

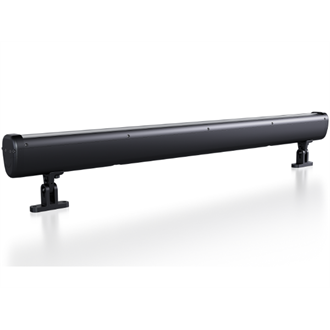

  • Rotated knuckle mounting options allow lighting on tight drips, close set-back distances or small edges
  • Available in a range of colors and finishes
En savoir plus
Lire moins
Size 2FT, 4FT
Light Source LED - Dynamic
Lumens 4000 LM
CCT / LED Color RGBW
CRI 80
Type de produit Linear
Liste de conformité BAA and BABA
Certification environnementale IP67, Wet Location
Inscription réglementaire ANSI C136.31-2010 (Vibration), CSA, CSAus, NOM
Protocole de gradation DMX
Light Distribution Medium Flood, Narrow Spot, Very Narrow Spot, Wall Wash, Wide Flood
Fixture Wattage 21, 42
Tension 120-277
Types de fixations Knuckle
Color Beige, Black, Bronze, Gray, Green, Silver, White
Series 4750L

En savoir plus Lire moins

  • Produits de remplacement suggérés

PRODUCT INFORMATION

  • Fiches techniques

    Type de document Titre du document Description Actualisé Voir
    Fiche technique 4750L_RGBW.pdf 4750L RGBW Flood Linear 9/23/2024 Voir
    Fiche technique JB4750L.pdf junction box for 4750L 3/14/2024 Voir
    Fiche technique Pathway-PWREP-IP65.pdf DMX-RDM Repeater 4-port IP65 4/26/2024 Voir

  • Photométrie et BIM

    Utilisez % (pourcent) pour séparer les termes de recherche.

    1 - 1 de résultats

    Description rapport outils de conception
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Documents techniques (ex. fiches d’instructions, FDS, CAO)

    Type de document Titre du document Description Actualisé Voir
    Instructions d'installation ABL General Warnings, Form No. 503.204 ABL General Warnings, Form No. 503.204 11/8/2012 Voir
    Instructions d'installation ABL LED General Warnings, Form No. 503.203 ABL LED General Warnings, Form No. 503.203 11/8/2012 Voir
    Instructions d'installation Installation Instructions --- JB4750L.pdf JB4750L Junction Box use with 4750L & 4750LCR LED Linear 12/2/2019 Voir
    Instructions d'installation Installation Instructions_4750L Linear LED Flood_rev 5.pdf 4750L LED Linear 8/16/2022 Voir

  • Utility Rebate Search

  • Pièces de rechange

    Type de document Titre du document Description Actualisé Voir
    Replacement Part Spec Sheet Replacement parts 4750L_ (002).pdf Replacement Parts list for the 4750L Linear Flood light 2/26/2024 Voir

  • Confidential Documents

  • Documents marketing (ex. brochures, fiches de vente, FAQ)

    Type de document Titre du document Description Actualisé Voir
    Brochures Hydrel 4750L Brochure Hydrel 4750L Linear Floodlight Brochure, Architectural Lighting 9/19/2024 Voir
    Fiche de vente 4750L Performance & Efficiency 4750L Best Performance and Efficiency Report 12/19/2023 Voir
