Lithonia Lighting
Design Select (15 days or less)
Lithonia Lighting

LDN4 Round Series

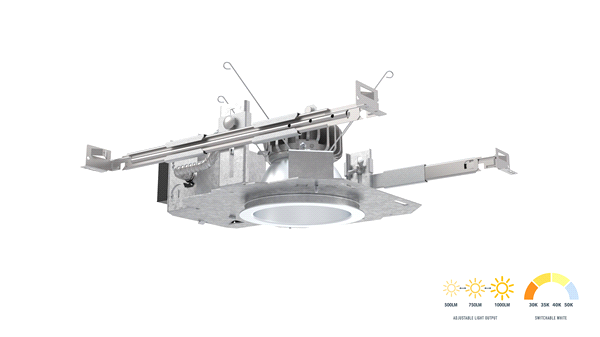

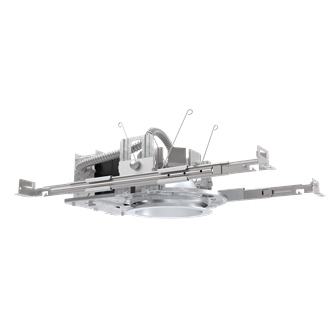

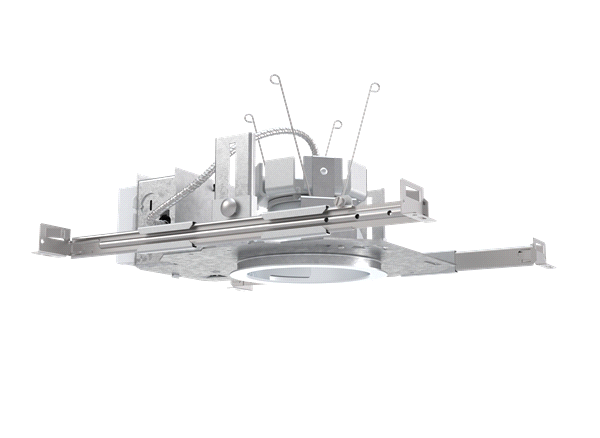

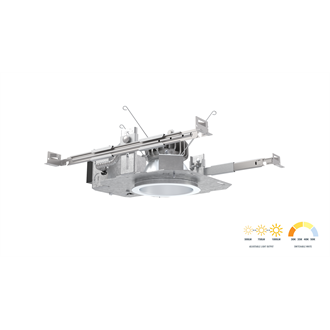

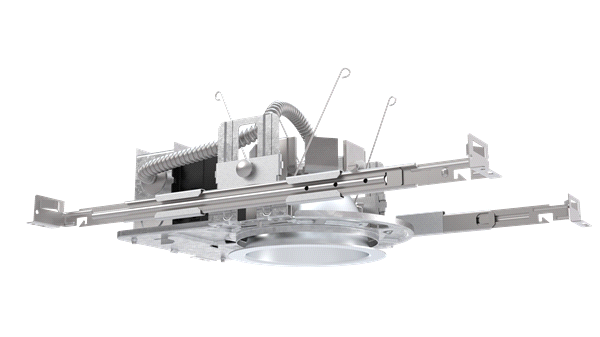

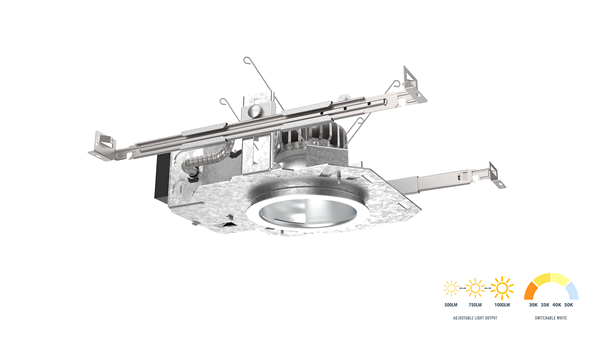

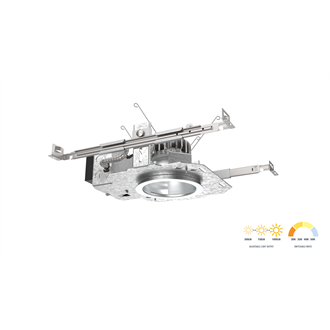

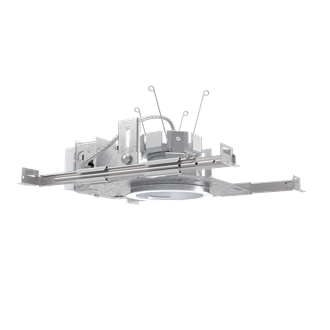

LDN4 Round – 4” Open and Wallwash
    Switchable LumensSwitchable CCTsBuy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Aperçu
  • Caractéristiques
En savoir plus
Lire moins
Size 4 IN
Forme Round
Light Source LED - Static
Composantes dynamiques Switchable White
Lumens 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 4000 LM, Switchable
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Variable
CRI 80, 90
Type de produit Downlight
Liste de conformité BAA and BABA, Chicago Plenum, Low UGR
Certification environnementale ASTM Airtight, IC, Non-IC, Wet Location
Inscription réglementaire cUL
Protocole de gradation 0-10V, DALI, Electronic Low Voltage, Triac
Fixture Wattage 10, 10.6, 11, 11.2, 11.3, 11.6, 12.8, 13.4, 13.5, 13.6, 14.2, 14.3, 14.5, 14.8, 14.9, 15.5, 15.8, 16.4, 17.5, 18, 18.8, 19, 20.2, 20.3, 20.5, 21, 21.8, 22.1, 24.1, 25, 25.1, 25.5, 25.6, 26.1, 27, 27.1, 28.6, 28.7, 29.1, 29.5, 31, 31.7, 32, 32.1, 33.1, 33.2, 34.7, 35.1, 35.4, 37.5, 37.6, 38.8, 39, 39.1, 40, 40.5, 40.6, 41.5, 43, 44, 46, 46.5, 47.5, 49, 5.74, 50, 51, 52, 53, 54, 55, 6.8, 8, 8.2, 8.3, 8.53, 8.6, 8.74, 9, 9.75, 9.8
Tension 120, 120-277, 277, 347
Trim Style Cone, Open, Single Wallwash
Color Black, Clear, White
Types de fixations Recessed
Series LDN4

En savoir plus Lire moins

  • Produits de remplacement suggérés

PRODUCT INFORMATION

  • Fiches techniques

    Type de document Titre du document Description Actualisé Voir
    Fiche technique LDN4 SWW.pdf 4” Round Open and Wallwash Switchable LED Downlight 10/18/2024 Voir
    Fiche technique LDN4.pdf 4" OPEN New Construction Downlight 10/8/2024 Voir

  • Photométrie et BIM

    Utilisez % (pourcent) pour séparer les termes de recherche.
    effacer les filtres

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} de {{pager.totalItems | number:0}} résultats

    Description rapport outils de conception
    {{photometryItem.Catalog}} rapport
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Type de document Titre du document Description Actualisé Voir
    Spectral Data Sheet Spectral Data Sheet LithoniaDownlighting_LDN4_40K_80CRI.pdf LDN4 40K 80CRI 8/10/2022 Voir
    Spectral Data Sheet Spectral Data Sheet_LithoniaDownlighting_LDN4_35K_90CRI.pdf LDN4 35K 90CRI 8/10/2022 Voir
    Spectral Data Sheet Spectral Data Sheet_LithoniaDownlighting_LDN4_40K_90CRI.pdf LDN4 40K 90CRI 8/10/2022 Voir
    Spectral Data Sheet SpectralDataSheet_LithoniaLighting_LDN4_30K_80CRI.pdf LDN4 35K 80CRI 6/1/2022 Voir

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Documents techniques (ex. fiches d’instructions, FDS, CAO)

    Type de document Titre du document Description Actualisé Voir
    Dimming Compatibility LBR-LDN-LDN Switchable Dimming Compatibility Dimming Compatibility Cheat Sheet 8/20/2020 Voir
    Instructions d'installation 912-00205-001_LDN4-6 SWW Installation Instructions.pdf LDN4, LDN4SQ, LDN6 and LDN6SQ Round and Square Switchable New Construction LED Downlight 11/3/2020 Voir

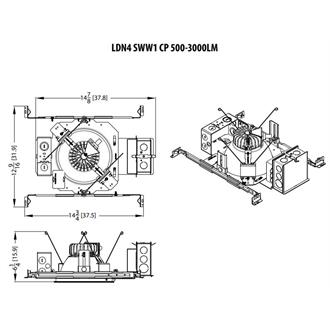

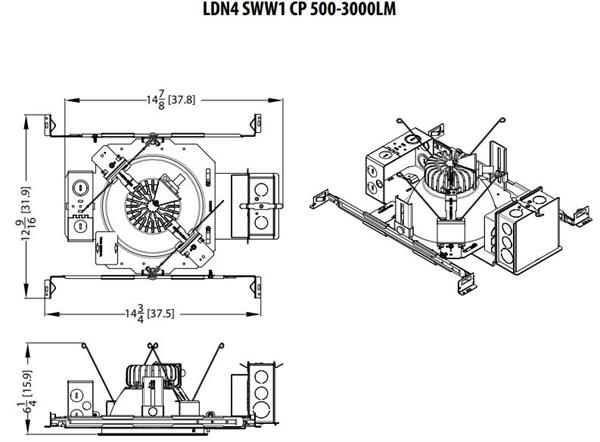

    Instructions d'installation 912-00219-001_LDN SWW CP Installation Instructions.pdf LDN4, LDN6 and LDN8 Round Switchable LED Downlight Supplemental for Chicago Plenum "CP" 12/10/2020 Voir
    Instructions d'installation LDN 4 and 6 Installation Instructions.pdf LDN4, LDN4SQ, LDN6 and LDN6SQ Round and Square New Construction LED Downlight 1/5/2022 Voir
    Instructions d'installation Sloped Ceiling Adapter CJ520663.pdf LDN4, LDN6 and LDN8 Round Sloped Ceiling Adapter "SCA" 10/20/2021 Voir

  • Utility Rebate Search

  • Pièces de rechange

    Type de document Titre du document Description Actualisé Voir
    Replacement Part Spec Sheet LDN4(SQ) Driver Repair Kit.pdf LDN4(SQ) Driver Repair Kit 9/6/2024 Voir
    Replacement Part Spec Sheet LDN4(SQ) Module Repair Kit.pdf LDN4(SQ) Module Repair Kit 9/6/2024 Voir
    Replacement Part Spec Sheet LDN4(SQ) Replacement Trim.pdf LDN4(SQ) Replacement Trim 9/6/2024 Voir

  • Confidential Documents

  • Documents marketing (ex. brochures, fiches de vente, FAQ)

    Type de document Titre du document Description Actualisé Voir
    Brochures Commercial Downlighting Product Brochure LBR and LDN Commercial Downlighting Product Portfolio Brochure 10/10/2023 Voir
    Brochures Commercial Downlighting School Application Guide LBR and LDN in Williams High School Application Guide 10/10/2023 Voir
    Brochures LDN Family Brochure LDN Downlights, Switchable, Retrofits, & Cylinders 10/10/2023 Voir
    Fiche de vente Commercial Downlight Comparison Chart LBR and LDN Product Families Comparison Chart 10/10/2023 Voir
    Fiche de vente LDN Ceiling Height Flyer.pdf LDN Ceiling Height Flyer 8/3/2017 Voir
    Fiche de vente LDN Switchable Sell Sheet LDN SWW1 (Sell Sheet) 9/21/2021 Voir
