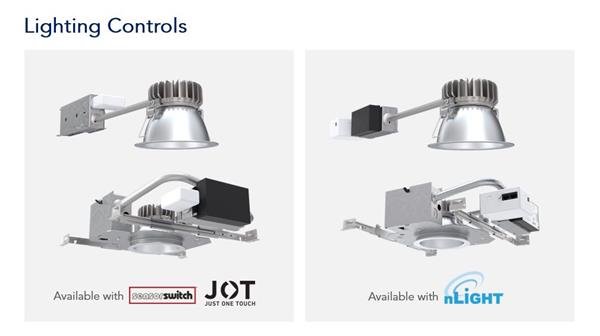

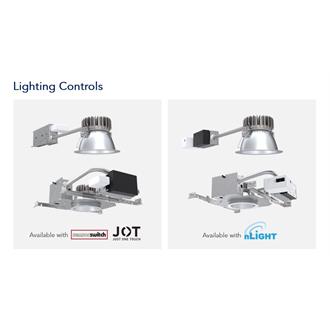

NO DIMMING WIRES REQUIRED WITH SENSORSWITCH JOT

Learn more about the wireless, app-free solution for single room lighting control!

Tell Me More
Lithonia Lighting
Lithonia Lighting

LBR4 Square Series

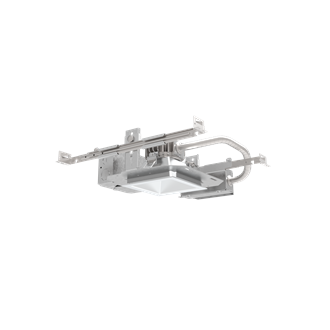

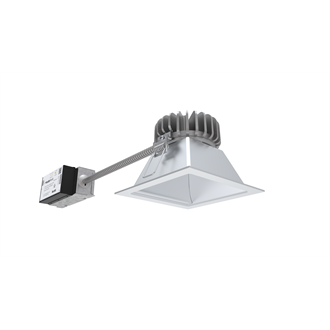

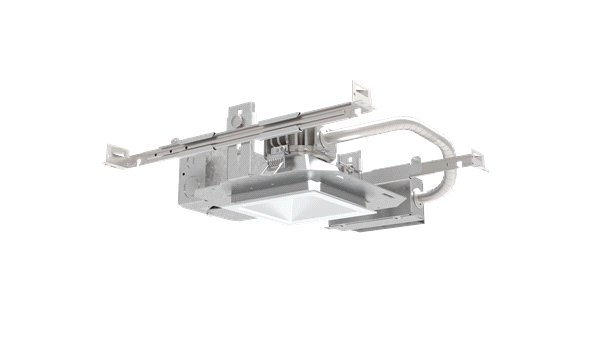

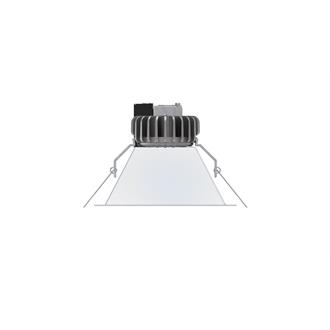

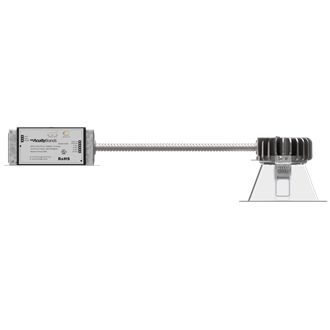

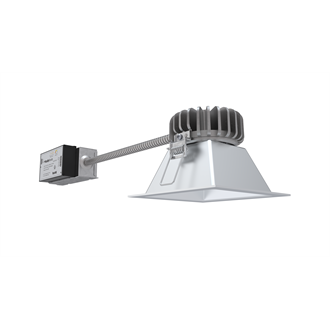

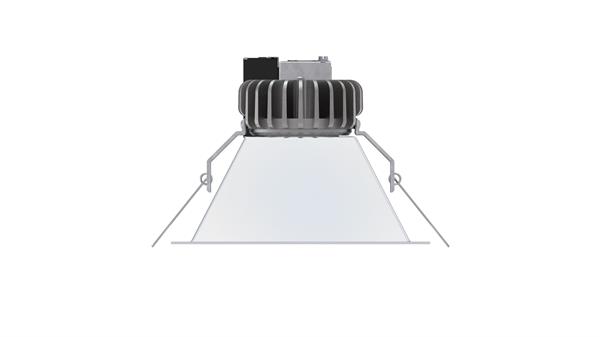

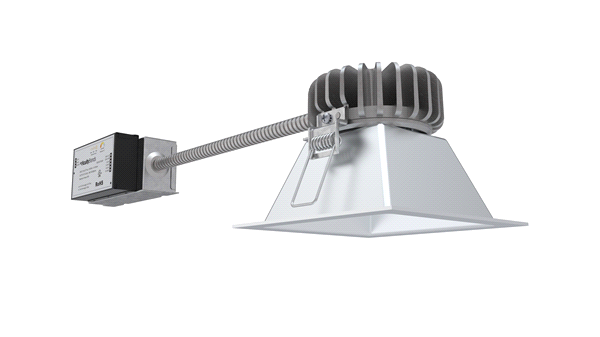

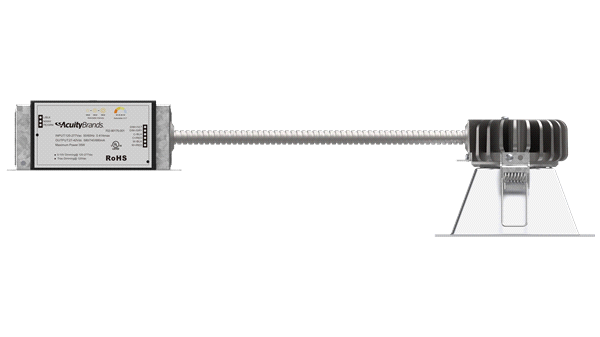

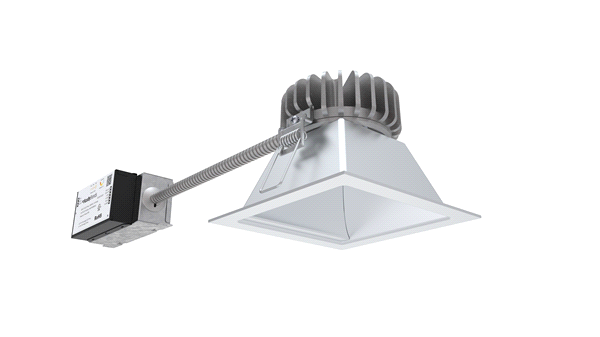

LBR 4” Square Retrofit | Remodel | New Construction Downlight
    Switchable LumensSwitchable CCTsEnergy Star®Low UGR
  • Aperçu
  • Caractéristiques
En savoir plus
Lire moins
Size 4 IN
Forme Square
Light Source LED - Static
Composantes dynamiques Switchable White
Lumens 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, Switchable
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Variable
CRI 90
Type de produit Retrofit Kit
Liste de conformité Chicago Plenum, ENERGY STAR®, Low UGR
Certification environnementale ASTM Airtight, Wet Location
Inscription réglementaire CSA, UL
Protocole de gradation 0-10V, DALI, Electronic Low Voltage, Triac
Fixture Wattage 10, 11, 11.2, 11.3, 11.6, 12.8, 13.4, 13.5, 14.2, 14.3, 14.5, 14.8, 14.9, 15.5, 15.8, 16.4, 18, 18.8, 19, 20.2, 20.3, 21, 21.8, 24.1, 25, 25.5, 25.6, 27, 27.1, 28.6, 28.7, 29.5, 31, 31.7, 32, 33.1, 33.2, 34.7, 35.4, 37.5, 37.6, 38.8, 39, 39.1, 40, 40.5, 40.6, 41.5, 43, 44, 46, 46.5, 47.5, 49, 50, 51, 52, 53, 54, 55, 6.8, 8, 8.2, 8.3, 8.53, 9, 9.75, 9.8
Tension 120, 120-277, 277, 347
Color Black, Clear, White
Types de fixations Recessed
Series LBR4SQ, LBR4SQWW

En savoir plus Lire moins

  • Produits de remplacement suggérés

PRODUCT INFORMATION

  • Fiches techniques

    Type de document Titre du document Description Actualisé Voir
    Fiche technique LBR4SQ.pdf LBR4 Square Retrofit Series 3/21/2023 Voir
    Fiche technique Lithonia-LBR4SQ NCH-Recessed-4in-Square-Downlight.pdf LBR4 Square New Construction 3/22/2023 Voir

  • Photométrie et BIM

    Utilisez % (pourcent) pour séparer les termes de recherche.
    effacer les filtres

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} de {{pager.totalItems | number:0}} résultats

    Description rapport outils de conception
    {{photometryItem.Catalog}} rapport
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Documents techniques (ex. fiches d’instructions, FDS, CAO)

    Type de document Titre du document Description Actualisé Voir
    Dimming Compatibility LBR-LDN-LDN Switchable Dimming Compatibility Dimming Compatibility Cheat Sheet 8/20/2020 Voir
    Instructions d'installation 912-00125_C.1_LBR Installation Instructions.pdf LBR4, LBR4SQ, LBR6, LBR6SQ, LBR8 and LBR10 LED Downlight 3/28/2024 Voir
    Instructions d'installation 912-00158-001_B.1 Smash Plate.pdf LBR4, LBR4SQ, LBR6, LBR6SQ and LBR8 Round and Square Mounting Plate 8/24/2020 Voir
    Instructions d'installation 912-00165-001_WL Gasket.pdf LBR4, LBR4SQ, LBR6, LBR6SQ and LBR8 Round and Square Replacement Wet Location "WL" Gasket Kit 8/24/2020 Voir
    Instructions d'installation 912-00226-LBR _347_ Installation.pdf LBR4, LBR4SQ, LBR6, LBR6SQ and LBR8 Round and Square LED Downlight Supplemental for 347 Volt 8/8/2022 Voir

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Pièces de rechange

  • Confidential Documents

  • Documents marketing (ex. brochures, fiches de vente, FAQ)

    Type de document Titre du document Description Actualisé Voir
    Brochures Commercial Downlighting Product Brochure LBR and LDN Commercial Downlighting Product Portfolio Brochure 10/10/2023 Voir
    Brochures Commercial Downlighting School Application Guide LBR and LDN in Williams High School Application Guide 10/10/2023 Voir
    Fiche de vente Commercial Downlight Comparison Chart LBR and LDN Product Families Comparison Chart 10/10/2023 Voir
    Fiche de vente LBR Retrofit Sell Sheet LBR Retrofit Sell Sheet 10/11/2023 Voir
    Fiche de vente LL_398514.29_LBR New Construction Sell Sheet_0721.pdf LBR New Construction Sell Sheet 10/11/2023 Voir
