TNLEDMED Tunnel

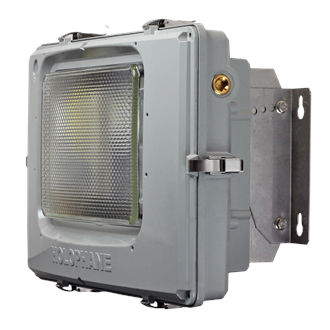

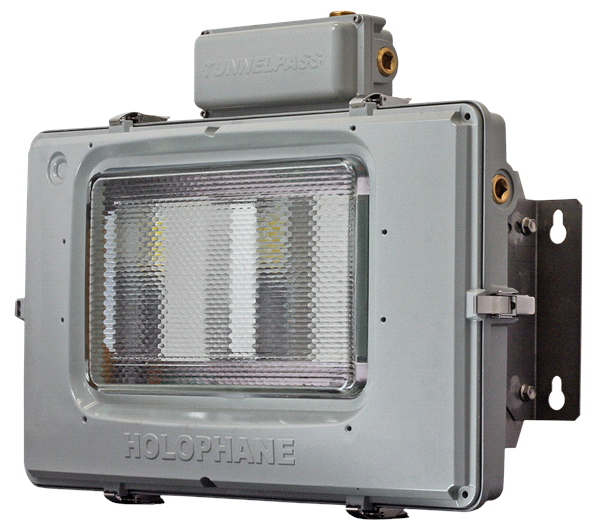

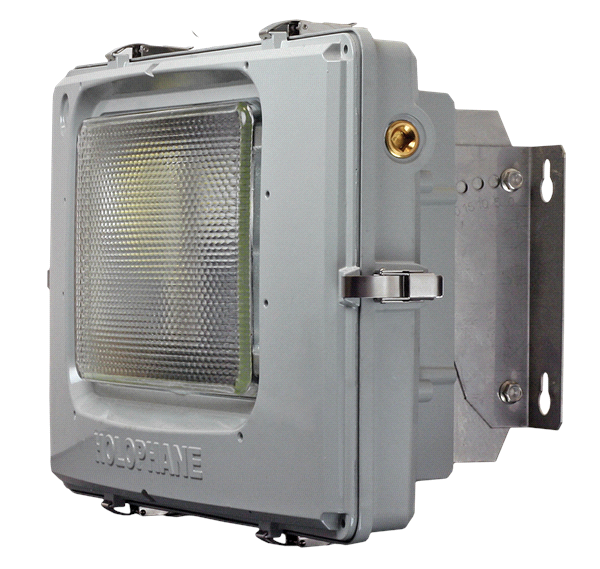

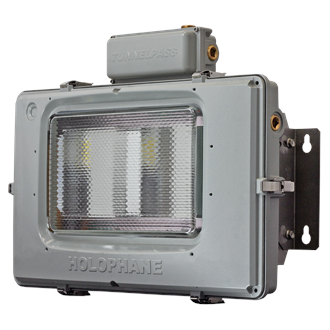

TunnelPass LED™ Medium Tunnel Light
    Buy America(n) Option AvailableBuy America(n) Option Available
  • Aperçu
  • Caractéristiques
En savoir plus
Lire moins
Light Source LED - Static
Lumens 6200 LM, 6300 LM, 6500 LM, 7000 LM, 8000 LM, 9000 LM, 10,000 LM, 11,000 LM, 12,000 LM, 13,000 LM, 14,000 LM, 15,000 LM, 16,000 LM, 17,000 LM, 18,000 LM, 19,000 LM, 20,000 LM, 21,000 LM, 22,000 LM, 23,000 LM, 24,000 LM, 25,000 LM, 26,000 LM, 27,000 LM, 28,000 LM, 29,000 LM, 30,000 LM, 31,000 LM, 32,000 LM, 33,000 LM, 34,000 LM, 35,000 LM, 36,000 LM, 36,900 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Liste de conformité BAA and BABA
Certification environnementale IP66, Wet Location
Inscription réglementaire C-UL-US
Type de produit Tunnel Light
Protocole de gradation 0-10V
Tension 120-277, 277-480, 347/480, HVOLT, XVOLT
Types de fixations Surface
Primary Material Aluminum
Architectural Style Traditional
Series TNLEDMED

En savoir plus Lire moins

  • Produits de remplacement suggérés

PRODUCT INFORMATION

  • Fiches techniques

    Type de document Titre du document Description Actualisé Voir
    Fiche technique TNLEDMED_.pdf TNLEDMED TunnelPass LED™ Medium 3/12/2024 Voir

  • Photométrie et BIM

    Utilisez % (pourcent) pour séparer les termes de recherche.
    effacer les filtres

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} de {{pager.totalItems | number:0}} résultats

    Description rapport outils de conception
    {{photometryItem.Catalog}} rapport
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Type de document Titre du document Description Actualisé Voir
    Spectral Data Sheet SpectralDataSheet_HLP_TNLEDMED_30K_70CRI.pdf HLP_TNLEDMED_30K_70CRI 11/8/2022 Voir

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Documents techniques (ex. fiches d’instructions, FDS, CAO)

    Type de document Titre du document Description Actualisé Voir
    Instructions d'installation IM-439-A_TunnelPass LED Med_Installation Instructions.pdf TunnelPass LED Installation Instructions 3/13/2018 Voir

  • Utility Rebate Search

  • Pièces de rechange

    Type de document Titre du document Description Actualisé Voir
    Replacement Part Spec Sheet TNLEDMED Repair kits.pdf TNLEDMED Replacement Kits 9/13/2023 Voir

  • Confidential Documents

  • Documents marketing (ex. brochures, fiches de vente, FAQ)

    Type de document Titre du document Description Actualisé Voir
    Brochures TunnelPass LED Medium Brochure.pdf TunnelPass LED Medium Brochure 3/5/2018 Voir
    Brochures TunnelPass LED Solutions Guide.pdf TunnelPass LED Solutions Guide 4/3/2019 Voir
    Brochures XVOLT Driver Protection Holophane XVOLT Zeta Shield Driver Protection Brochure 1/24/2022 Voir
    FAQ XVOLT Driver Protection FAQ Holophane XVOLT Zetashield Driver Protection FAQ 7/19/2022 Voir
    Nomenclature Crossover TNLEDMED .xlsx Crossover Guide 4/7/2022
