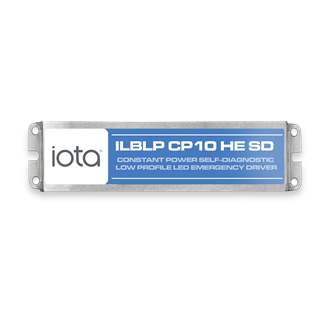

ILBLP CP10 HE SD Emergency LED Driver

10 Watt Constant Power Low Profile Emergency LED Driver with Self Diagnostics and High Efficiency Performance for CA Title 20
    CA Title 20
  • Aperçu
  • Caractéristiques
En savoir plus
Lire moins
Type de produit Emergency LED Driver
Tension 120-277
Frequency 50/60HZ
Load Voltage Rating 15-55 VDC
Output Power 10 Watts
Temp. de fonctionnement max. 55
Temp. de fonctionnement max. 0
Battery Run Time 90 min
Battery Chemistry Type Lithium Iron Phosphate
Battery Recharge Time 24 hours
Battery Activation AC Activate
Life Safety Testing Self Diagnostics, Self Test
Inscription réglementaire C-UL-US, cUL
Liste de conformité CA Title 20, ROHS
Series ILBLP

En savoir plus Lire moins

  • Produits de remplacement suggérés

PRODUCT INFORMATION

  • Fiches techniques

    Type de document Titre du document Description Actualisé Voir
    Fiche technique Copy & Paste Specification Sample Specification for ILBLP CP10 HE SD models 7/16/2020
    Fiche technique ILBLP CP10 HE SD Specifications Specification Sheet for the ILBLP CP10 HE SD Emergency LED Driver 12/15/2022 Voir

  • Photométrie et BIM

    Utilisez % (pourcent) pour séparer les termes de recherche.
    effacer les filtres

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} de {{pager.totalItems | number:0}} résultats

    Description rapport outils de conception
    {{photometryItem.Catalog}} rapport

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Documents techniques (ex. fiches d’instructions, FDS, CAO)

    Type de document Titre du document Description Actualisé Voir
    Modèle 3D ILBLP CP10 HE SD A 3D STEP file of the ILBLP CP10 HE SD A 3/15/2021
    Modèle 3D ILBLP CP10 HE SD B 3D STEP file of the ILBLP CP10 HE SD B 3/15/2021
    Instructions d'installation "A" Mounting Style Installation Manual for ILBLP CP HE SD A Mounting Style Models 5/9/2022 Voir
    Instructions d'installation "B" Mounting Style Installation Manual for ILBLP CP HE SD B Mounting Style Models 5/9/2022 Voir
    Material Safety Data Sheet MSDS - 16V-9.6V Lithium-ion Material Safety Data Sheet for 16V and 9.6V Lithium-ion batteries 1/7/2022 Voir
    Bulletins techniques Comprensión de la Potencia Constante Maximiza la seguridad en las salidas de emergencia utilizando potencia constante real (CP) 4/12/2021 Voir
    Bulletins techniques ILBLP CP10 HE SD_tc-ref.pdf TC reference point for ILBLP CP10 3/29/2023 Voir
    Bulletins techniques LP Designs with Advanced Lithium Technology How engineering diligence and careful handling helps improve reliability of IOTA ILBLP drivers 6/25/2020 Voir
    Bulletins techniques The Need for Surge Protection IOTA emergency drivers feature enhanced designs for withstanding exposure to electrical surges. 4/5/2021 Voir
    Bulletins techniques Understanding Constant Power Understand the benefits of IOTA's patented Constant Power emergency LED driver design 2/11/2022 Voir
    Wiring Diagram (English) Typical Installation DWG Format - Typical Installation with TBTS Test Accessory 11/29/2021
    Wiring Diagram (English) Typical Installation PDF Format - Typical Installation with TBTS Test Accessory 11/29/2021 Voir
    Wiring Diagram (French) Installation Typique DWG Format - Installation typique avec accessoire de test TBTS 6/15/2020
    Wiring Diagram (French) Installation Typique PDF Format - Installation typique avec accessoire de test TBTS 6/15/2020 Voir

  • Utility Rebate Search

  • Pièces de rechange

  • Confidential Documents

  • Documents marketing (ex. brochures, fiches de vente, FAQ)

    Type de document Titre du document Description Actualisé Voir
    Guide d’application Contractor Insider - Emergency Lumen Output A quick guide on understanding how wattage correlates with emergency lumen output 9/15/2021 Voir
    Guide d’application Contractor Insider - Remote Mounting Guidelines A Quick Reference for knowing remote mounting capabilities of emergency lighting solutions. 10/21/2021 Voir
    Guide d’application ILB CP Lumen Reference Chart Quickly identify IOTA LED Emergency Drivers that meet your desired lumen levels 8/11/2023 Voir
    Guide d’application Tabla de Referencia de Lumen de ILB CP Identifique rápidamente los drivers LED de emergencia de IOTA que cumplen con los niveles de lumen deseados 4/12/2021 Voir
    Brochures IOTA HE Products for California Title 20 IOTA Emergency Lighting Solutions Certified in the Title 20 Appliance Efficiency Database 7/21/2022 Voir
    Brochures IOTA Tech Brief: What is AC Activate Understand the key benefits that AC Activate technology brings to the installation process. 2/11/2022 Voir
    Fiche de vente IOTA-Contractor-Insider_AC-Activate-Explained.pdf How IOTA AC Activate Saves Time and Money on the Jobsite 11/5/2021 Voir
    Fiche de vente Sell Sheet_IOTA AC Activate.pdf AC Activate is a smarter, simpler way to install emergency drivers. 7/21/2023 Voir
