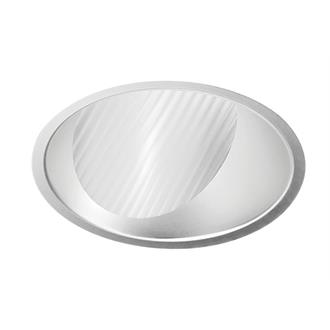

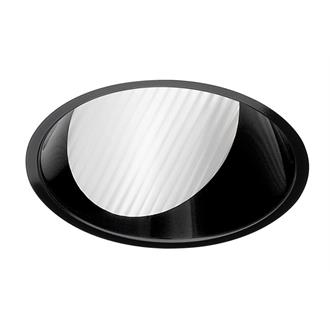

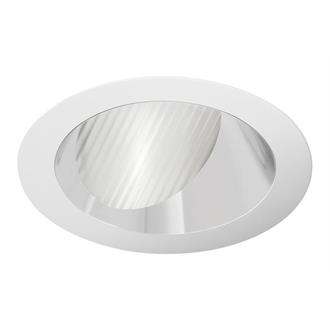

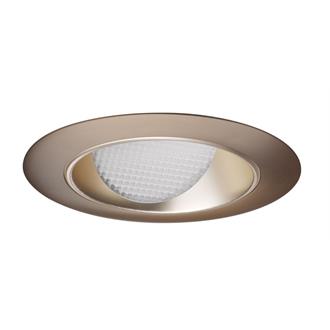

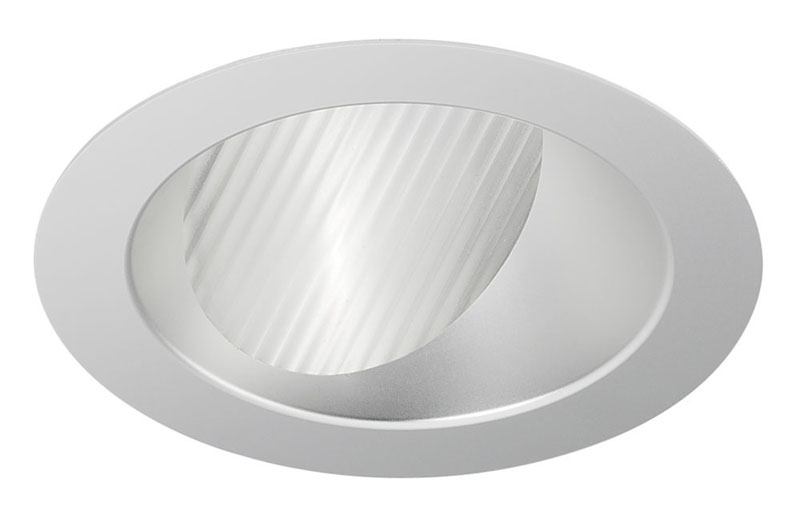

AX3 3" Round Wall Wash

3" Precision Recessed New Construction & Remodel
    WarmDimTunable WhiteCA Title 24/JA8Buy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Aculux® 3-inch precision recessed wall wash luminaire is discreet and aesthetically stunning, delivering up to 3,000 lumens while providing:

Superior Uniformity
  • Uniform flood of light without hot spots or scallops
Exceptional Brightness and Glare Control
  • 45° visual cutoff to source and source image
Tru-Line™ Precision Installation
  • Pro-VI™ bar hangers, coupled with +/-1/2” aperture translation makes perfect installation achievable
Read More
Read Less
Aperture Size 3 IN
Shape Round
Light Source LED - Dynamic, LED - Static
Lumens 800 LM, 1200 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, Variable
CRI 80, 90, 95
Product Type Housing
Compliance Listing BAA and BABA, CA Title 24, Chicago Plenum, JA8, Low UGR
Environmental Listing ASTM Airtight, Damp Location, IC, Non-IC
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, DALI, DMX, Forward Phase, Reverse Phase
Fixture Wattage 11, 12, 13.8, 14.6, 19.7, 20.2, 25.8, 26.3, 32.9, 33.3, 7, 7.6
Voltage Rating 57VDC, 120, 120-277, 277, DC2DC 57VDC
Trim Style Single Wallwash
Color Black, Clear, Wheat, White
Mounting Type Recessed
Series AX3

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Aculux-AX3-Recessed-3in-Round-Wallwash.pdf AX3 Round Wallwash New Construction Gen 4 8/28/2023 View
    Spec Sheet Aculux-AX3-Remodel-3in-Round-Recessed-ADJ_DL_WW.pdf AX3 Round Universal Remodel Gen 4 9/8/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    1 - 1 of results

    Description Report Design Tools
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P2886.pdf AX3 and AX3SQ Flangeless Adapter for Gypsum Ceiling Thickness less than .875" (FMA3/087,FMA3SQ/087) 9/11/2018 View
    Installation Instructions P2908.pdf AX3 3" Round Ceiling Thickness Adapter .875" to 1.625" (CTA3/125,CTA3/163) 9/11/2018 View
    Installation Instructions P3647.pdf AX3 3" Round Flangeless Adapter for Wood, Stone & Tile Ceiling Thickness .875" to 1.625" (SFM3) 9/11/2018 View
    Installation Instructions P4482.pdf AX3 3" Round Flangeless Adapter for Gypsum Ceiling Thickness .875" to 1.625" (FMA3/125,FMA3/163) 9/11/2018 View
    Installation Instructions P4535.pdf AX3 and AX3SQ 3" New Construction Housing 2/9/2023 View
    Installation Instructions P4536.pdf AX3 3" Round Remodel Housing 8/24/2021 View
    Installation Instructions P6160.pdf AX3 and AX3SQ 3" DMX512/RDM Field Installation 6/5/2018 View
