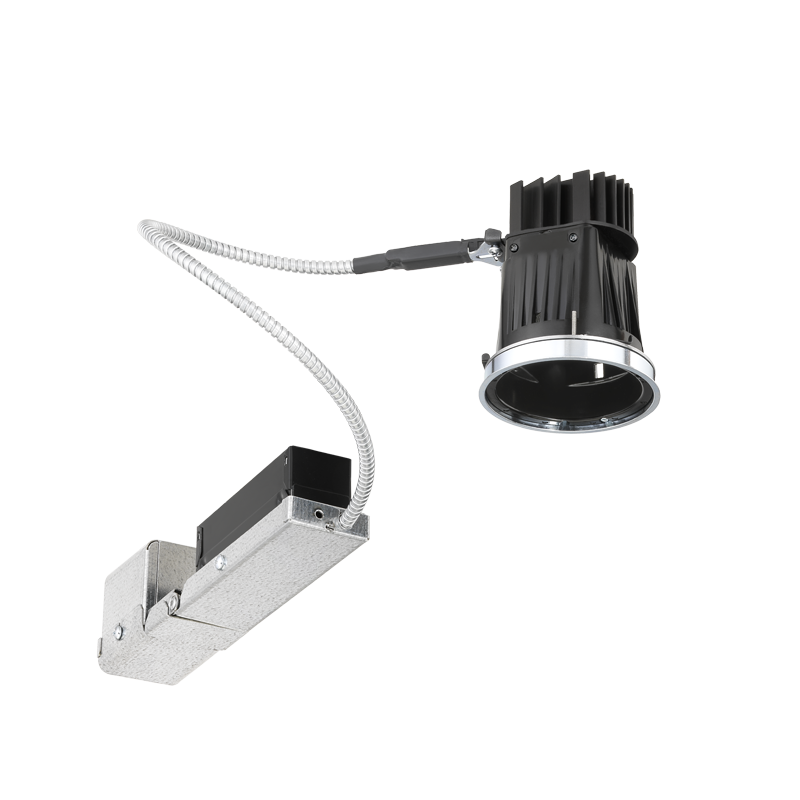

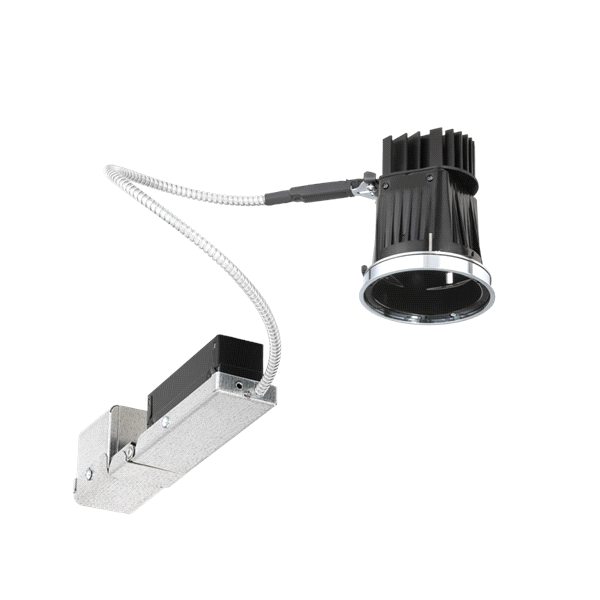

AX2 2" Round Downlight

2" Precision Recessed New Construction & Remodel
    Energy Star®CA Title 24/JA8Buy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Aperture Size 2 IN
Shape Round
Light Source LED - Static
Lumens 800 LM, 1200 LM, 1500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90
Product Type Housing
Compliance Listing BAA and BABA, CA Title 24, Chicago Plenum, ENERGY STAR®, JA8, Low UGR
Environmental Listing ASTM Airtight, Damp Location, IC, Non-IC, Wet Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase, Reverse Phase
Fixture Wattage 10, 14.3, 14.7, 16.5, 17.3, 9.9
Voltage Rating 120, 120-277
Trim Style Bevel, Cone, Hyperbolic, Lensed, Pinhole, Reflector
Color Black, Clear, Wheat, White
Mounting Type Recessed
Series AX2

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Aculux--AX2-Recessed-2in-Round-Downlight--.pdf AX2 Round Downlight New Construction & Remodel 8/31/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions AX2_FMA2/120_FMA2/150 Flangeless_Adapter AX2 2" New Construction Flangeless Adapter Ceiling Thickness .75" to 1.50" (FMA2/120,FMA2/150) 6/5/2018 View
    Installation Instructions P3704.pdf AX2(SQ) New Construction Flangeless Adapter Ceiling Thickness less than .75" (FMA2/075,FMA2SQ/075) 6/5/2018 View
    Installation Instructions P3705.pdf AX2(SQ) Remodel Flangeless Adapter Ceiling Thickness .5" to 1.5" (FMA2R & FMA2SQR) 6/6/2018 View
    Installation Instructions P3707.pdf AX2 and AX2SQ 2" IC New Construction Housing 12/27/2018 View
    Installation Instructions P3708.pdf AX2 and AX2SQ 2" Non-IC New Construction Housing 12/27/2018 View
    Installation Instructions P3709.pdf AX2 and AX2SQ 2" Non-IC Remodel Housing 10/28/2021 View
    Installation Instructions P3738.pdf AX2 2" Round Adapter Ceiling Thickness .75" to 1.50" (CTA2/120,CTA2/150) 6/5/2018 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures Aculux 2in Precision Recessed LED Brochure Aculux AX2 Brochure 6/7/2023 View
