D-Series Area Size 1

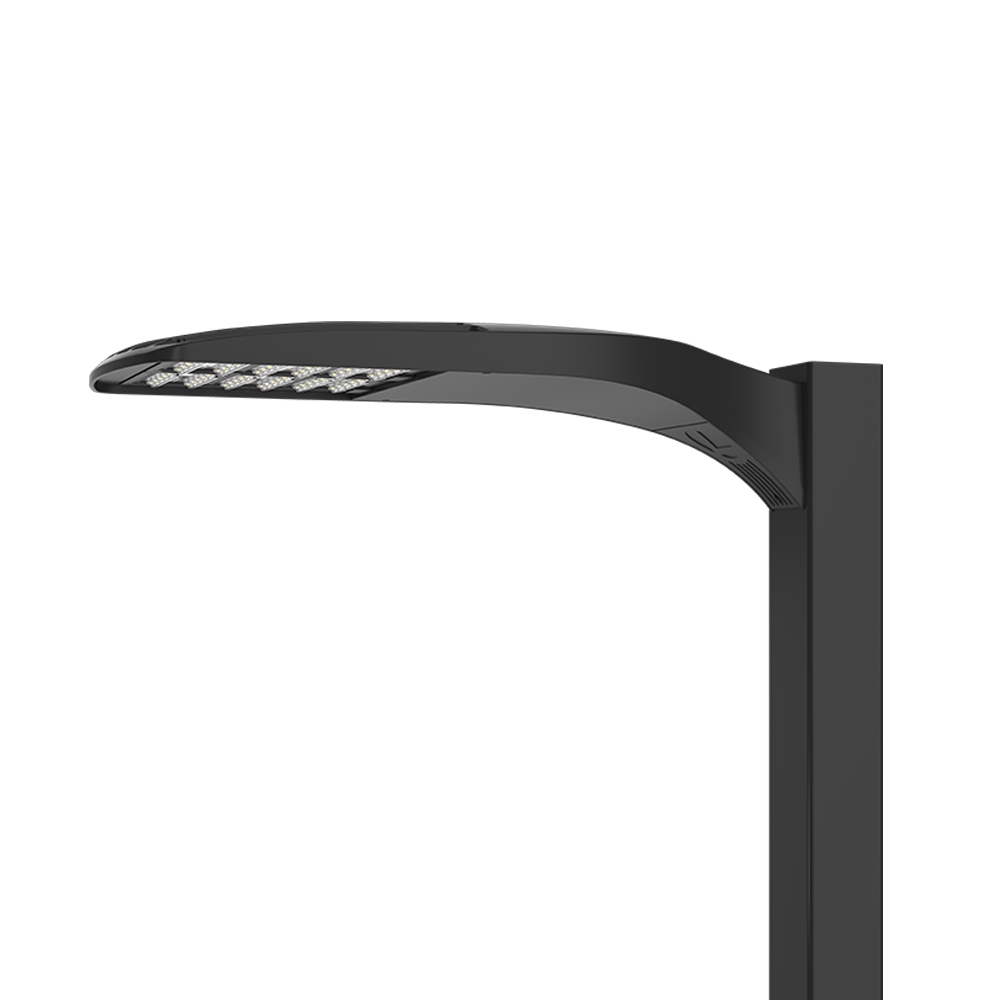

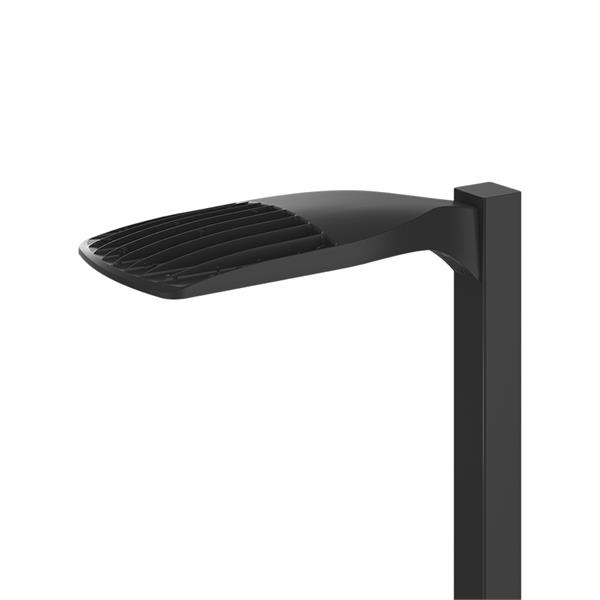

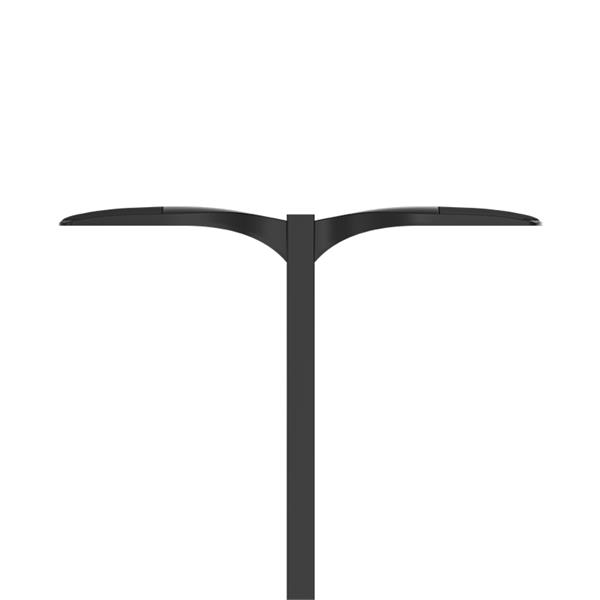

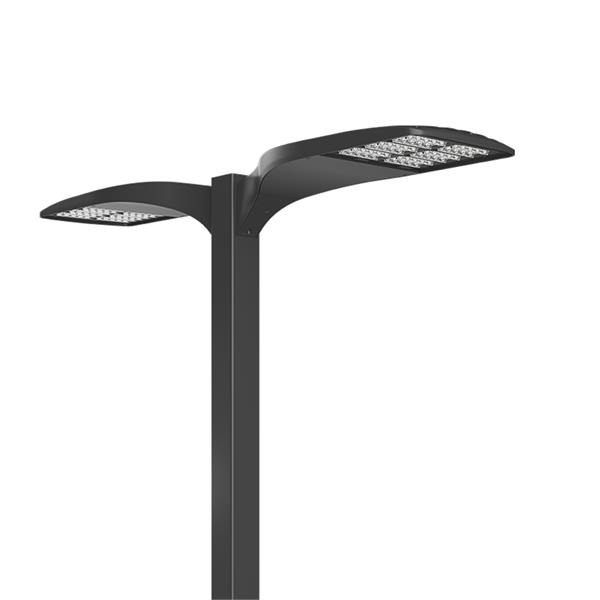

DSX1 LED Area Luminaire
    Buy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 4000 LM, 5000 LM, 6000 LM, 7000 LM, 8000 LM, 9000 LM, 10,000 LM, 11,000 LM, 12,000 LM, 13,000 LM, 14,000 LM, 15,000 LM, 16,000 LM, 17,000 LM, 18,000 LM, 19,000 LM, 20,000 LM, 21,000 LM, 22,000 LM, 23,000 LM, 24,000 LM, 25,000 LM, 30,000 LM, 31,000 LM, 32,000 LM, 33,000 LM, 34,000 LM, 35,000 LM, 36,000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 70, 80
Product Type Area Light
Compliance Listing BAA and BABA
Environmental Listing IP66
Regulatory Listing C-UL-US
Dimming Protocol 0-10V
Fixture Wattage 101, 102, 103, 106, 112, 120, 121, 125, 132, 133, 136, 137, 138, 139, 145, 150, 161, 163, 165, 168, 181, 183, 189, 203, 204, 207, 214, 215, 220, 231, 234, 241, 272, 273, 279, 285, 286, 51, 54, 62, 68, 69, 70
Voltage Rating 120-277, 277-480, 347-480
Color Beige, Black, Bronze, Gray, Green, Silver, White
Mounting Type Pole Mount
Series DSX1

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet 1 DSX1-LED.pdf DSX1 LED Spec Sheet 9/5/2023 View
    Spec Sheet Lithonia-Amber Series LED Area Luminaire-DSX1-AREA-Rectangular.pdf DSX1 LED AMBER Area Luminaire 6/29/2023 View
