Juno
Contractor Select (1-2 Days)
Juno

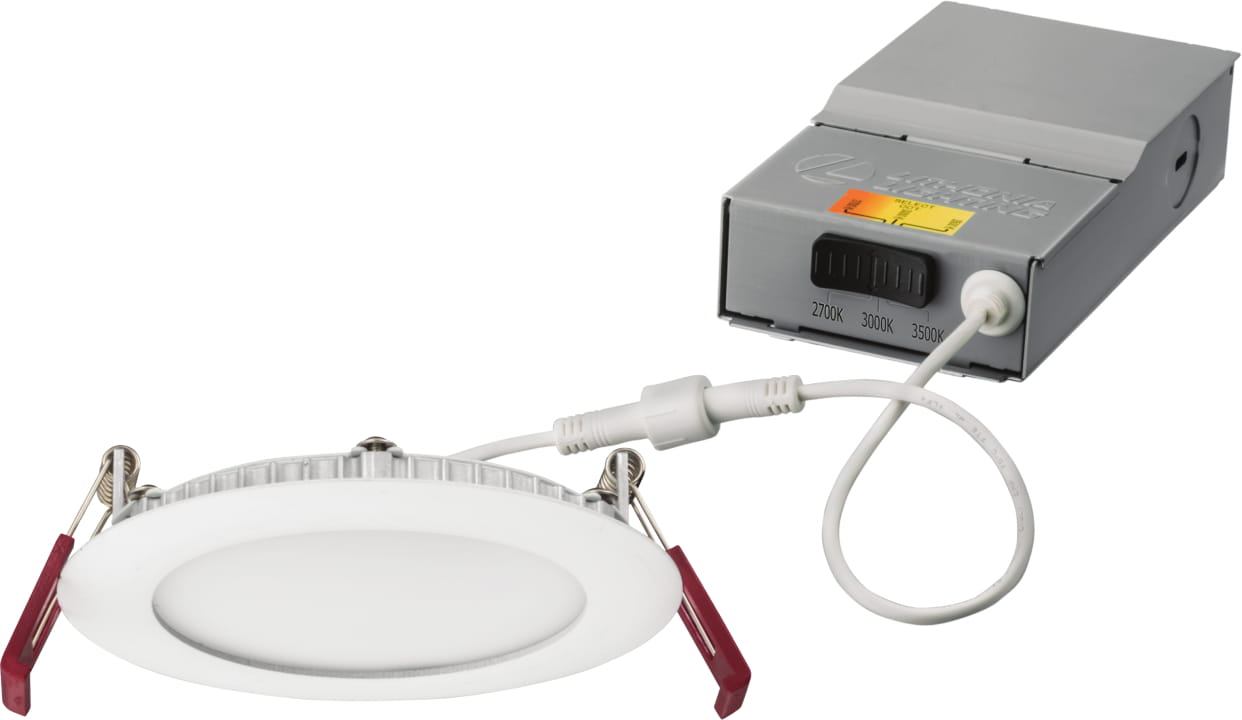

Canless Wafer Downlight

2", 4" and 6" LED Canless Downlight with Switchable White CCT & Adjustable Lumen Outputs, no housing required
    Switchable LumensSwitchable CCTsEnergy Star®CA Title 24/JA8
  • Overview
  • Specifications
Read More
Read Less
Size 2 IN, 4 IN, 6 IN
Shape Round
Light Source LED - Dynamic
Dynamic Feature Switchable White
Lumens 500 LM, 700 LM, 800 LM, 900 LM, 950 LM, 1050 LM, 1100 LM, 1300 LM, Switchable
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Variable
CRI 90
Product Type Downlight
Compliance Listing CA Title 24, ENERGY STAR®, FCC 47CFR Part 15 Consumer, JA8
Environmental Listing Air Loc, IC, Wet Location
Regulatory Listing CSAus, NOM
Dimming Protocol Forward Phase, Reverse Phase, Triac
Trim Style Baffle, Cone, Decorative, Lensed
Color Black, Bronze, Nickel, White
Mounting Type Recessed
Voltage Rating 120
Fixture Wattage 10, 14.5, 16
Lamp Base Not Applicable
Series WF6, WF4, WF2, WF2TRIM

Read More Read Less
